HYDRAULIC SYSTEM
M6040, M7040Narrow, WSM
N8-S12

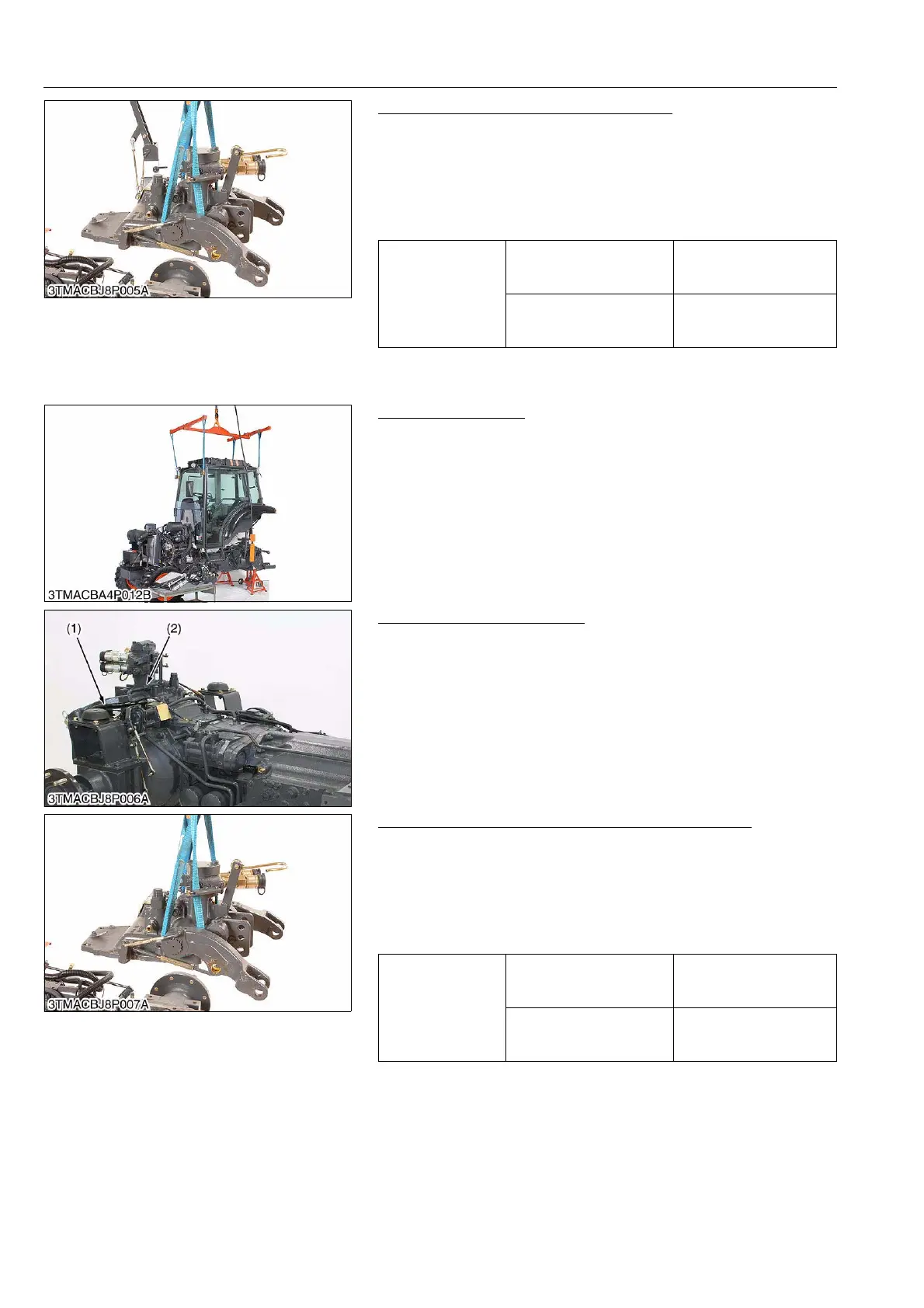

3-point Hitch Hydraulic Block Assembly
1. Remove the 3-point hitch hydraulic block mounting screws and
nuts.
2. Remove the 3-point hitch hydraulic block assembly.
(When reassembling)
• Apply liquid gasket (Three Bond 1206C or equivalent) to joint
face of transmission case and cylinder block.
9Y1210220HYS0017US0
(3) CABIN Model
Dismount the Cabin
1. Refer to the "[2] DISASSEMBLING AND ASSEMBLING" at
"N10. CABIN" section.
9Y1210220HYS0018US0
Hydraulic Cylinder and Pipe
1. Remove the cylinder hoses (1) and cylinder return hoses.
2. Remove the 3-point hitch delivery pipe (2).
9Y1210220HYS0019US0
Removing 3-point Hitch Hydraulic Block Assembly
1. Remove the 3-point hitch hydraulic block mounting screws and
nuts.
2. Remove the 3-point hitch hydraulic block assembly.
(When reassembling)
• Apply liquid gasket (Three Bond 1206C or equivalent) to joint
face of transmission case and cylinder block.
9Y1210220HYS0020US0
Tightening torque
3-point hitch hydraulic
block mounting screw
166.7 to 196.1 N·m
17.0 to 20.0 kgf·m
123.0 to 144.7 lbf·ft
3-point hitch hydraulic
block mounting nut
123.6 to 147.1 N·m
12.6 to 15.0 kgf·m
91.1 to 108.5 lbf·ft
(1) Cylinder Hose (2) 3-point Hitch Delivery PIpe
Tightening torque
3-point hitch hydraulic
block mounting screw
166.7 to 196.1 N·m
17.0 to 20.0 kgf·m
123.0 to 144.7 lbf·ft
3-point hitch hydraulic
block mounting nut
123.6 to 147.1 N·m
12.6 to 15.0 kgf·m
91.1 to 108.5 lbf·ft
