6.6 Entry of motor data for Lenze motors
 Note!
ƒ The following only describes the parameter setting for Lenze motors! (If you
use a motor from another manufacturer, see  132.)
ƒ If the Lenze setting has been loaded via C0002, the motor data must be
re−entered.
ƒ The freely available "GDC−Easy" does not provide the "Input assistant for
motor data" which is described in the following so that you must enter the
motor data manually (
 132).

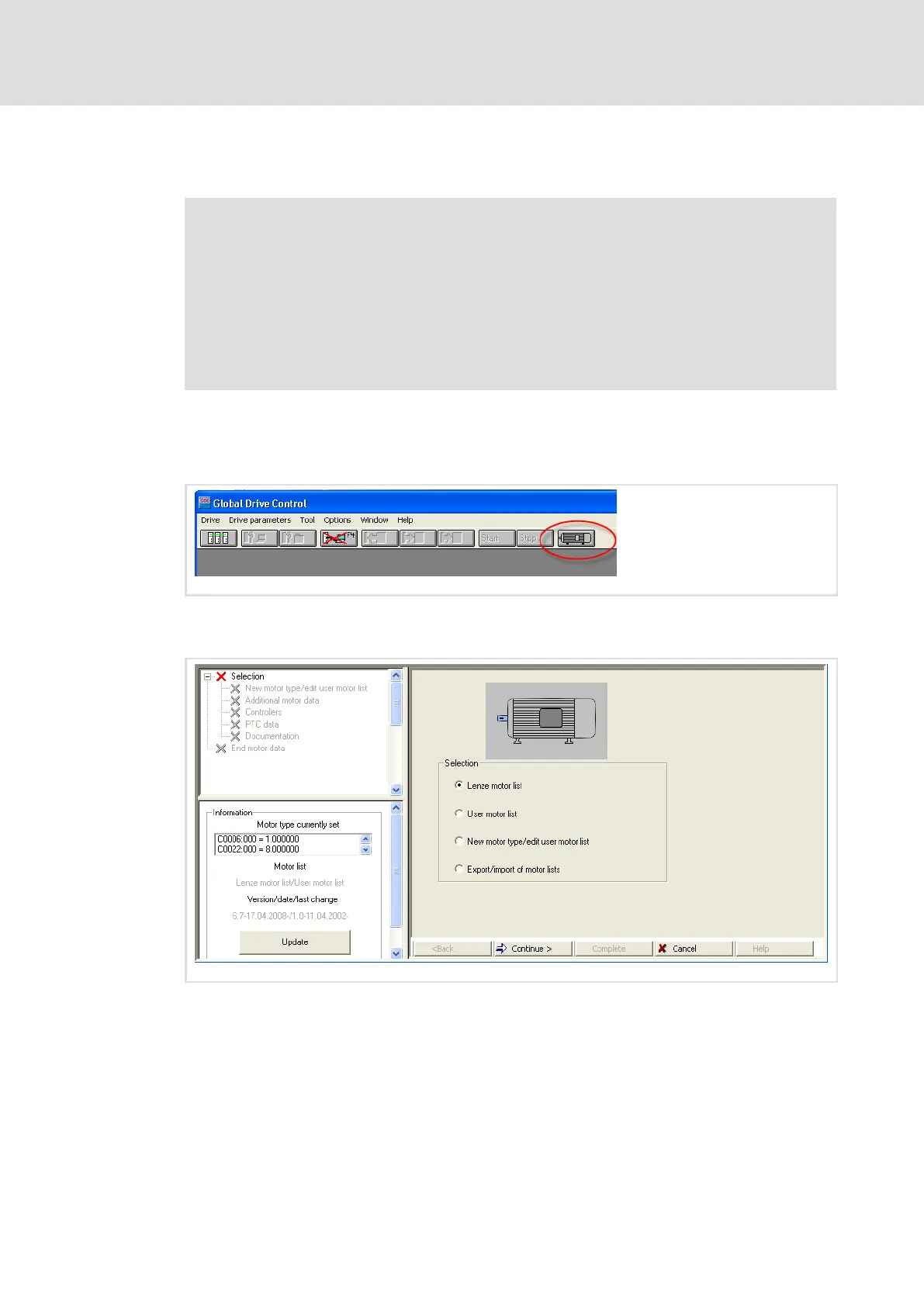

Parameter setting with the "Input assistant for motor data" of the GDC
1. Go to the GDC menu bar and select the Tool  Motor data menu item or click the
button with the motor symbol in the tool bar:
ECSXA300
Fig. 6−3 GDC view: menu bar and tool bar
– The "Input assistant for motor data" opens:
ECSXA311
Fig. 6−4 GDC view: Selection of motor list
2. Select the "Lenze motor list" and click the [ Continue ] button.
