13.2.2 Outputs_AIF1
This SB is used as an interface for output signals (e.g. setpoints/actual values) to attached
fieldbus modules (e.g. INTERBUS, PROFIBUS−DP).
The process image is
ƒ created in the cyclic task by means of a fixed set time interval of 10 ms.
ƒ created in an interval task within the time set for this task.
ƒ read at the beginning of the task and written at its end.
 Please read the documentation for the connected fieldbus module.
Byte
1
Byte
2
Byte
3
Byte
4
Byte
5
Byte
6
Byte
7
Byte
8
C0858/1
16 Bit
LowWord
16 Bit
HighWord
16 Bit
16 Bit
C0858/2
C0858/3
C0859
16 Bit
16 binary
signals
16 Bit
16 binary
signals
Outputs_AIF1
X1
AIF1_wDctrlStat
AIF1_nOutW1_a
AIF1_nOutW2__a
AIF1_bFDO0_b
AIF1_bFDO15_b
AIF1_nOutW3_a
AIF1_bFDO16_b
AIF1_bFDO31_b
…
…
AIF1_dnOutD1_p
ECSXA202

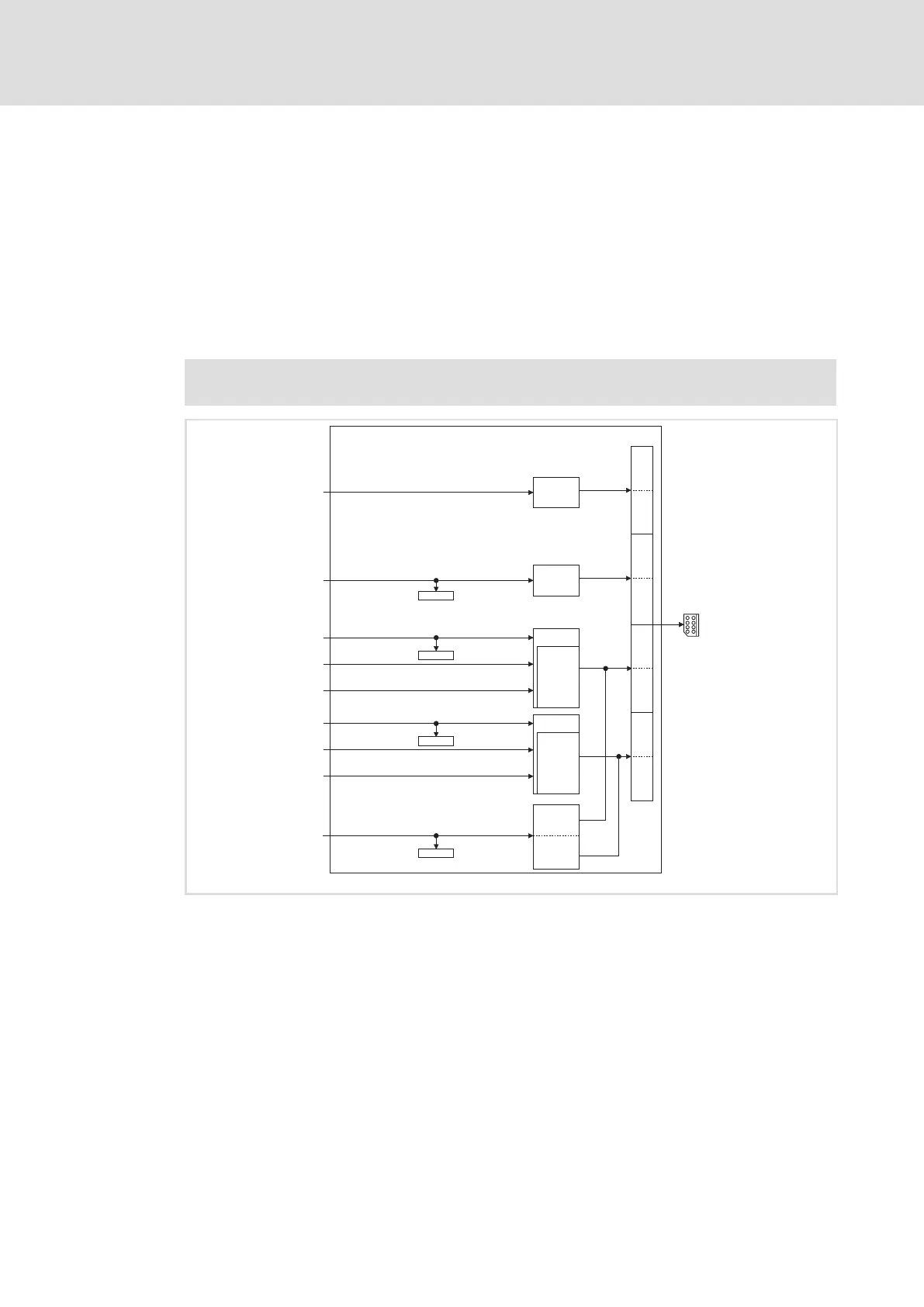

Fig. 13−4 System block "Outputs_AIF1"
