Lenze ECS series User Manual

System modules
AIF3_IO_AutomationInterface (node number 43)
Inputs_AIF3
13

271
EDBCSXA064 EN 3.2
13.4 AIF3_IO_AutomationInterface (node number 43)
13.4.1 Inputs_AIF3
This SB is used as an interface for input signals (e.g. setpoints/actual values) to the
attached fieldbus module (e.g. INTERBUS, PROFIBUS−DP).
The process image is
ƒ created in the cyclic task by means of a fixed set time interval of 10 ms.
ƒ created in an interval task within the time set for this task.
ƒ read at the beginning of the task and written at its end.
 Please read the documentation for the connected fieldbus module.
16 Bit
...
16 binary
signals
Byte
1
Byte
2
Byte
3
Byte
4
Byte
5
Byte
6
Byte
7
Byte
8
16 Bit
...
16 binary
signals
16 Bit
LowWord
16 Bit
HighWord
16 Bit
16 Bit
Inputs_AIF3
X1
AIF3_bInB0_b
AIF3_bInB15_b
AIF3_nInW1_a
AIF3_bInB16_b
AIF3_bInB31_b
AIF3_nInW2_a
AIF3_nInW3_a
AIF3_dnInD1_p
AIF3_nInW4_a
ECSXA205

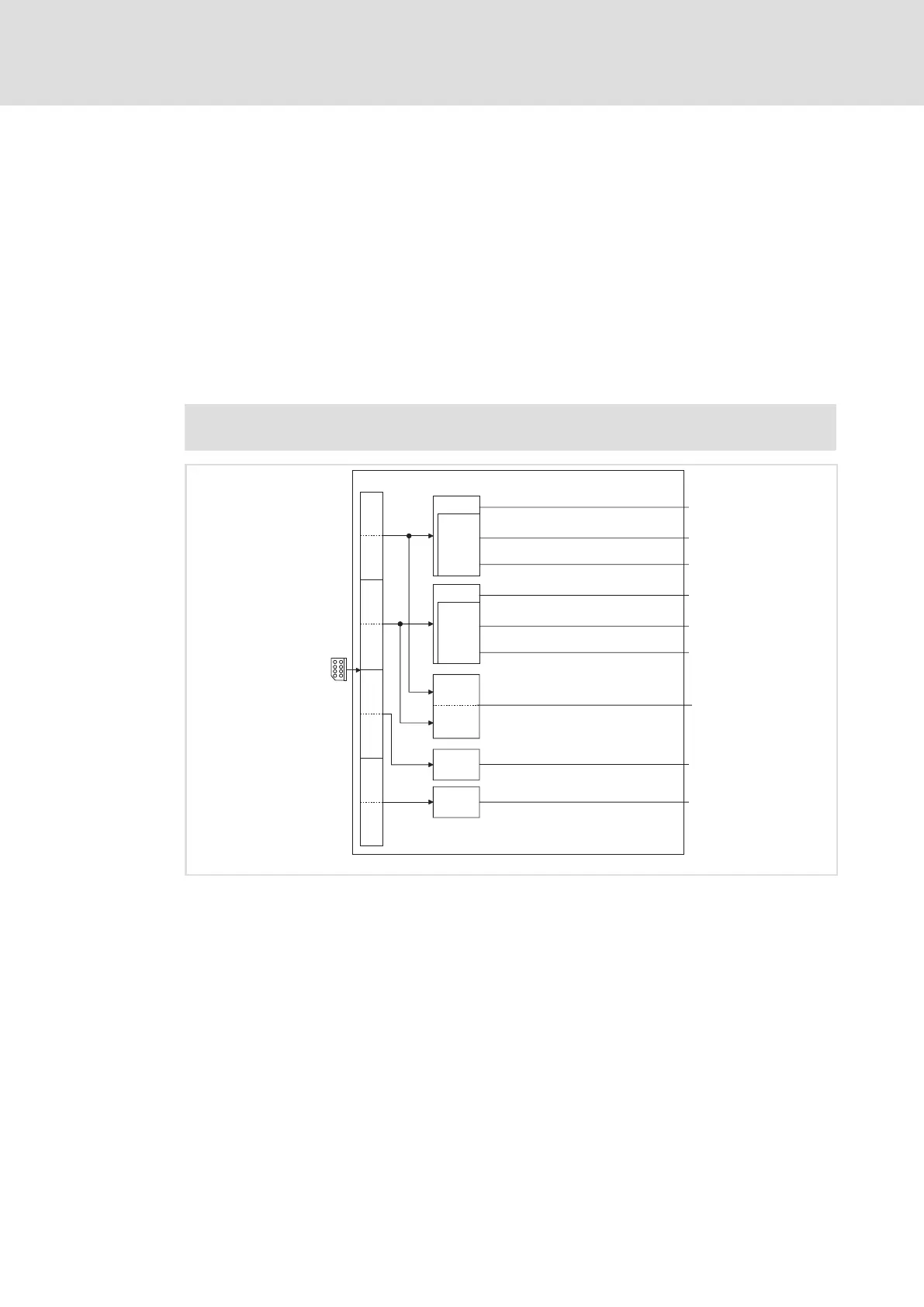

Fig. 13−7 System block "Inputs_AIF3"
