Lenze ECS series User Manual

Electrical installation
Power terminals
Motor connection
5

70
EDBCSXA064 EN 3.2
5.2.4 Motor connection
ECSXA010

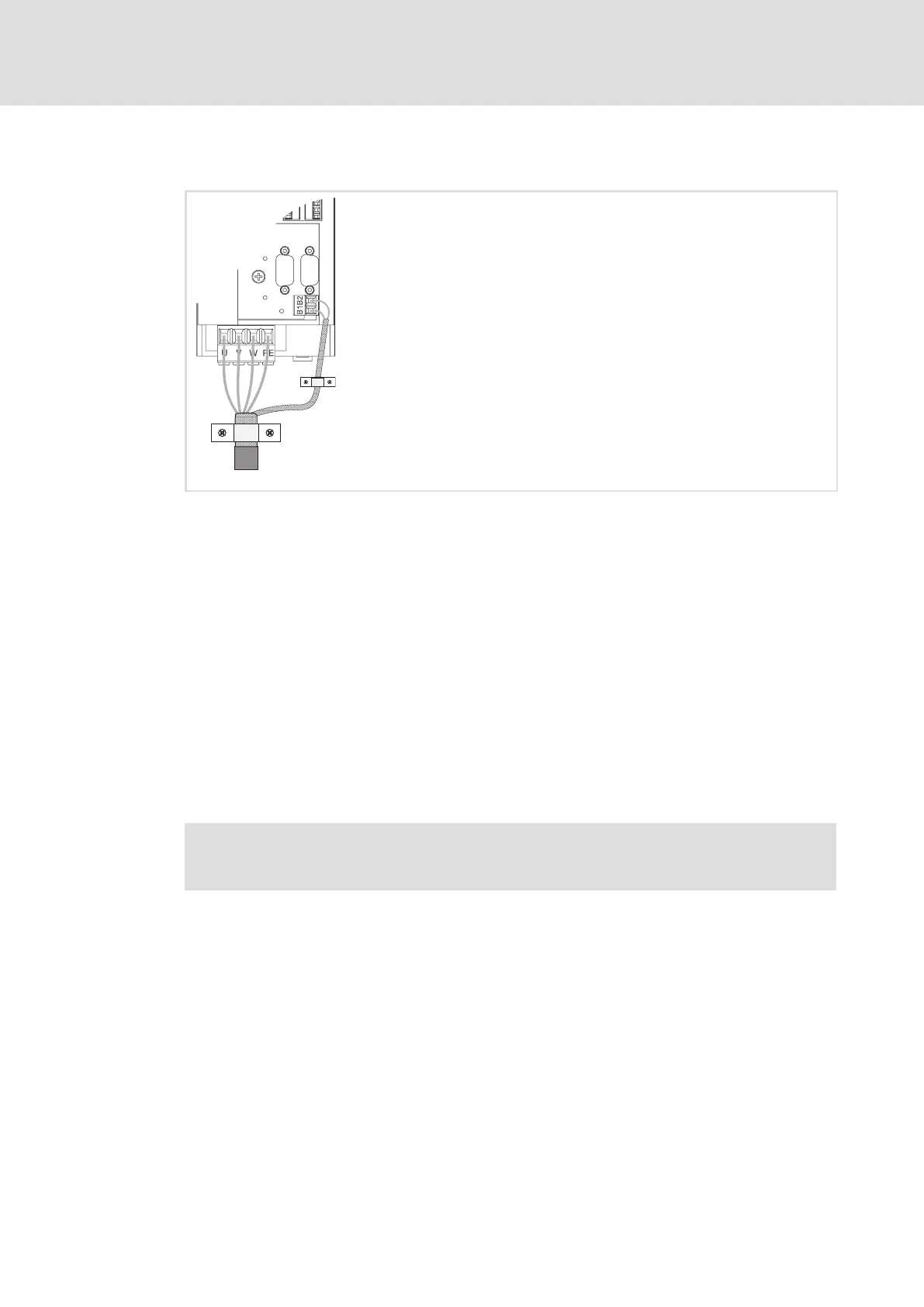

Fig. 5−4 Motor and motor holding brake connection
Motor cables
ƒ Use low−capacitance motor cables. Capacitance per unit length:
– Core/core: max. 75 pF/m
– Core/shield: max. 150 pF/m
ƒ Length: max. 50 m, shielded
ƒ The cross−section of the motor cables are selected according to the motor standstill
current (I
0
) when using synchronous motors or according to the rated motor current
(I
N
) for asynchronous motors.
ƒ Length of the unshielded ends: 40 ... 100 mm (depending on the cable cross−section)
ƒ Lenze system cables meet these requirements.
ƒ Use the ECSZS000X0B shield mounting kit for EMC−compliant wiring.
 Mounting instructions for ECSZS000X0B shield mounting
Here you can find more information on wiring according to EMC.
