Lenze ECS series User Manual

Parameter setting
Parameter setting with "Global Drive Control" (GDC)
7

149
EDBCSXA064 EN 3.2
7.2 Parameter setting with "Global Drive Control" (GDC)
With the "Global Drive Control" (GDC) parameterisation and operating program, Lenze
provides a plain, concise and compatible tool for the configuration of your
application−specific drive task with the PC or laptop:
ƒ The GDC input assistant offers a comfortable motor selection.
ƒ The menu structure supports the commissioning process by its clear structuring.
X14
0
1
L
3
2
4
5
ECSXA453

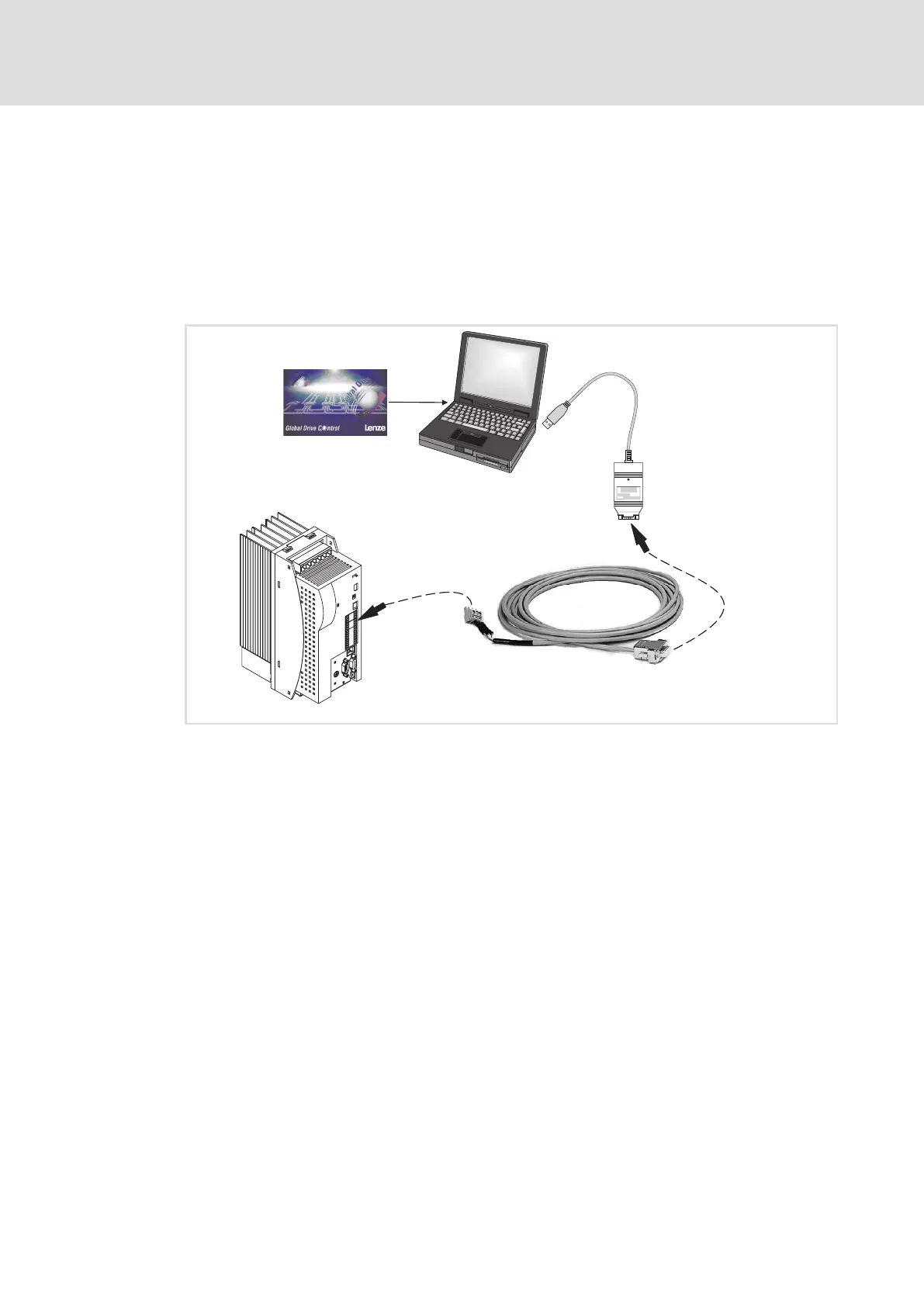

Fig. 7−1 Using the GDC
 Lenze parameter program "Global Drive Control" (GDC)
 PC or laptop
 PC system bus adapter (EMF2173IB/EMF2177IB) with connecting cable
 Sub−D plug with 3−pole cable
 3−pole plug (CAG ˘ CAL ˘ CAH) from ECSZA000X0B connector set
 ECSxS/P/M/A axis module
