Mindray TE5 User Manual

13-20 Probes and Biopsy

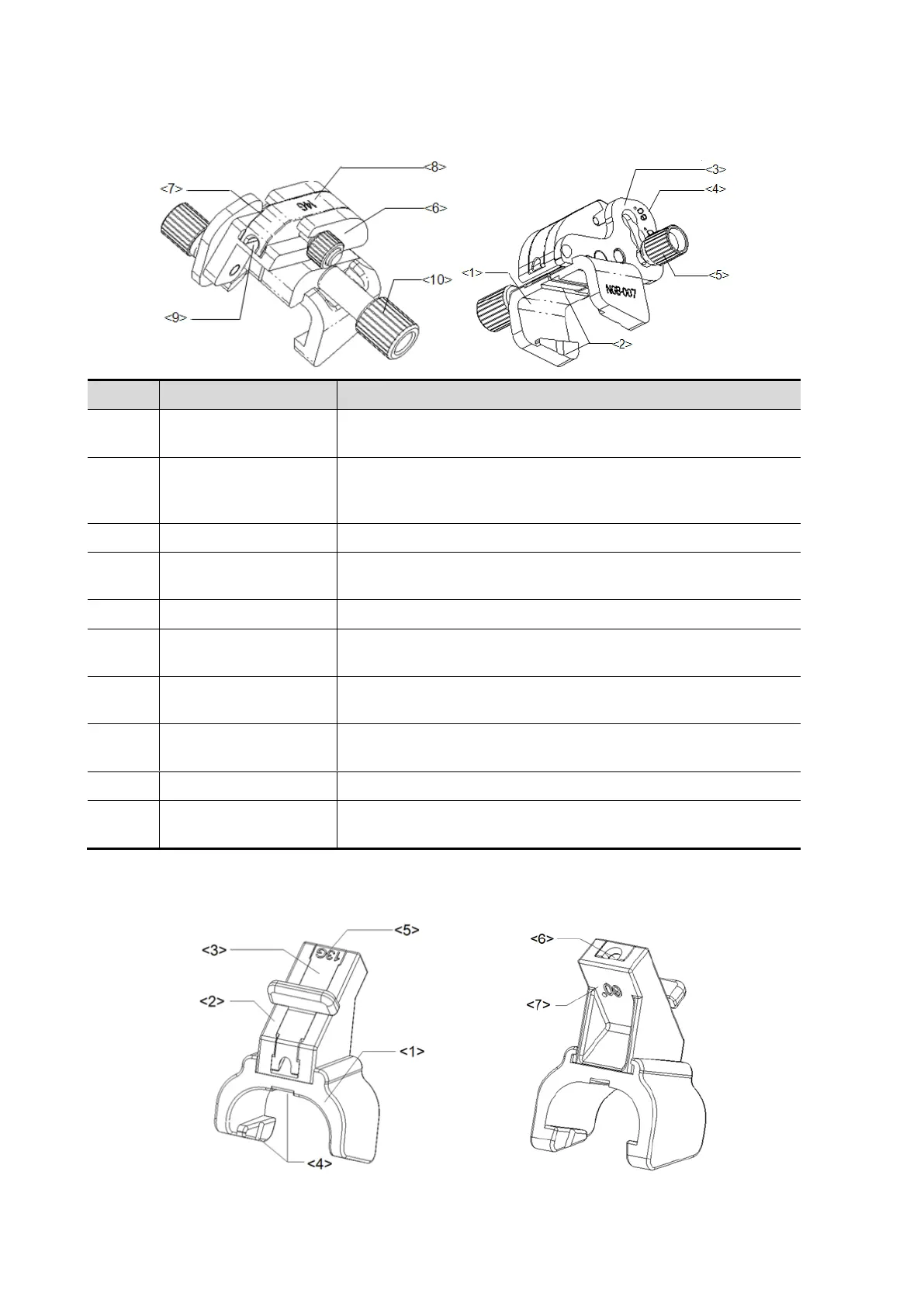

 NGB-007
Metal/needle detachable needle-guided bracket:
No.
Name
Description
<1>
Support for needle-
guided bracket
Used for installing the needle-guided bracket on the probe.
<2>
Tab and groove for
the needle-guided
bracket
Corresponding to the tab and groove of the probe.
<3>
Angle-adjusting base
There are 3 types of angles available for adjustment.
<4>
Angle shift sign
(40°, 50°, 60°)
Corresponding to the biopsy angle (40°, 50° and 60°).
<5>
Angle pinch nut
Used for fixing the angle lock at a chosen angle.
<6>
Angle block
Used for determining the angle of the biopsy. Different
specifications of blocks can be used.
<7>
Guiding block
Used for installing biopsy needles. There are five guiding
block specification for different biopsy needles.
<8>
Guiding block
specification (14G)
Matched with the corresponding biopsy needle (14G).
<9>
Needle guide hole
Used for installing the biopsy needle.
<10>
Needle-guided
bracket pinch nut
Used for locking the needle-guided bracket and the probe.
Plastic/needle detachable needle-guided bracket:
