Probes and Biopsy 13-29
NGB-007

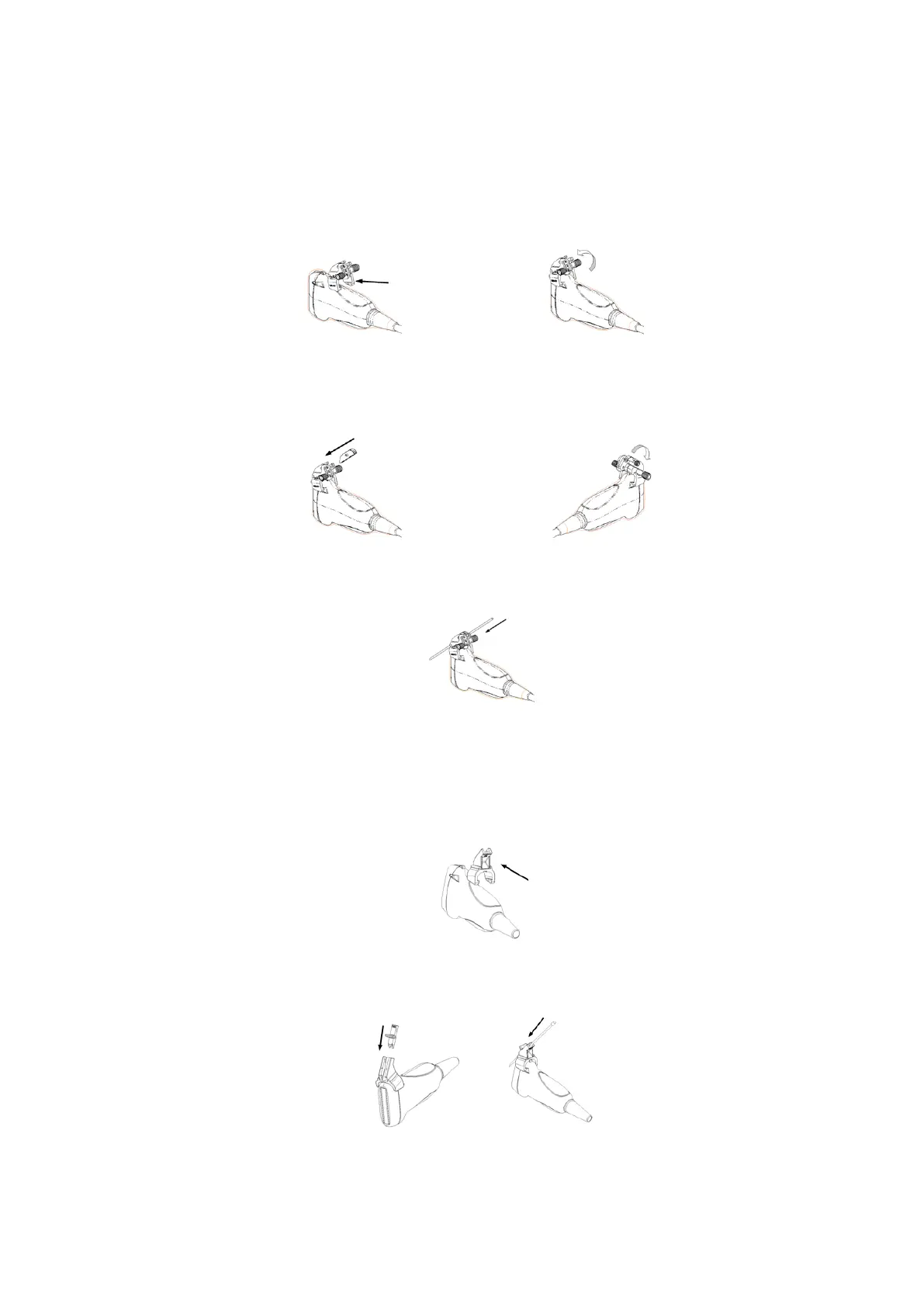

Metal/needle detachable needle-guided bracket:
1. Put the sterile probe sheath on.
2. Hold the probe in one hand, select the correct needle-guided bracket and hold it with the other
hand. Match the groove and tab with the tab and groove of the probe respectively. Mount the
bracket onto the probe.
3. Screw the pinch nut of the needle-guided bracket to ensure that the needle-guided bracket is
properly installed on the probe.
4. Select a suitable guiding block and push it into the groove above the angle block, then clamp it
tightly.
5. Screw the block's nut to secure the block.
6. Insert a biopsy needle with the same specification as that of the guiding block into the guiding
block hole.
Plastic needle-guided bracket:
1. Put the sterile probe sheath on.
2. Hold the probe in one hand, select the correct needle-guided bracket and hold it with the other
hand. Align the tab at the narrow end of the needle-guided bracket with the groove of the
probe, then push the needle-guided bracket forward, so the tabs and grooves of the needle-
guided bracket align with the grooves and tabs of the probe.
3. Check manually to confirm that the needle-guided bracket is securely installed on the probe.
4. Select a suitable guiding block and push it into the groove above the angle block, then clamp it
tightly.
5. Insert a biopsy needle with the same specification as that of the guiding block into the guiding
block hole.
To Next Page
