NETGEAR ProSafe XS728T User Manual

Configure Routing
183
ProSAFE 10-Gigabit Smart Managed Switch XS728T and XS748T User Manual

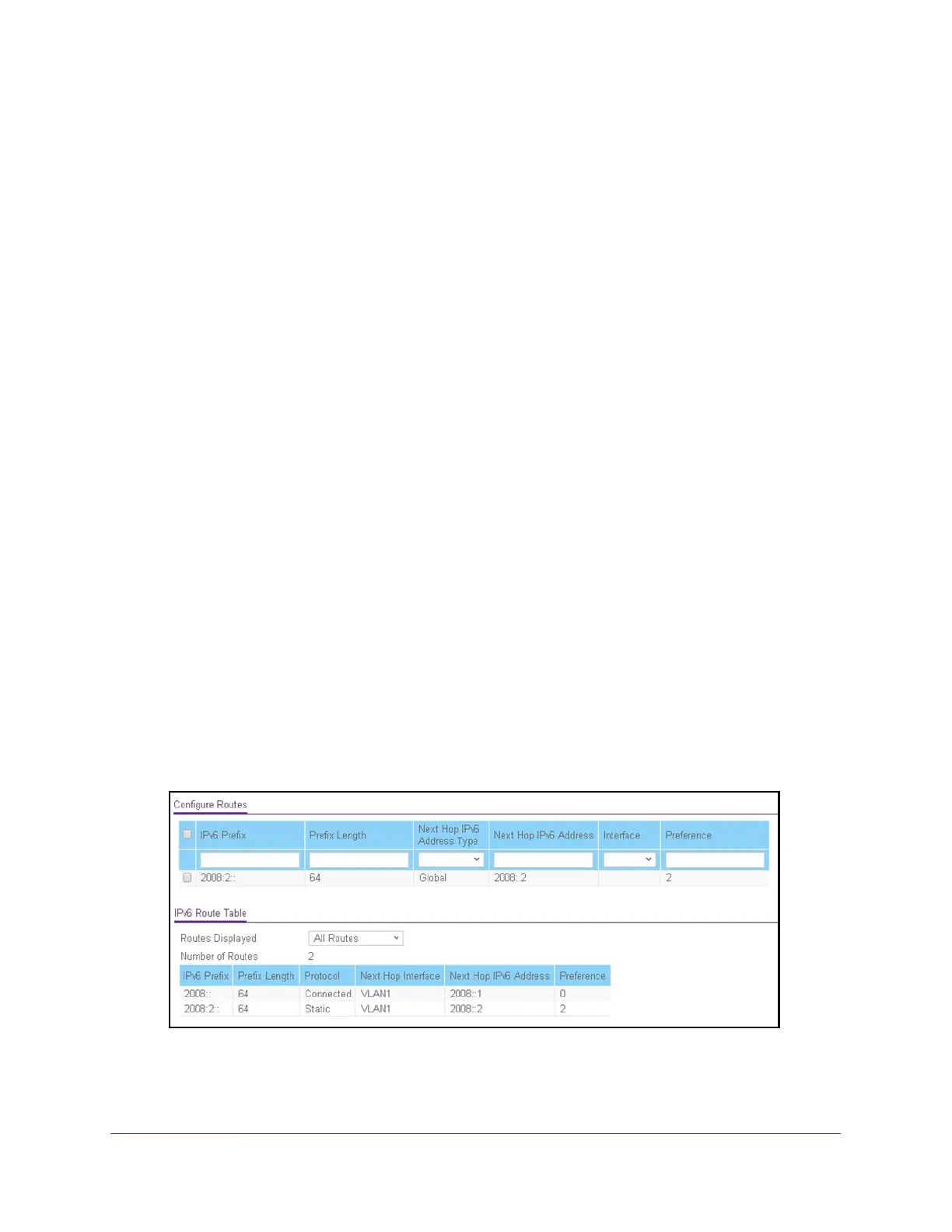

5. Select Routing> IPv6 > Basic > Route Table.
The Configure Routes page displays. The page also shows the IPv6 Route Table.
6. In the table in the Configure Routes section, select the check boxes for the static IPv6
routes.
7. Click the Delete button.
The routes are removed from the switch.
View the IPv6 Route Table
The IPv6 Route Table contains IPv6 routes that were statically added, IPv6 routes that were
discovered through the Neighbor Discovery (ND) protocol, and IPv6 routes that were derived
from manually added IPV6 addresses.
 To view the IPv6 Route Table:
1. Connect your computer to the same network as the switch.
You can use a WiFi or wired connection to connect your computer to the network, or
connect directly to a switch that is off-network using an Ethernet cable.
2. Launch a web browser.
3. In the address field of your web browser, enter the IP address of the switch.
If you do not know the IP address of the switch, see Change the Default IP Address of the
Switch on page 10.
The login window opens.
4. Enter the switch’s password in the Password field.
The default password is password.
The System Information page displays.
5. Select Routing> IPv6 > Basic > Route Table.
6. To specify which type of routes to display in the IPv6 Route Table, from the Routes
Displayed menu, select one of the following options:
• All Routes. Show all active IPv6 routes.

NETGEAR ProSafe XS728T Specifications

General

Model	XS728T
Category	Switch
Switching Capacity	560 Gbps
Forwarding Rate	417 Mpps
Ports	24 x 10G SFP+, 4 x 10G Base-T
Management	Web-based, SNMP
Features	ACLs, QoS
Power Supply	Internal 100-240VAC, 50-60Hz
Operating Temperature	0°C to 50°C (32°F to 122°F)
Operating Humidity	90% maximum relative humidity, non-condensing
MAC Address Table Size	32, 000 entries

Summary

Get Started

Switch Management Interface Overview

Provides an overview of how to configure, monitor, and control the network using the web-based management interface.

Change the Default IP Address of the Switch

Explains how to change the default IP address of the switch for remote management via web browser or SNMP.

Access the Web Browser–Based Management Interface

Details how to access the switch's web-based management interface using a web browser.

Configure System Information

View and Configure the Switch Management Settings

IP Configuration

Explains how to configure network information for the management interface.

IPv6 Network Configuration

Configure SNMP

Configure DHCP Snooping

Describes DHCP snooping for filtering untrusted DHCP messages and building a binding table.

Configure Switching

Configure Port Settings and Flow Control

Explains how to configure global flow control for ports and monitor individual port information.

Configure Link Aggregation Groups

Configure VLANs

Describes adding VLAN support for network segmentation, administration, and security.

Configure Spanning Tree Protocol

Configure Multicast

Configure Routing

Configure IP Settings

Details how to configure routing settings for the switch.

Configure VLAN Routing

Explains how to configure VLANs to support routing and inter-VLAN communication.

Manage IPv4 Routes

Configure Address Resolution Protocol

Configure IPv6

Details IPv6 support, including global settings, routes, and VLAN interface configurations.

Configure Quality of Service

Manage Class of Service

Manage Differentiated Services

Manage Device Security

Management Security Settings

Configure Port Authentication

Details 802.1X port access control, guest VLANs, and EAPoL support.

Set Up Traffic Control

Configure Private VLANs

Configure Access Control Lists

Describes creating and applying ACLs for traffic flow control and network security.

Maintenance

Reboot the Switch

Explains how to reboot the switch.

Reset the Switch to Its Factory Default Settings

Describes how to reset the system configuration to factory default values.

Troubleshooting

Provides tools for diagnosing network issues, including ping and traceroute.
