Key
to
Fig 12:7
1 Upholstery
attaching scÍews
2 Lower trim
bar attaching screws
Refitting:
The
Íitting
of
the rear window is the
same as
that for
the
wrndscreen
but
it is
only
necessary to
use one string.
A section oÍ the
glass
and seal can be seen
in
FIG
12:6.
12

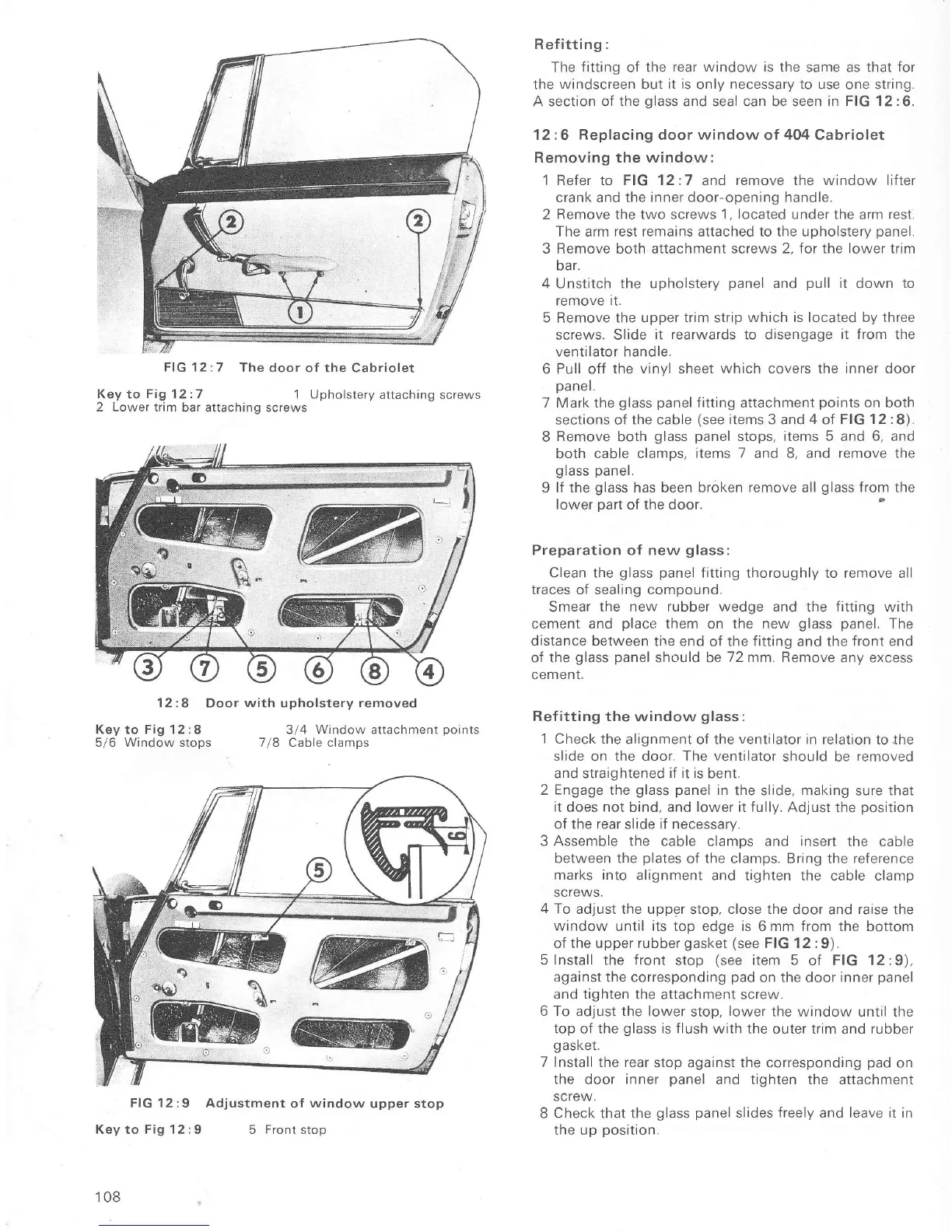

:6 Replacing door window
of
404
Cabriolet
Removing the window:
1 Refer to FIG 12:7
and
remove the window liÍter
crank and the
inner
door-opening
handle.
2
Remove the two screws 1, located under the
arm
rest.
The arm rest remains attached to the upholstery
panel.
3 Remove both. attachment
screws 2. for the lower trim
bar.
4 Unstitch the upholstery
panel
and
pull
it
down
to
remove
it.
5 Remove the upper
trim
strip
which is located by thÍee
screws.
Slide
it
rearwards
to disengage
it from the
ventilator handle.
6 Pull off
the vinyl
sheet
which covers the
inner
door
oanel.
7 Mark the
glass
panel
Íitting
attachment
points
on
both
sections
of the cable
(see
items
3 and
4
of FIG
1 2 :
8).
8
Remove
both
glass panel
stops, items 5 and
6,
and
both cable clamps,
items 7
and
8,
and
remove the
grass
paner.
9
lf the
glass
has
been broken
remove
all
glass
Írom
the
lower
part
of the door.
Preparation of new
glass:
Clean the
glass
panel
fitting thoroughly to remove all
traces of sealing compound.
Smear
the new rubber wedge
and the
fitting
with
cement and
place
them on the new
glass panel.
The
distance between
ti-re end
of
the fitting
and
the front end
of the
glass
panel
should be
72 mm. Remove
any excess
cement.
Ref itting
the window
glass:
1
Check the
alignmenï of the
ventilator
in relation to the
slide on the door. The ventilator
should be
removeo
and straightened
if it
is bent.
2 Engage the
glass panel
in
the slide,
making
sure that
it
does
not
bind, and
lower it fully.
Adjust the
positron
of the rear
slide
if necessary.
3 Assemble the cable
clamps
and insert
the cable
between the
plates
oÍ
the
clamps.
Bring
the
reÍerence
marks into alignment
and tighten the cable
clamp
screws.
4
To adjust the upper
stop,
close the
door and
raise
the
window
until
its
top edge is 6 mm from the
bottom
of
the upper rubber
gasket (see
FIG 1 2 :9).
5lnstall the front
stop
(see
item 5
oÍ FIG
12:9),
against
the corresponding
pad
on the door inner
panel
and tighten the
attachment screw.
6 To adjust the lower
stop,
lower
the window until the
top
of
the
glass
is flush
with the outer trim and rubber
gasket.
7 Install
the Íear
stop
against the
corresponding
pad
on
the
door
inner
panel
and tighten the attachment
screw.
8 Check that the
glass panel
slides
freely
and
leave
it in
the uD oosition.
Key to Fig 12 :8
5/6 Window stops
Key
to
Fig 12 :9
108
3/4
Window attachment
points
7/8 Cable clamps
FIG 12:9 Adjustment
of
window
uppêr
stop
FIG
12:7 The door
of
the
Cabriolet
12:8 Door
with
upholstery
removed
5
Front
stop
