Disconnect the
cable
from
the carbuÍetter
and
remove
the sheath.
4 Disconnect the
electrical
wires from
the Conac
(accelerator
cable double
switch).
5 Remove the Conac assembling nuts which
also act
as connection
terminals,
but
do
not remove the rubber
washers Írom the studs.
6
Remove the
cable and
Conac, holding it
by
the
centre
prece (see
FIG
5:10),
7
Replace the cable,
the
spring and
the
connection
in
the order shown in FIG 5 :11.
8 Pull the cable until
the contact comes
into its
location
grooves,
making
sure that the
contacl
resting
spring is correctly fitted
into its Íecesses.
.9
Bring
the
switch
into
the bottom
of the casing
and
hold it in this
position
with
a
cable clip
(see
FIG
5;12). Care must
be taken not to
distort the
cabte
with
the clio,
10Install
the whole
assembly onto the
Conac base,
engaging the cable
arrester through the
centre oÍ the
base.
Refit
the washers
and tighten the
assembling
nuts. Remove the
cable clip.
@*---rs
s-_,
13
l4
1q
l\r==
}\:-\s:/''
--
-\_--
21
2_
1O----_-
11

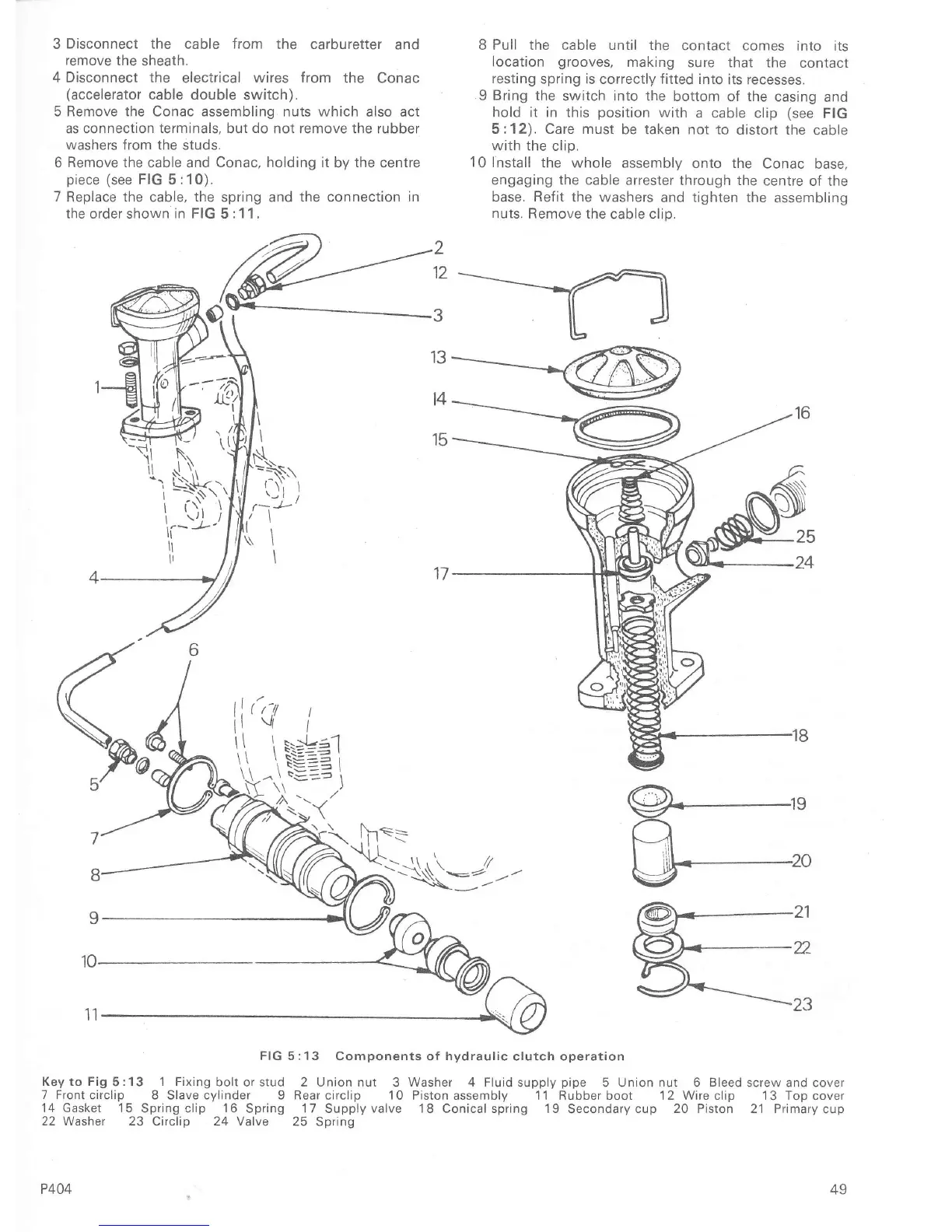

FIG 5 :1 3 Components of hydraulic
clutch operation
KeytoFig6:13 lFixingboltorstud2Unionnut3Washer4Fluidsupplypipe5Unionnut6Bleedscrewandcover
7
Front
circlip 8 Slave cylinder 9 Rear
circlip
10
Piston assembly 11 Rubber boot 12 Wire clip
'1
3
Top cover
14 Gasket
'15
Spring clip
16
Spring 17 Supply valve 18 Conical spring 19
Secondary
cup 20 Piston 21 Primary
cup
22 Washer 23 Circlip 24
Yalve 25 Spring
