PEUGEOT 404 User Manual

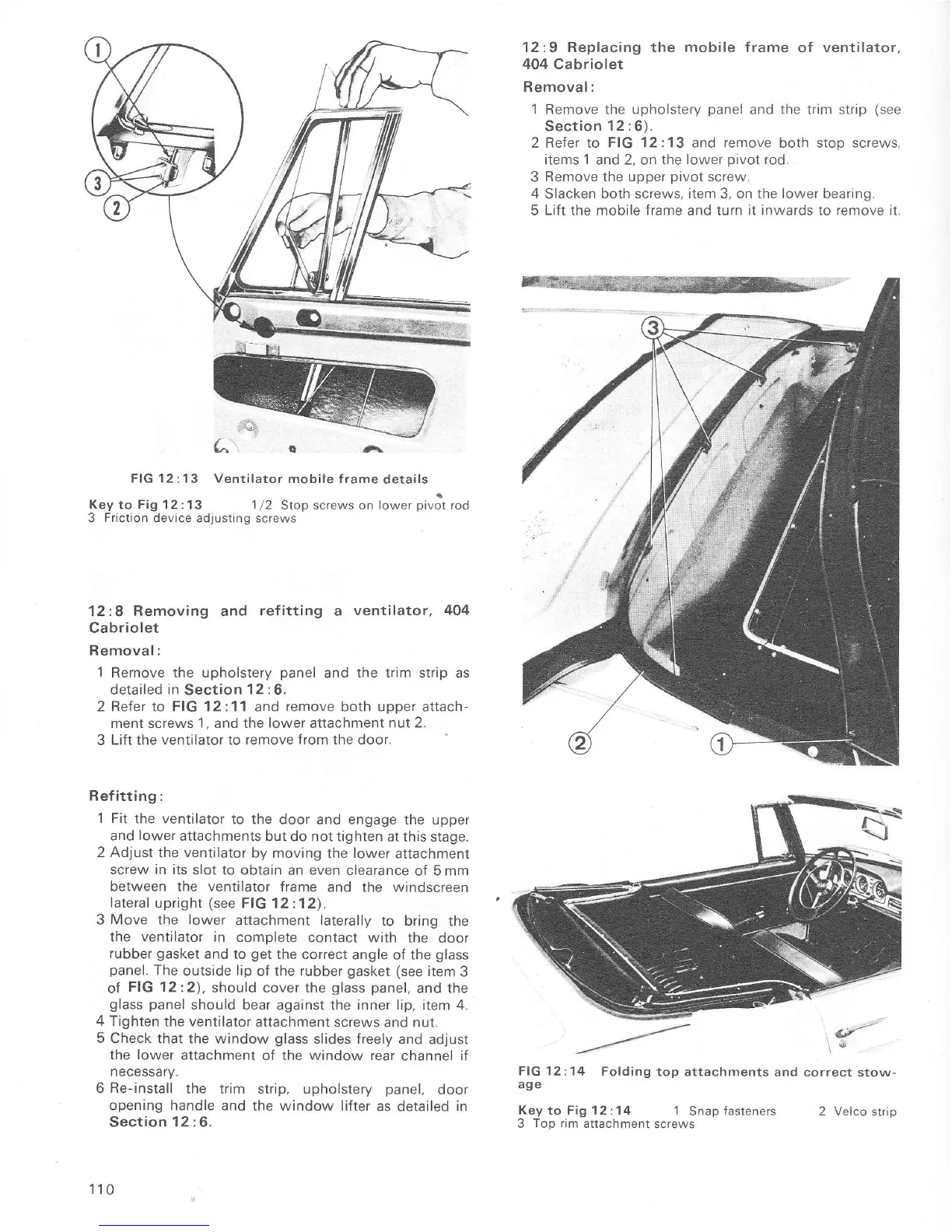

FIG 12:13 Ventilator
mobife frame
details
a
Key
to
Fig 12
:13 1/2
Stop
screws
on
lower
pivot
rod
3
Friction
device adjusting screws
12
:8 Removing and
Cabriolet
refitting
a
ventilator,
404
Removal:
1
Remove
the
upholstery
panel
and
the trim
strip as
detailed
in
Section
12 :6.
2 Refer to FIG 12:11
and
remove both upper attach-
ment screws
1,
and the
lower
attachment
nut 2.
3
LiÍt the ventilator to remove
from
the door,
Ref itting:
1 Fit
the ventilator
to the door
and
engage
the upper
and
lower
attachments
but do not tighten
at this stage,
2 Adjust
the
ventilator
by
moving the lower
attachment
screw in its
slot to obtain
an
even
clearance
of 5 mm
between the
ventilator
frame and
the
windscreen
lateral
upright
(see
FIG 12:12).
3 Move
the
lower
attachment laterally
to bring the
the ventilator in
complete
contact with
the door
rubber
gasket
and
to
get
the correct
angle of the
glass
panel.
ïhe
outside
lip
oÍ
the rubber
gasket (see
item
3
oÍ
FIG 12:2),
should cover the
glass panel,
and the
glass panel
should bear
against
the inner lip, item
4.
4
Tighten the ventilatoÍ
attachment
screws and nut.
5
Check that the window
glass
slides Íreely and
adjust
the lower
attachment
oÍ the
window
rear
channel if
necessaÍy.
6
Re-install
the
trim stÍip, upholstery
panel,
door
opening handle and
the window lifter
as detailed in
Section
12 :6.
110
12:9 Replacing the
mobile
frame
of
ventilator,
404 Cabriolet
Removal:
1 Remove the upholstery
panel
and
the trrm strip
(see
Section
12 :6).
2 Refer to FIG
12:13
and
remove
both stop screws,
items 1
and 2, on
the lower
pivot
rod.
3
Remove
the
upper
pivot
screw.
4
Slacken
both screws. item 3, on the
lower
bearing.
5
LiÍt the mobile frame
and
turn it inwards to remove it.
FIG 12:14
Folding
top attachments
and correct stow-
age
Keyto Fig12:14
1
Snapfasteners
3 Top rim attachment
screws
Itr
.{l'-'
2 Velco
strip
