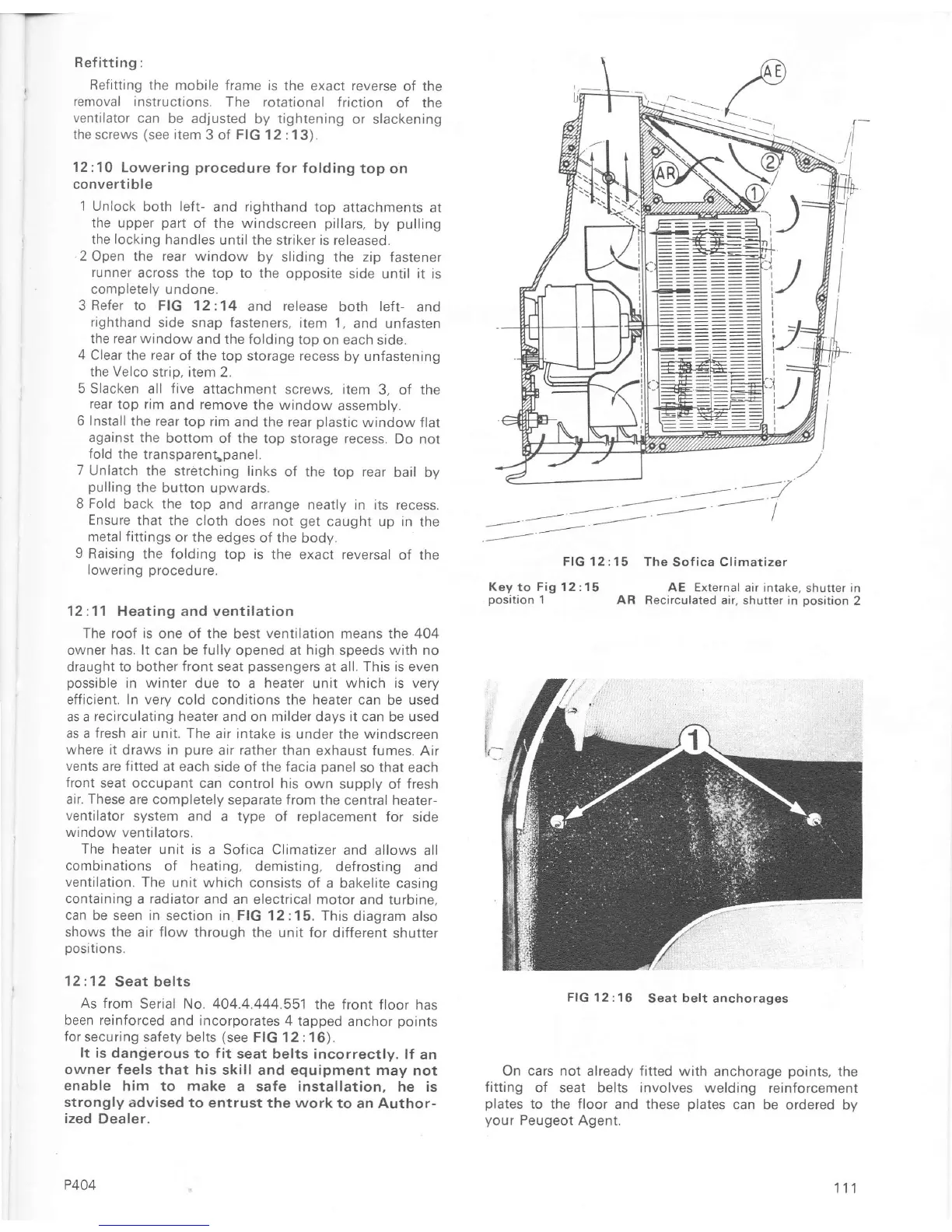

Ref itting:
Refitting
the mobile frame
rs the
exact
reverse
of the
removal instructions.
The rotattonal f
riction
oí the
ventilator
can be
adjusted by tightening
or sÍackening
the
screws
(see
item
3 of FIG 12:13).
12:10
Lowering
procedure
for folding
top
on
convertible
1 Unlock
both
left-
and righthand
top attachments
at
the upper
part
of the windscreen
pillars,
by
pulling
the
locking
handles untrl the
striker is released.
2 Open the rear window
by sliding the zip Íastener
runner
across the top to the
opposite side
until
it
is
completely undone.
3 ReÍer to FIG 12:14
and
release
both
left-
ano
righthand
side snap
íasteners,
item 1,
and
unfasten
the rear window
and the folding
top
on each side.
4
Clear the rear
of the top storage recess
by unfastening
the Velco
strip, ltem 2.
5
Slacken all
five
attachment
screws. item
3.
oÍ
the
reaÍ
top rim
and
remove
the window
assemblV.
6
Install
the
rear
top rim
and the rear
plastic
window flat
against the
bottom of the top
storage recess. Do
not
Íold
the
transparenLpanel.
7
Unlatch
the strètching links
of the top rear
bail by
pulling
the
button upwards.
8
Fold
back
the top
and
arrange neatly in its recess.
Ensure
thaï the cloth
does not
get
caught up in
the
metal fittings
or the edges
oÍ the
body.
9 Raising
the
folding
top is
the exact reversal
of the
lowering
procedure.
12:11 Heating and ventilation
The roof is
one
of the
best
ventilation
means
the 404
owner
has.
lt can be
fully
opened at high speeds with no
draught
to
bother
front seat
passengers
at all.
This is even
possible
in winter due to a heater
unit
which is very
efficient. In very
cold conditions the heater can be used
as a
recirculating heater
and on milder days
it
can be used
as
a
fresh
air unit. The
air intake is
under the
windscreen
where it
draws
in
pure
air ratheÍ than
exhaust fumes.
Air
vents
are
Íitted
at each
side oÍ the facia
panel
so that each
Íront
seat
occupant can control
his own
supply oÍ fresh
air. These
are completely
separate from the
central heater-
ventilator
system and a type
of replacement for
side
wrndow
ventilators.
The
heater unit is
a Sofica Climatizer
and allows
all
combinations
of
heating,
demisting,
deÍrosting
and
ventilation. The
unit which
consists
oÍ a bakelite casing
containing
a
radiator
and
an electrical motor and turbine,
can
be seen in
section
in FIG
12:15. This
diagram
atso
shows
the
air flow through
the unit for
different shutter
positions.
12:12
Seat belts
As from
Serial No. 404.4.444.551
the front
floor nas
been reinforced
and incorporates 4
tapped
anchor
points
íor
securing
safety belts
(see
FIG 12:16).
It
is dangerous
to
fit
seat
belts incorrectly. lf
an
owner Íeels
that
his
skill
and equipment
may
not
enable
him to make a
safe installation, he is
strongly
advised to
entrust the work
to an Author-
ized
Dealer.
P404
FIG 12 :15
The
Sof
ica
Climatizer
Key to
Fig
1 2 : 1
5
AE
External air intake,
shutler in
posation
1
AR
Recirculated air, shutter in
position
2
FIG
12:16
Seat
belt anchorages
On cars not already
fitting
of seat belts
plates
to the floor
and
your
Peugeot Agent.
