Chapter 1 Getting Started
ViewStation FX/VS 4000 User’s Guide 14 www.polycom.com

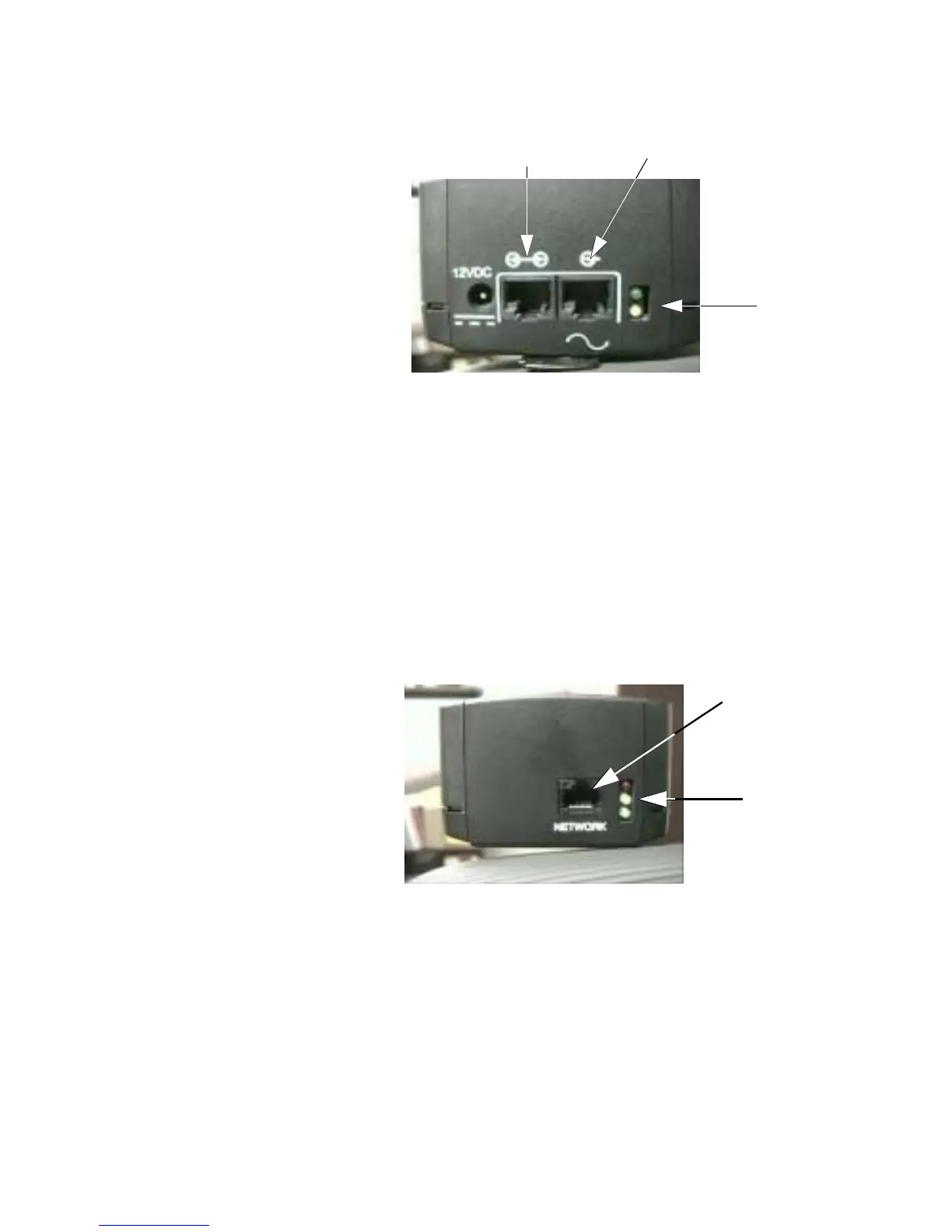

Figure 1-3. PRI Network Interface Module (PLINK side)
Connecting the PRI Network Interface Module to the ISDN
PRI Network
To connect the network interface module to the ISDN PRI network:
1. Attach your existing RJ-45 network cable from your ISDN PRI
network to the connector labeled NETWORK on the PRI
network interface module.
Figure 1-4 shows the NETWORK side of the PRI network interface
module that connects to the ISDN PRI network.
Figure 1-4. PRI Network Interface Module (NETWORK side)
An RJ-45 crossover cable might be required when connecting the
PRI network interface module to a PBX or other third-party network
access device.
If you have an in-service PRI line, connect the PRI interface module
to an external 12 VDC power source before plugging the PRI line
into the ViewStation FX or VS4000.
Port
(not used)
Input Port
LEDs
NETWORK
Connector
LEDs
