12.5 Timer RD Interrupt, Clock Synchronous Serial I/O with Chip Select Interrupts
and I
2
C bus Interface Interrupts (Interrupts with Multiple Interrupt Request
Sources)
Timer RD (channel 0), timer RD (channel 1), clock synchronous serial I/O with chip select and I
2
C bus interface
have several interrupt request sources and an interrupt request is generated by the logical OR of several interrupt
request sources and the logical OR is reflected in the IR bit in the interrupt control register. Therefore, these
peripheral functions which have the status register of its own interrupt request sources (status register) and the
enable register of the interrupt request sources (enable register) control the generations of the interrupt request
(change of the IR bit in the interrupt control register). Table 12.8 lists the Registers Associated with Timer RD
Interrupt, Clock Synchronous Serial I/O with Chip Select Interrupt, and I
2
C bus Interface Interrupt and Figure
12.19 shows the Block Diagram of Timer RD Interrupt.

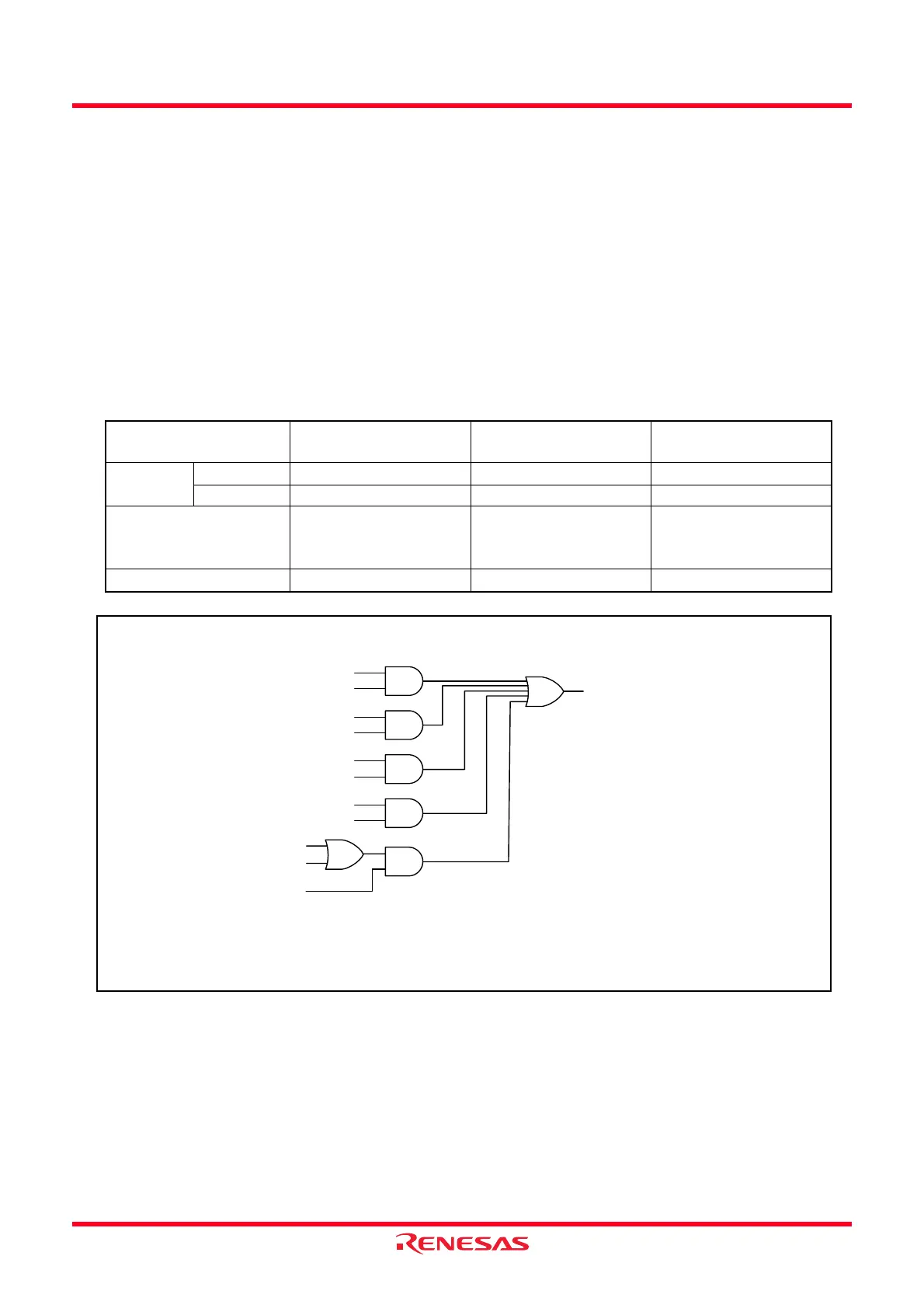

Figure 12.19 Block Diagram of Timer RD Interrupt
Table 12.8 Registers Associated with Timer RD Interrupt, Clock Synchronous Serial I/O with
Chip Select Interrupt, and I
2
C bus Interface Interrupt
Status Register of
Interrupt Request Source
Enable Register of
Interrupt Request Source
Interrupt Control
Register
Timer RD Channel 0 TRDSR0 TRDIER0 TRD0IC
Channel 1 TRDSR1 TRDIER1 TRD1IC
Clock Synchronous
Serial I/O with Chip
Select
SSSR SSER SSUIC
I
2
C Bus Interface
ICSR ICIER IICIC
Timer RD (channel i)
Interrupt request
(IR bit in TRDiIC register)
IMFA bit
IMIEA bit
IMFB bit
IMIEB bit
IMFC bit
IMIEC bit
IMFD bit
IMIED bit
UDF bit
OVF bit
OVIE bit
i = 0 or 1
IMFA, IMFB, IMFC, IMFD, OVF, UDF: Bits in TRDSRi register
IMIEA, IMIEB, IMIEC, IMIED, OVIE: Bits in TRDIER register
Channel i
To Next Page
