R8C/20 Group, R8C/21 Group 5. Resets

Rev.2.00 Aug 27, 2008 Page 22 of 458

REJ09B0250-0200

Table 5.2 lists the Pin Functions after Reset, Figure 5.2 shows CPU Register Status after Reset, Figure 5.3 shows

Reset Sequence, and Figure 5.4 shows the OFS Register.

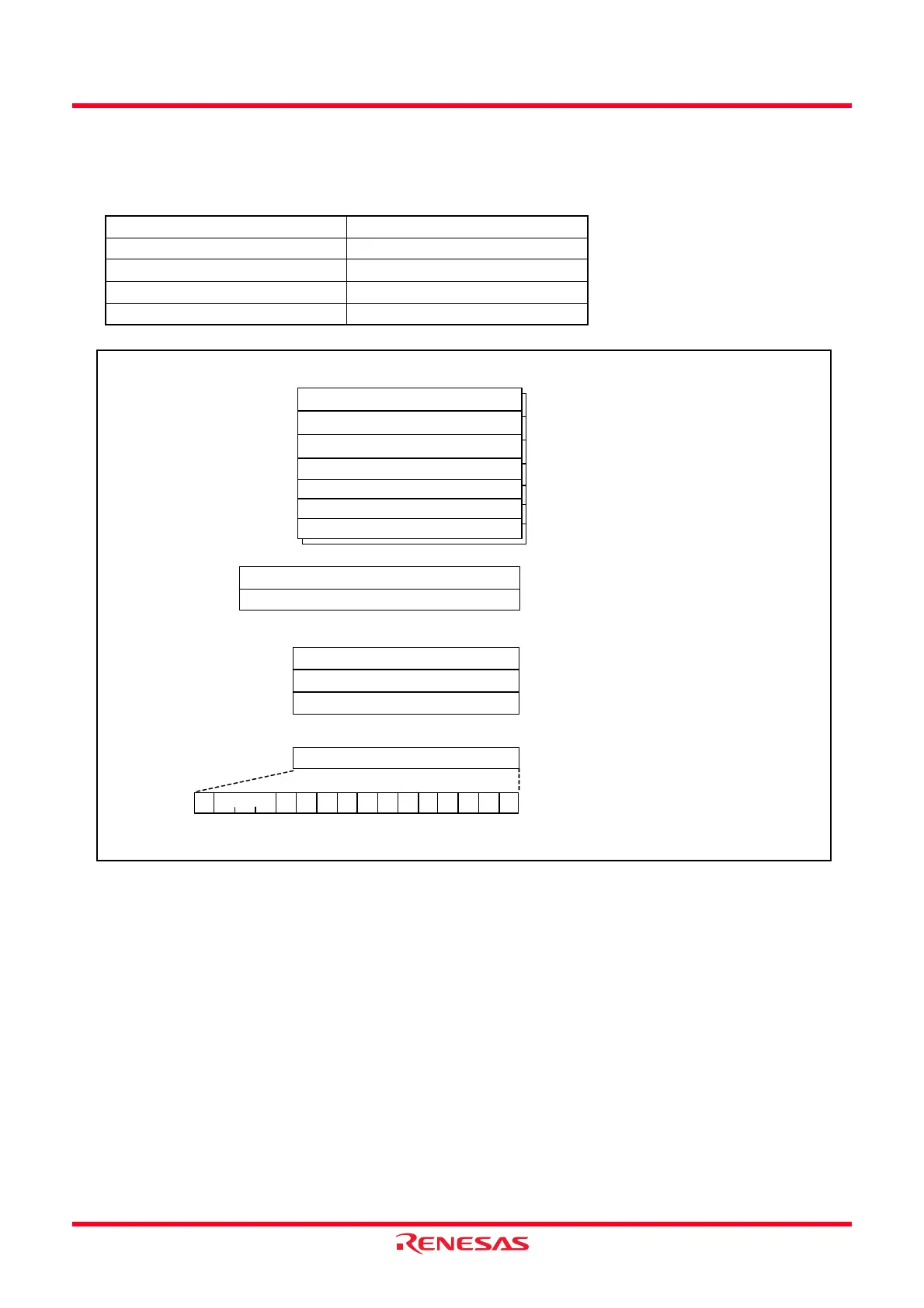

Figure 5.2 CPU Register Status after Reset

Table 5.2 Pin Functions after Reset

Pin Name Pin Functions

P0, P1, P2 Input port

P3_0, P3_1, P3_3

to P3_5, P3_7 Input port

P4_2 to P4_7 Input port

P6 Input port

b19

Interrupt table register (INTB)

Program counter (PC)

User stack pointer (USP)

Interrupt stack pointer (ISP)

Static base register (SB)

Content of addresses 0FFFEh to 0FFFCh

Flag register (FLG)

IPL

DZSBOIU

b15

0000h

Data register (R0)

Data register (R1)

Data register (R2)

Data register (R3)

Address register (A0)

Address register (A1)

Frame base register (FB)

00000h

0000h
