3.2

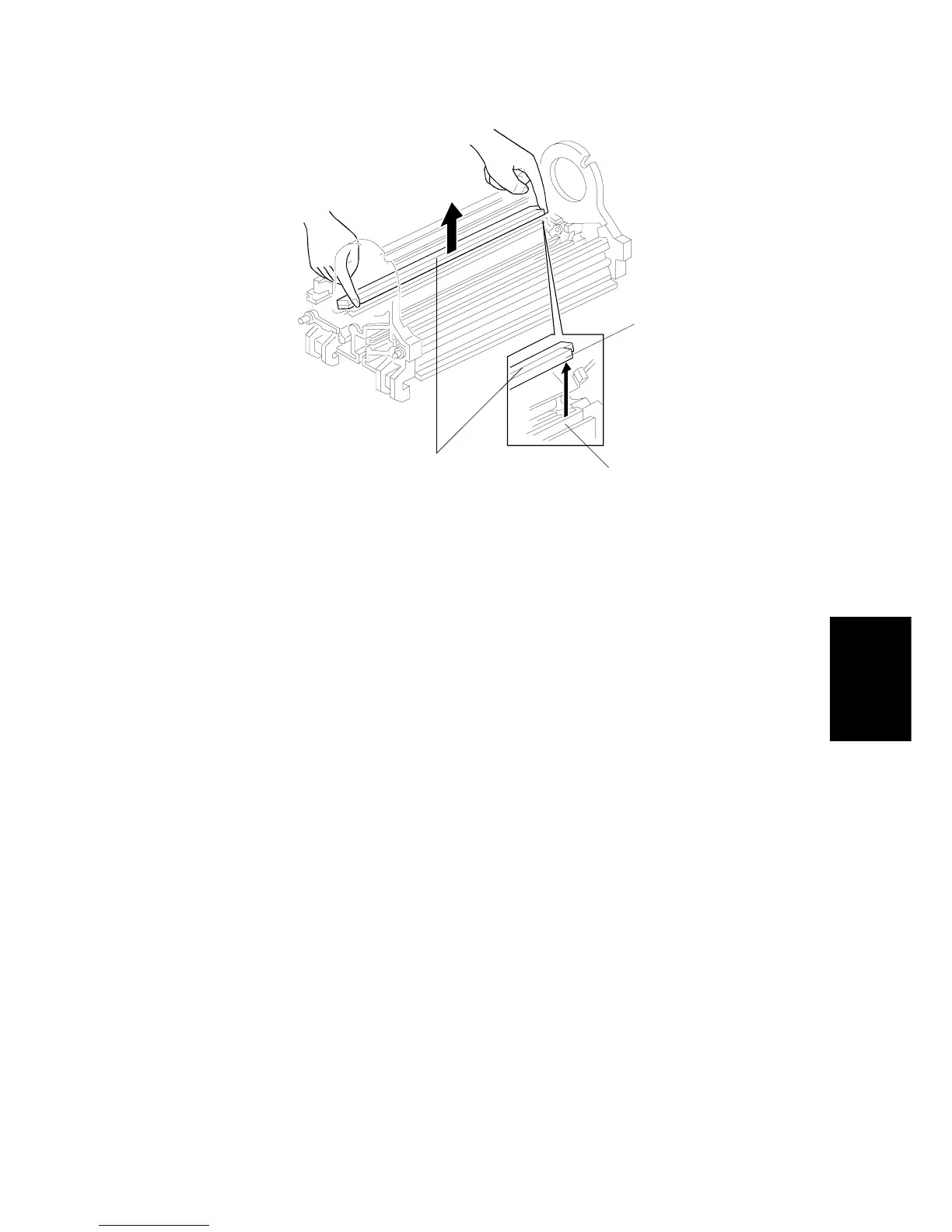

DRUM LUBRICANT BAR REPLACEMENT
1. Remove the cl
eaning brush.
(See
A109 Cl
eaning Brush R
eplacement.
)
2.
Remove
the d
rum lubric
ant ba
r [A] a
s shown
.
NOTE:
When reinstalling make sure that the lubrican
t plate [B] lies over
the un
it fra
me [C] a
s sh
own.
[B]
[C]
[A]
Replacement
and
Adjustment
SM
5-9
A172/A199
