5. TRANSFER BELT CLEANING UNIT
5.1 BELT LUBRICANT BAR REPLACEMENT

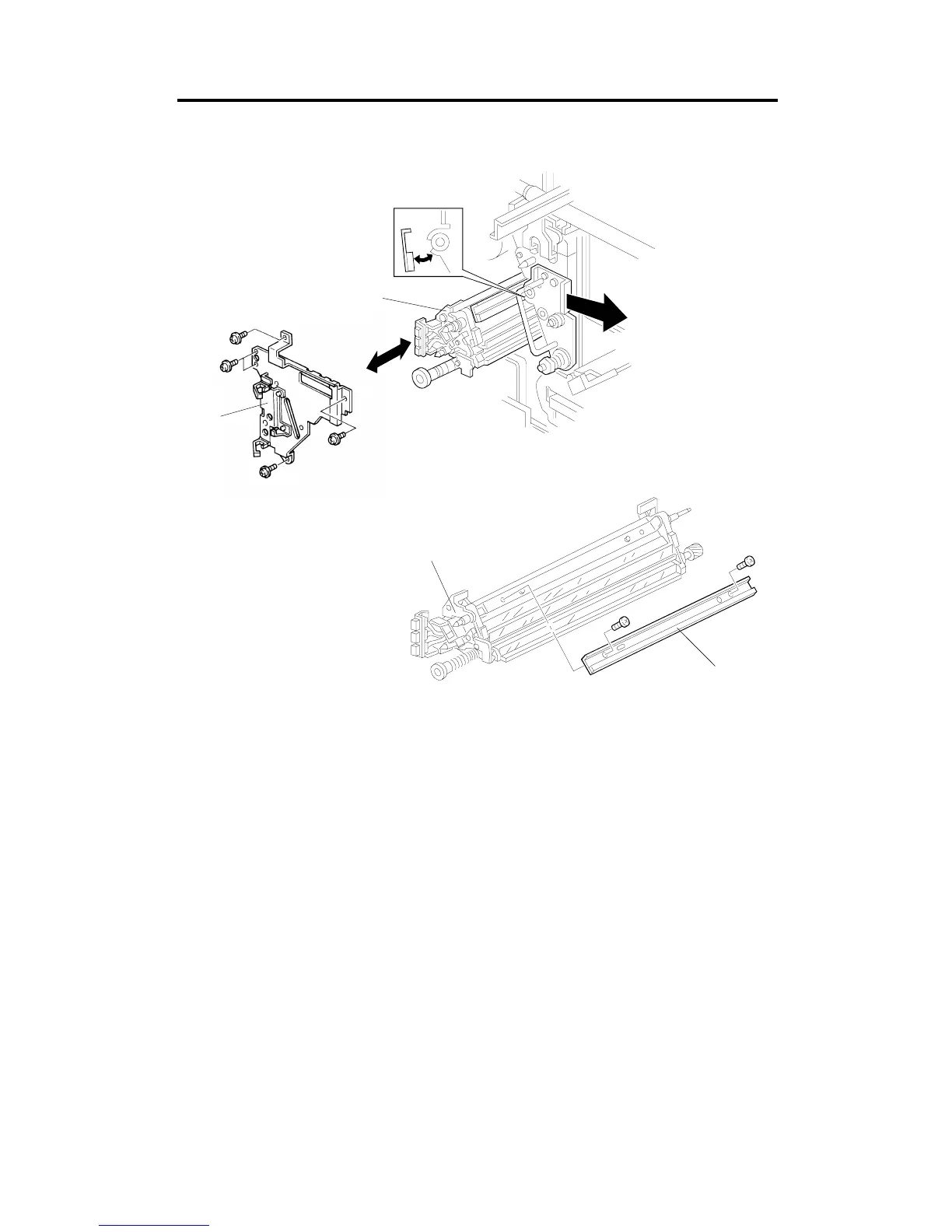

1. Remove the following parts and slide out the transfer belt cleaning unit
[A]. (Refer to Section 3, Installation.)
•
Toner tank
•
Right inner cover
•
Yellow toner supply receptacle
•
Transfer belt stay [B].
2. Remove the belt lubricant bar [C] (2 screws).
NOTE:
To prevent the belt lubricant bar [C] from being scratched, pull
the handle of the transfer belt unit slightly to the right while you
insert the transfer belt cleaning unit.
[B]
[C]
[A]
[A]
A172/A199 5-20 SM
