15.18.2 Two-sided Original Mode
NOTE:
1) After replacing the DJF main board, always perform the
adjustment using VR102 on the DJF main board.
2) At other times, adjust with either the base copier SP mode or
VR102. Both procedures will move the original stopping position.
3) After finishing the adjustment, be sure to turn off the dip switches.
– Using VR102 –

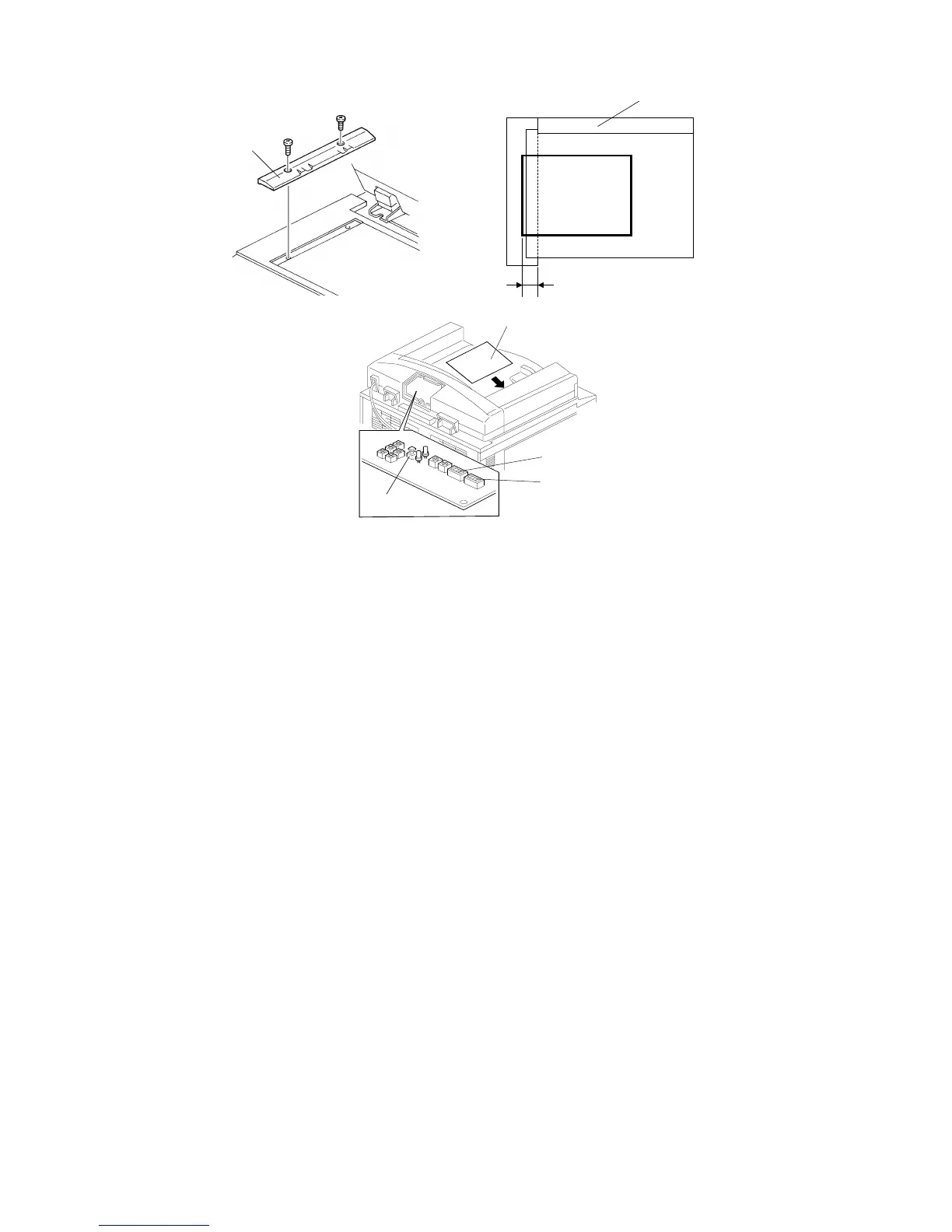

1. Remove the copier’s left original scale [A] (2 screws).
2. Remove the small cover at the rear of the DJF upper cover (1 screw).
3. Turn on dip switch 101-2 and -4 [B].
4. Turn on dip switch 102-1 and -4 [C].
5. Place a sheet of A4/8
1/2
" x 11" sideways paper [D] (64 g/m
2
, 17 lb) on
the original table.
6. Press switch 101 [E]. (Paper will be fed to the exposure glass.)
7. Raise the DJF carefully so that the original does not move.
8. Check that the distance between the trailing edge of the paper and the
left edge of the rear original scale [F] is between 0 ~ 5 mm.
9. If the distance is not within this specification, adjust the registration with
VR102. (Looking from the front, turning VR102 counter-clockwise will
feed the paper more towards the left.)
[A]
[D]
[E]
[C]
[B]
0 ~ 5 mm
[F]
A172/A199 7-48 SM
