8.3 TRANSFER ROLLER LUBRICATION

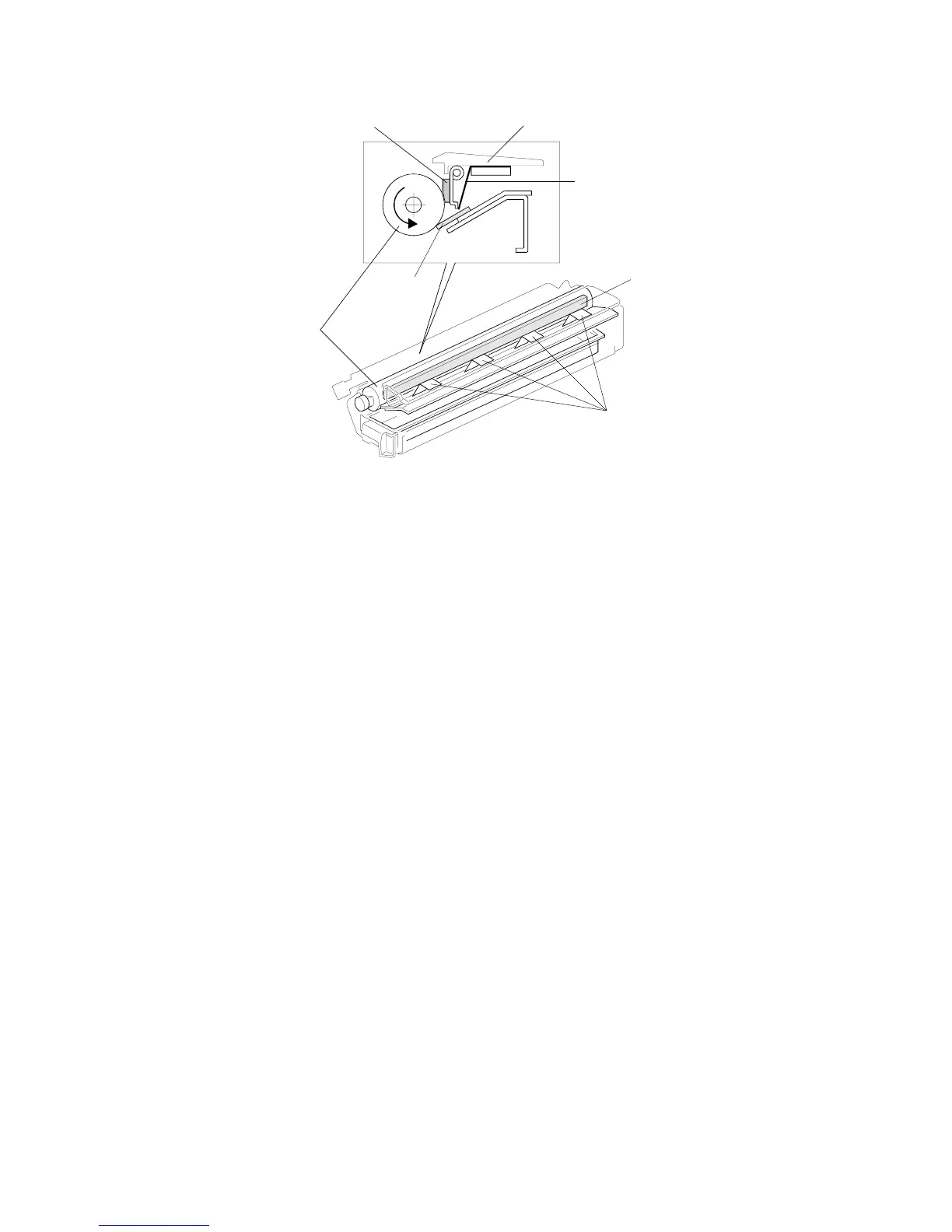

The transfer roller lubricant bar [A] above the cleaning blade [B] continuously
applies lubricant directly to the transfer roller [C].
Four spring plates [D] under the transfer roller guide [E] press the lubricant
bar against the transfer roller.
By applying lubricant, the cleaning efficiency of the transfer roller cleaning
blade is increased, which prevents the back side of copies from becoming
dirty with toner and paper dust.
[A]
[E]
[A]
[D]
[B]
[C]
[D]
A172/A199 2-32 SM
