3.4 INSTALLING A NEW DRUM
NOTE:
•
The installation procedure for a new drum is the same as for the
base copier (A109) except the following steps which come after
turning on the main switch.
•
The steps from 3 to 12 are to apply lubricant to the new drum
surface. These steps can all be replaced by just making 10
copies of the C-4 Test Chart on A3 (11"X17") paper.
•
If the developer is replaced together with the OPC drum, steps 3
to 12 are unnecessary because lubricant is applied to the drum
surface during the developer initialization.
1. Replace the OPC drum with a new one and reassemble the copier.
2. Turn on the main switch.
3
. Place a few sheets of A3 (11"X17") white paper and close the platen
cover (DJF).
4
. Enter the SP mode and open
[2]SP Test, page 1.
5

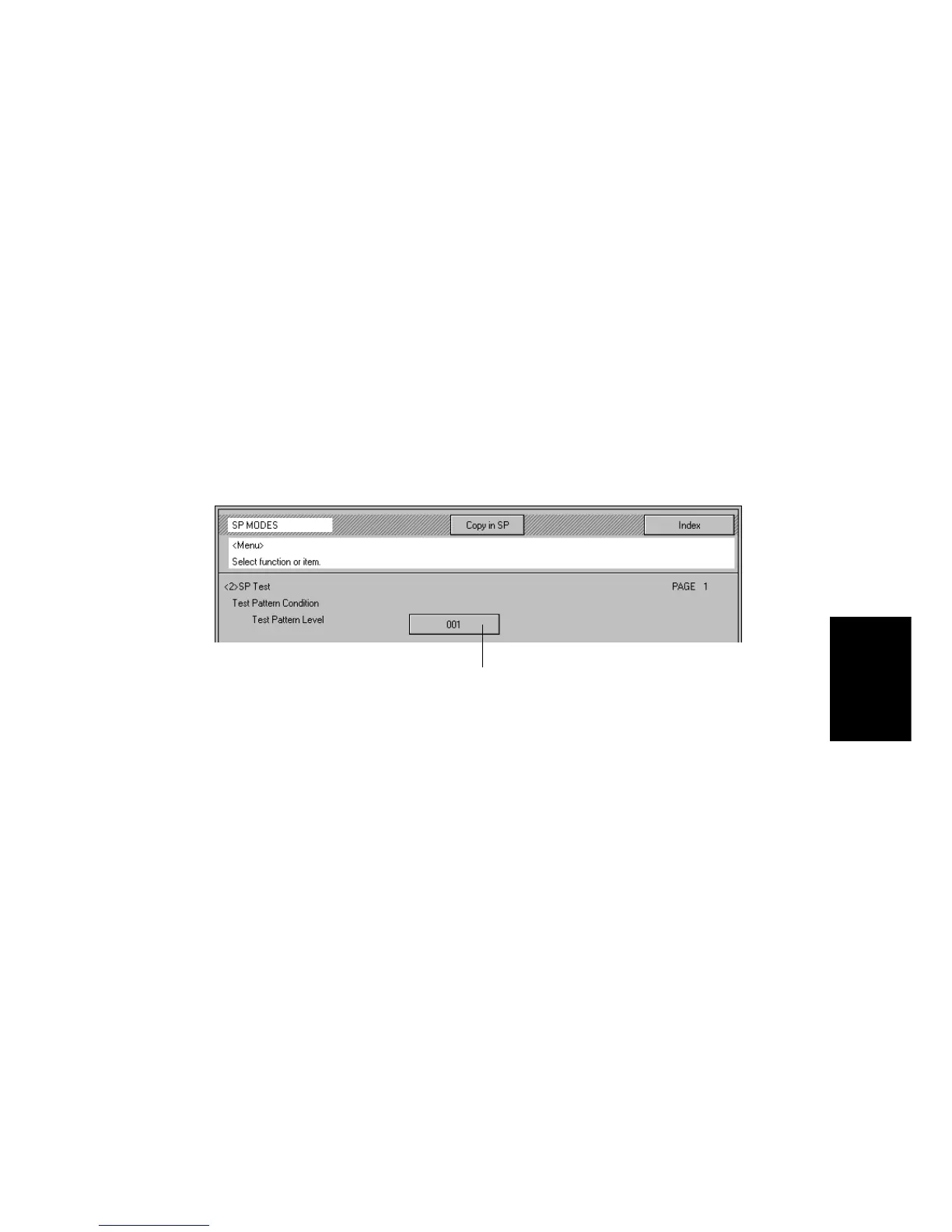

. Set the
Test Pattern Level
[A] to "
30
".
NOTE:
If the test pattern level is too high, a lot of toner will be
consumed and toner scattering will occur inside the machine.
[A]
Replacement
and
Adjustment
SM 5-11 A172/A199
To Next Page
