15.11

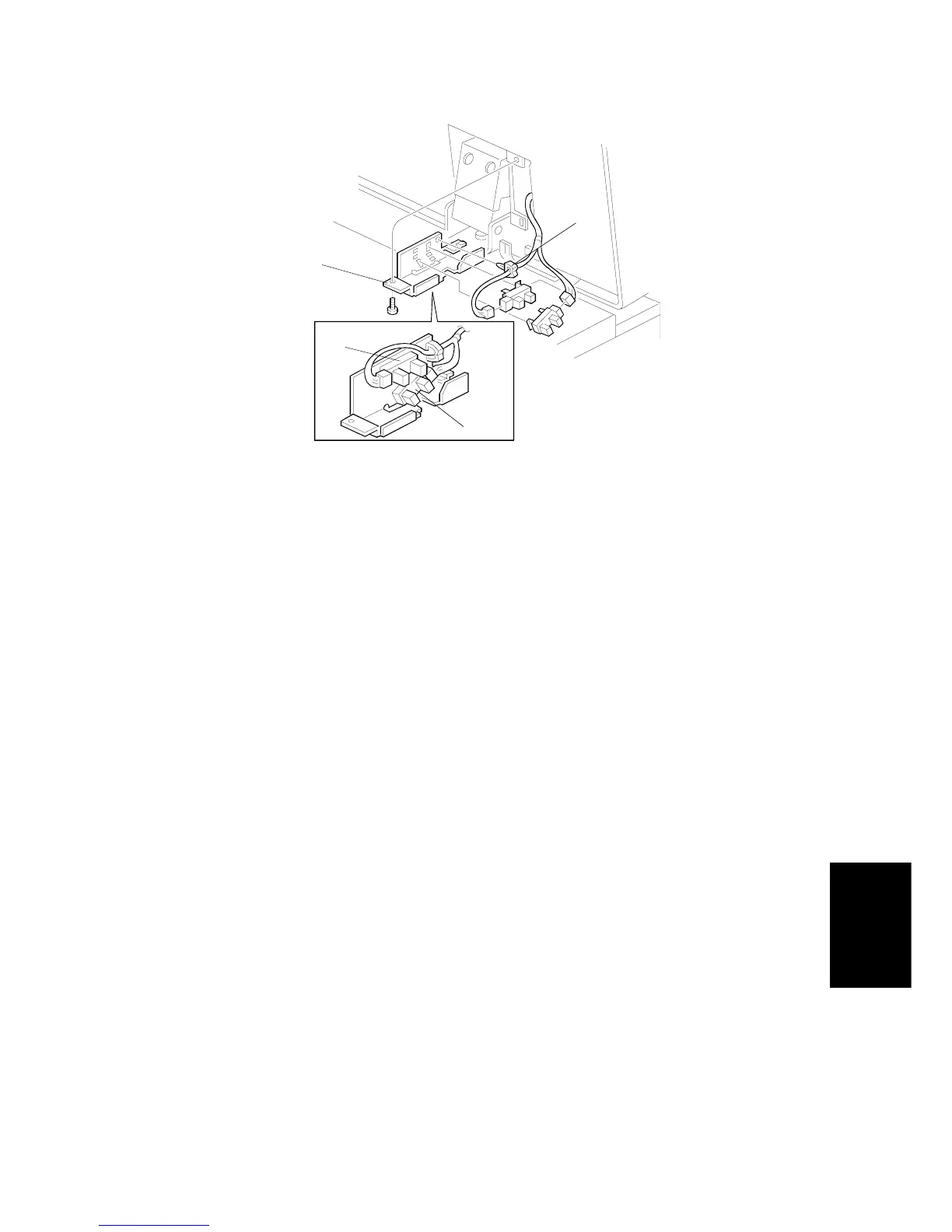

DF POSITION/APS START SENSOR REPLACEMENT
1. Turn off the main
switch and lift
up the DF.
2. Remove the sensor bracket [A]
(1 screw).
3.
Remove
the h
arness
clamp
[B] a
nd repla
ce th
e DF pos
ition
senso
r [C]
or
the APS s
tart sen
sor [D] (1 conn
ector ea
ch).
[A]
[B]
[D]
[C]
Dual Job Feeder
DF62 (A610)
SM
7-39
A172/A199
359
