15.16 FEED-IN CLUTCH REPLACEMENT
1. Turn off the main switch and remove the upper cover. (Refer to Upper
Cover Removal.)
2. Remove the friction belt motor. (Refer to Friction Belt Motor
Replacement.)

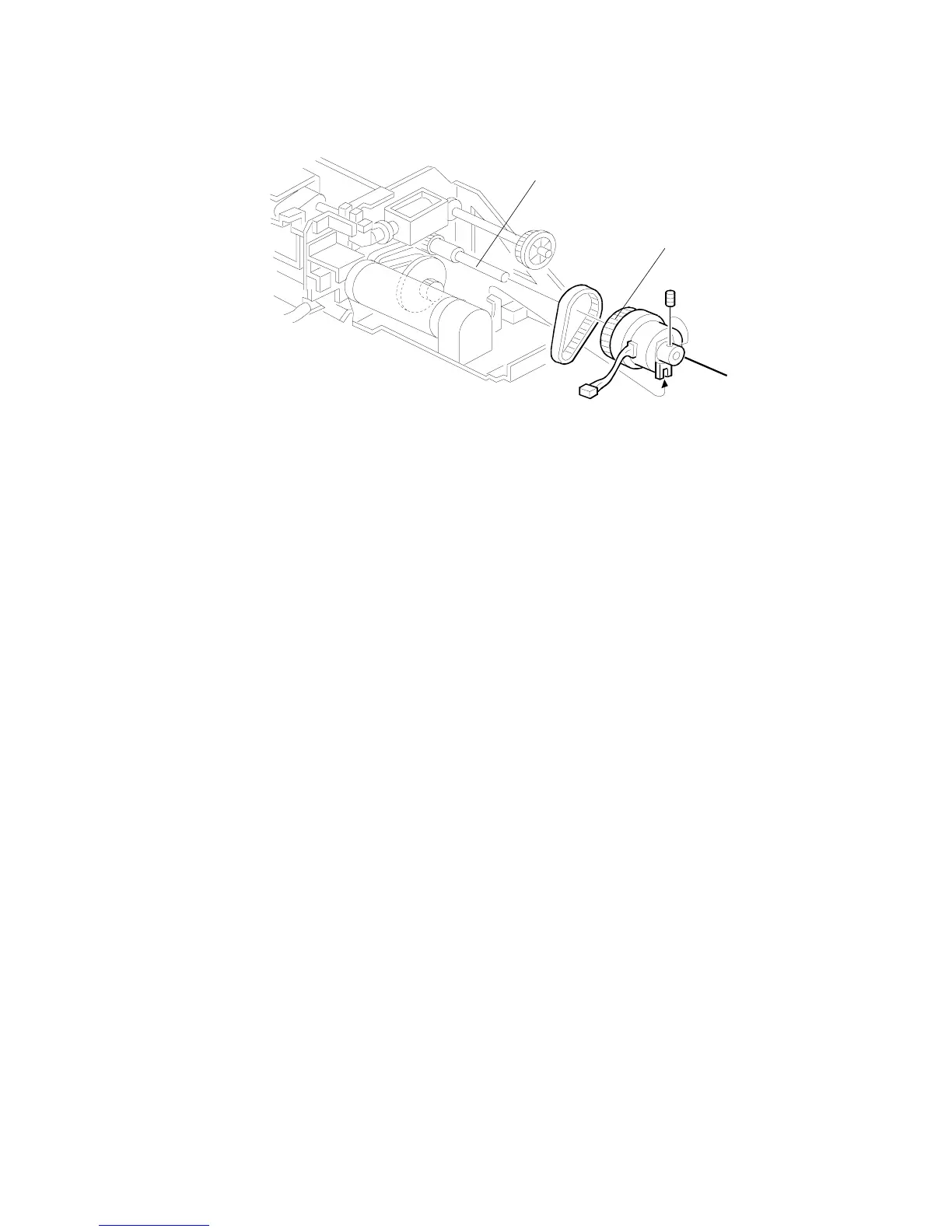

3. Replace the feed-in clutch [A] (2 Allen screws).
NOTE:
When reinstalling, make sure of the following.
1) The clutch stopper groove must engage the clutch stopper.
2) The end of the clutch stopper [C] must be flush with the head of
the shaft.
[A]
[C]
[B]
A172/A199 7-44 SM
