7. FUSING UNIT
7.1 PRESSURE ROLLER CLEANING ROLLER
REPLACEMENT
+
CAUTION
1. Be careful when handling the fusing unit. It is hot.
2. Take care not to spill silicone oil on the floor. If silicone oil spills on
the floor, immediately clean it with a silicone oil remover. Silicone
oil is very slippery and can cause someone to fall.
1. Remove the fusing unit from the machine. (See A109 Fusing Unit
Removal.)

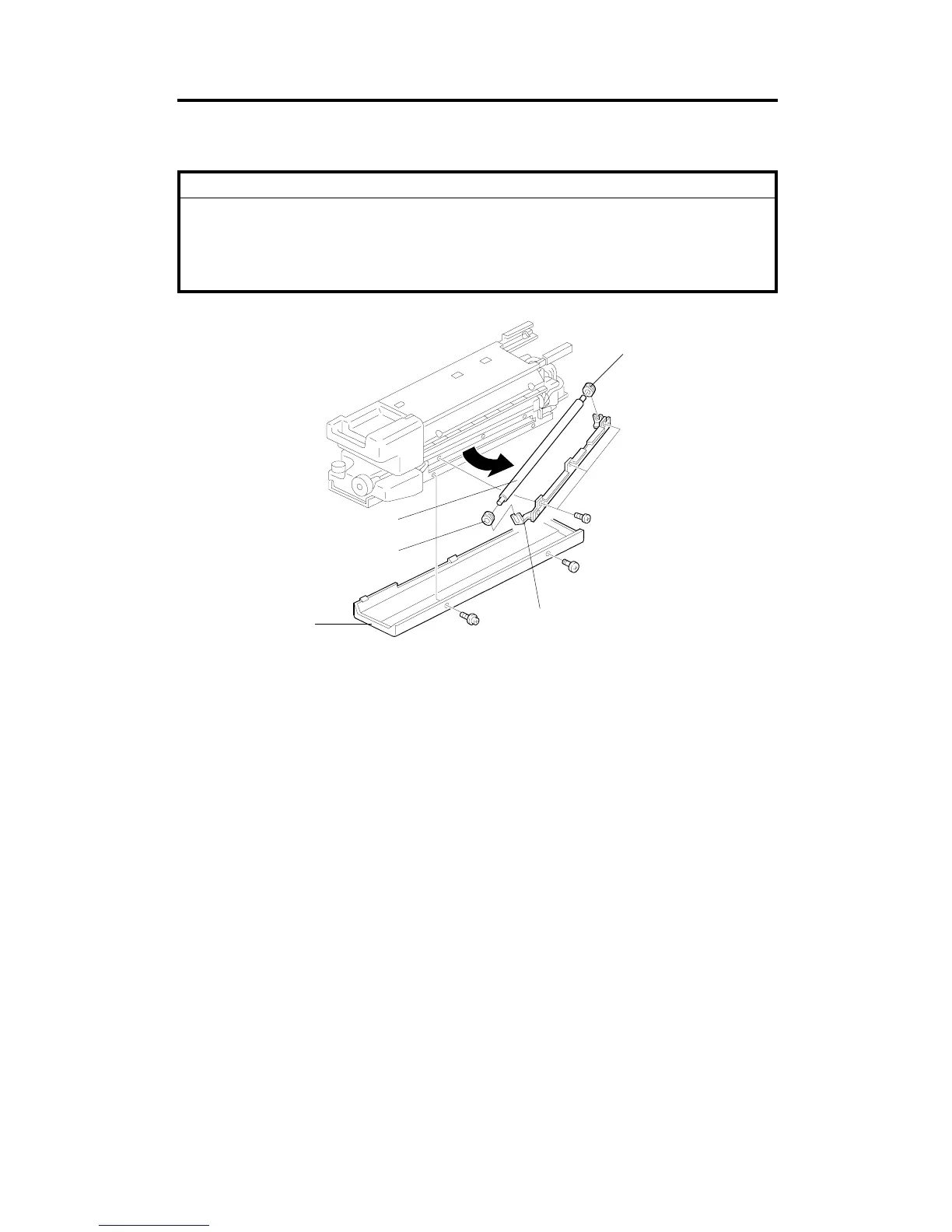

2. Remove the fusing lower cover [A] (2 screws).
3. Remove the cleaning roller support bracket [B] (3 screws).
4. Remove the bearings [C] and remove the pressure roller cleaning roller
[D].
[C]
[D]
[B]
[A]
[C]
A172/A199 5-24 SM
