Publication 2094-UM001A-EN-P — September 2006

226 Upgrading Firmware

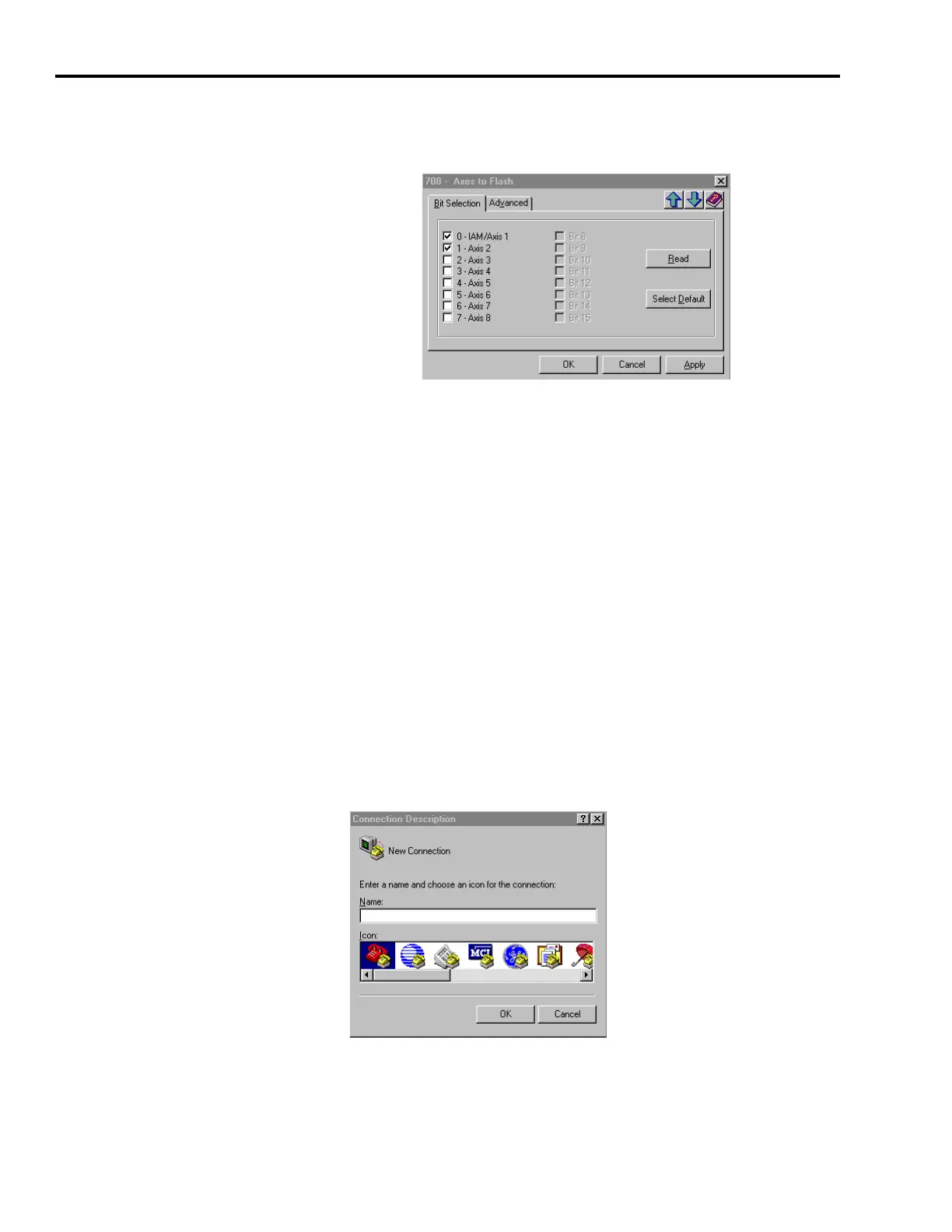

8. Double-click Axes to Flash.

The Axis to Flash dialog opens.

9. Click (check) each axis to flash.

Example above shows two axes to flash checked.

10. Select OK.

The Axes to Flash parameter is set.

11. Close DriveExplorer.

HyperTerminal Configuration

Follow these steps to begin a new HyperTerminal session.

1. From the Windows Start menu, select Programs\Accessories\

HyperTerminal\HyperTerminal.

The New Connection dialog opens.

2. Type a name the new HyperTerminal file and choose an icon for

the connection.
