Publication 2094-UM001A-EN-P — September 2006

88 Connecting the Kinetix 6000 Drive System

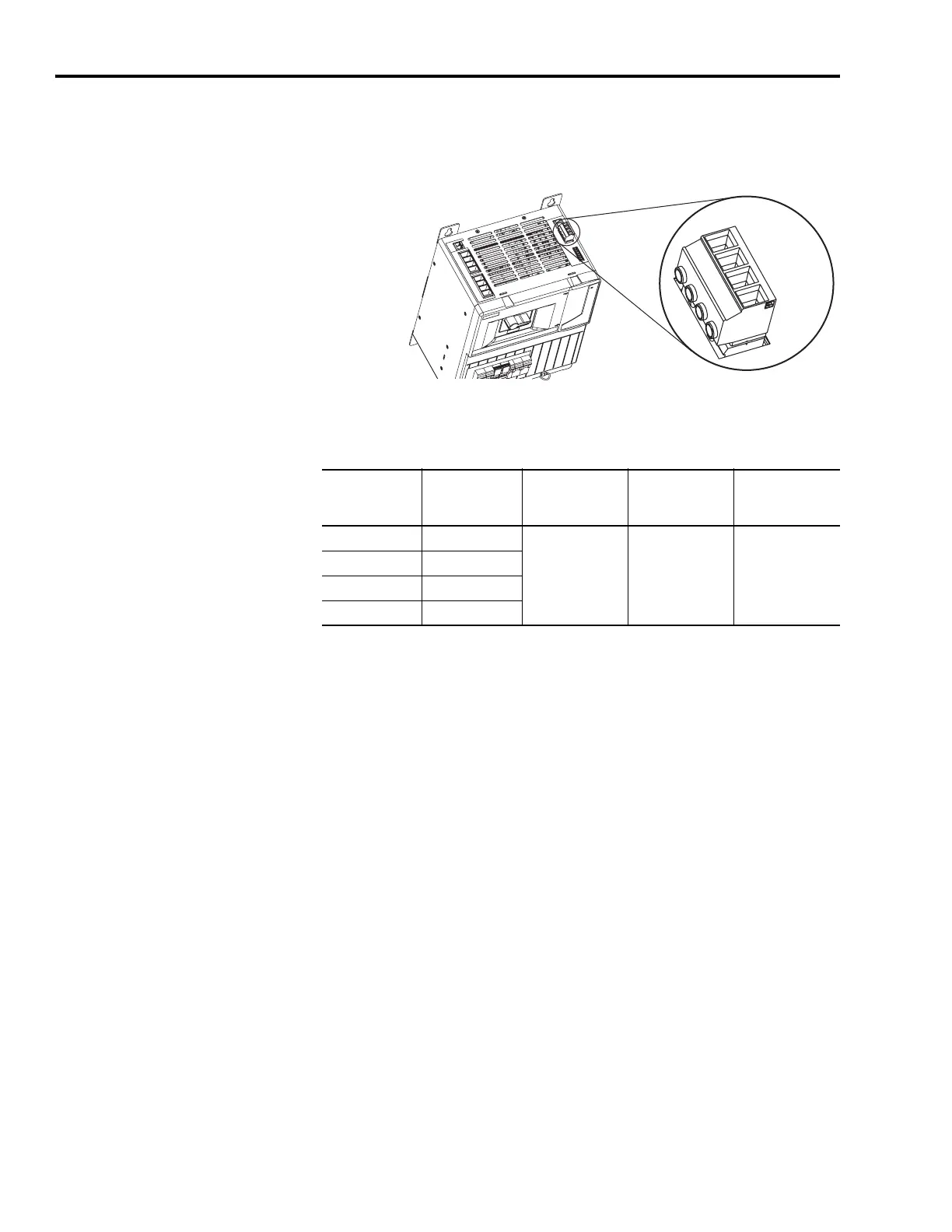

Wiring the Auxiliary Power Output (P2L) Connector

Line Interface Module (P2L connector)

Auxiliary Power Output (P2L) Connector

2094-ALxxS, -BLxxS, -XL75S-Cx

AUX2_L2

AUX2_L1

AUX1_L2

AUX1_L1

1 2 3 4

Line Interface Module, Top View

(2094-XL75S-Cx is shown)

P2L Pin Signal

Recommended

Wire Size

(AWG)

Strip Length

mm (in.)

Torque Value

Nm (lb-in)

1AUX1_L1

0.2-4.0

(24-10)

7.0

(0.28)

0.5 - 0.6

(4.4 - 5.3)

2AUX1_L2

3AUX2_L1

4AUX2_L2
