26 Planning the Kinetix 6000 Drive System Installation
Minimum Clearance Requirements
This section provides information to assist you in sizing your cabinet
and positioning your Kinetix 6000 system components.
Minimum Clearance Requirements
(1)
The power rail (slim), catalog number 2094-PRSx, does not extend left or right of the first or last module
(respectively). When using power rail (catalog number 2094-PRx) the power rail extends approximately
25.4 mm (1.0 in.) left of the IAM and right of the last module mounted on the rail.

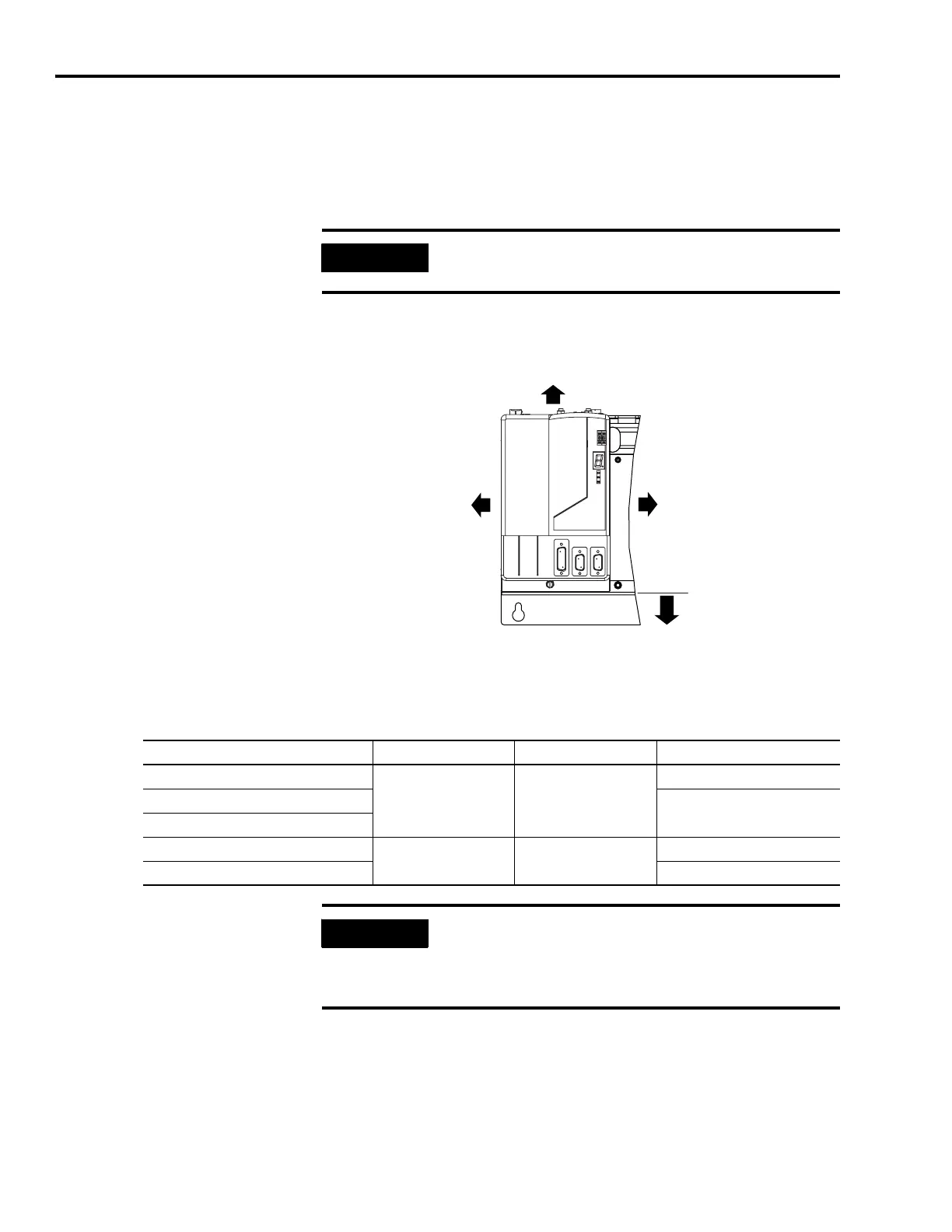

Minimum Clearance Dimensions
Refer to page 180 for power dissipation specifications.
IMPORTANT
Mount the module in an upright position. Do not mount the
module on its side.
Clearance right of the
module is not required.
(1)
Clearance above
for airflow and installation.
Clearance left of the
module is not required.
(1)
Integrated Axis Module (IAM)
(2094-AC05-Mxx is shown
mounted on power rail)
Power Rail
(2094-PRSx is shown)
Clearance below
for airflow and installation.
Cat. No. Clearance Above, Min Clearance Below, Min Cabinet Depth Clearance, Min
2094-AC05, -AC09, -AMP5, -AM01, -AM02
50.8 mm (2.0 in.) 50.8 mm (2.0 in.)
200 mm (7.9 in.)
2094-BC01, -BC02, -BMP5, -BM01, -BM02
272 mm (10.7 in.)
2094-BSP2
2094-AC16, -AC32, -AM03, -AM05
305 mm (12.0 in.) 50.8 mm (2.0 in.)
200 mm (7.9 in.)
2094-BC04, -BC07, -BM03, -BM05 272 mm (10.7 in.)
IMPORTANT
Although clearance left and right of the power rail is not
necessary for ventilation, additional clearance is required when
mounted adjacent to noise sensitive equipment or clean
wireways.
