Publication 2094-UM001A-EN-P — September 2006

238 DC Common Bus Applications

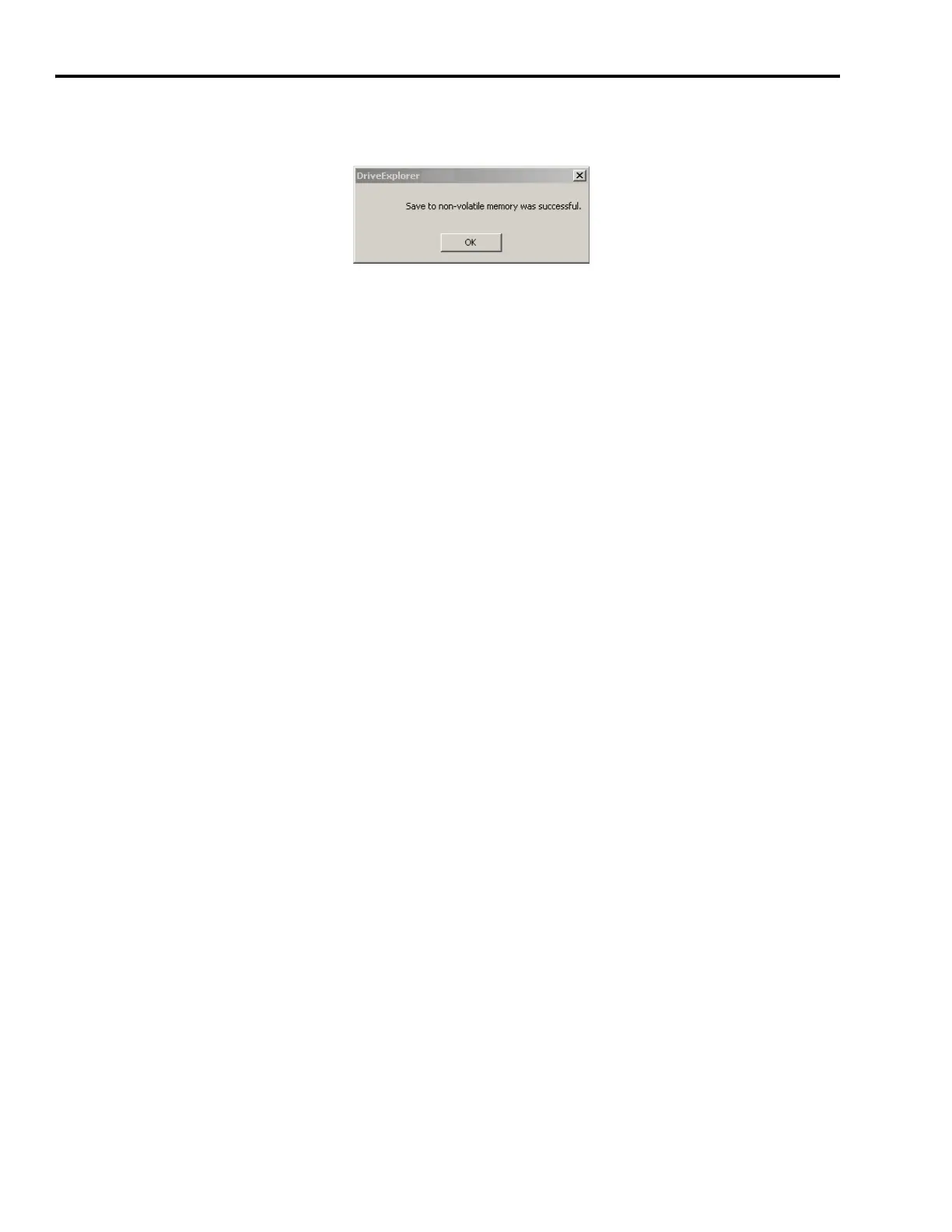

The save to non-volatile memory is complete and the following

confirmation message dialog opens.

4. Click OK.

5. Close the DriveExplorer software.

Reconnecting SERCOS Communication

Follow these steps to reconnect SERCOS communication.

1. Remove three-phase and control power from the Kinetix 6000

drive system.

2. Replace the SERCOS fiber-optic cable removed earlier.

Fiber-optic cable connections (Tx and Rx) are located on the top

of each IAM/AM.

3. Re-apply three-phase and control power.
