Siemens SC 7000 Service Manual

Service Manual SC 7000 and SC 9000XL Patient Monitors
94 Siemens Medical Systems, EM-PCS, Danvers ASK-T898-03-7600
NOT A CONTROLLED DOCUMENT
7k9kXLSM.apa.CD_ROM.fm/04-99/kaupp

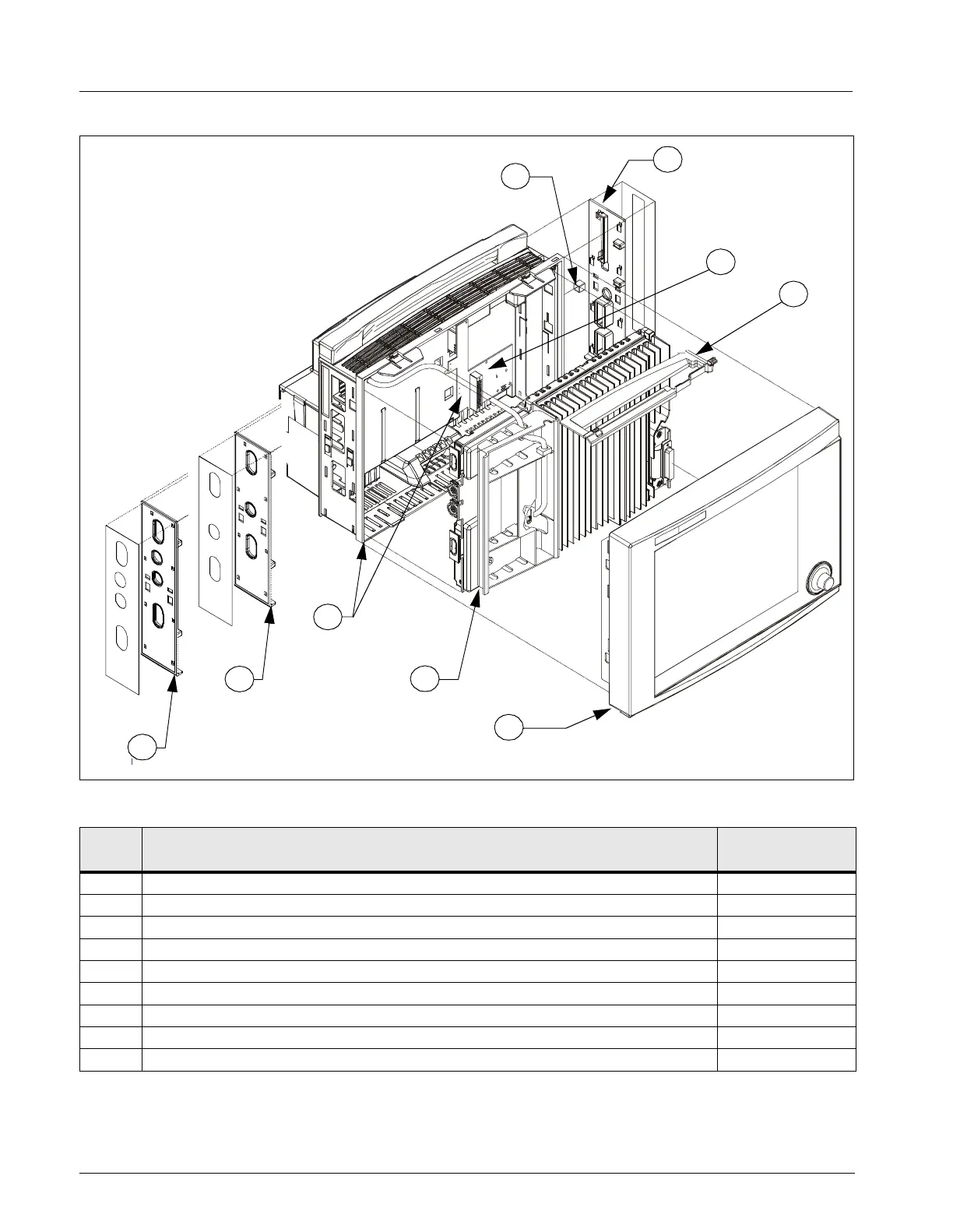

Figure A-1 Major Subassemblies, w/ Funnel and Side Panels (Exploded View)
Table A-1Major Replaceable Subassemblies, Funnel, Side Panels and Labels
2
1
3
4
5
6
7
5a
8
Item
No.
Description
Siemens Article
Number
1 Front Bezel Assembly (incl. all subassembl. in front bezel except language labels) 55 88 301 E539U
2 Main Processor PCB Subassembly 55 94 507 E539U
3 Rear Housing Subassembly (incl. Connector I/O PCB) 55 88 319 E539U
4 Funnel 57 33 139 E539U
5 Left Side Panel - SC 7000 57 33 113 E539U
5a Left Side Panel - SC 9000XL 57 33 188 E539U
6 Right Side Panel - SC 7000/9000XL 57 33 121 E539U
7 Ejector Shaft Cover (10) 33 76 865 E522U
8 Fuses F1, F2, and F3 on Connector I/O PCB, 10A 60V Axial (10) 47 16 051 B1302
