SC 7000 and SC 9000XL Patient Monitors Service Manual
ASK-T898-03-7600 Siemens Medical Systems, EM-PCS Danvers 101
7k9kXLSM.apb.CD_ROM.fm/04-99/kaupp
NOT A CONTROLLED DOCUMENT
3I
NFINITY
Docking Station Connectors

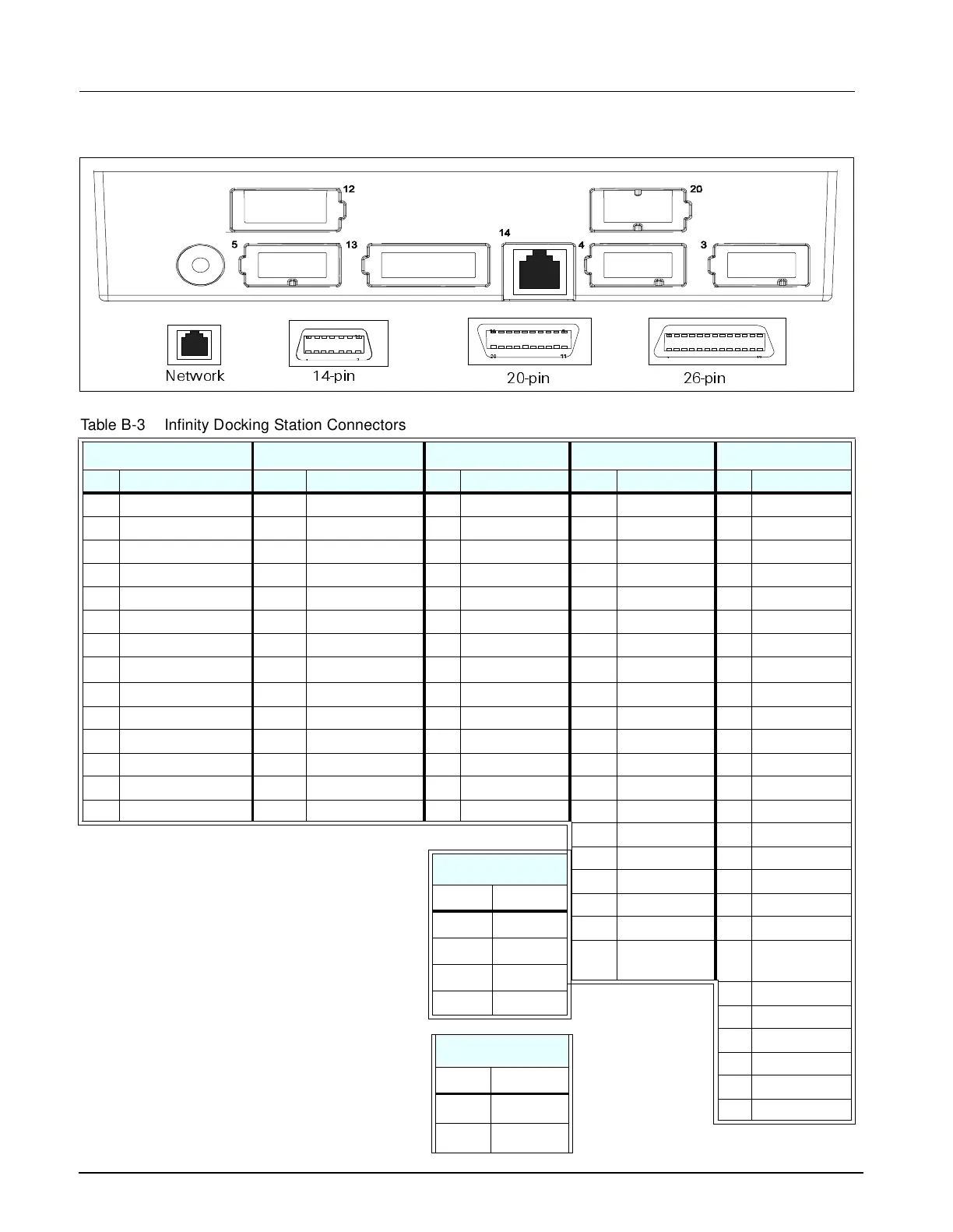

Figure B-5 Infinity Docking Station Connectors(Refer to Table B-3.)
SLQ1HWZRUN
SLQ
SLQ
Table B-3 Infinity Docking Station Connectors
ALM/KB/DIAG/COMM-1 (X4) ALM/KB/DIAG/COMM-2 (X3) External CRT (X5) AUX/MIB/CANBUS(X12) Recorder (X13)
Pin Signal Pin Signal Pin Signal Pin Signal Pin Signal
1 GND 1 GND 1 Ext Red 1 MIB1 D+ 1 R50A TxD
2 Tx Data KB 2 Tx Data KB 2 VGND 2 MIB1 Pwr 2 AUX Pwr2
3 Rem Kbd Pwr 3 Rem Kbd Pwr 3 Ext Grn 3 MIB1 D- 3 R50A RxD
4 ISD Power 4 ISD PWR 4 VGND 4 MIB2 Pwr 4 AUX Pwr2
5 Diag TxD (CPS) 5 Diag TxD 5 Ext Blu 5 MIB1 S+ 5 R50A CTS
6 DEBUG1 6 MCBOOTL 6 VGND 6 CAN+ 6 AUX Pwr2
7 ISD GND 7 ISD GND 7 GND 7 MIB1 S- 7 R50A RTS
8 RxData KB 8 RxData KB 8 H-Sync 8 CAN R
L
8AUX Pwr2
9 Alarm Out 9 Alarm Out 9 V-Sync 9 AUX1 ID0 9
10 GND 10 GND 10 Remote TxD 10 AUX1 ID1 10 AUX Pwr2
11 HWBootL 11 NMI 11 Remote RxD 11 AUX1 ID2 11 AUX2 ID0
12 COMM-1 Rx 12 COMM-2 Rx 12 Pwr Switch 12 MIB2 D+ 12 AUX2 ID1
13 COMM-1 Tx 13 COMM-2 Tx 13 Rem Audio 13 GND 13 AUX2 ID2
14 Diag RxD 14 Diag RxD 14 Rem Aud Ret 14 MIB2 D- 14 AUX2 P Enb
15 GND 15 P GND
16 MIB2 S+ 16 R100A TxD+
17 GND 17 P GND
18 MIB2 S- 18 R100A TxD-
19 CANBUS+ 19 P GND
20 Chassis
GND
20 R100A RxD+
21 P GND
22 R100 RxD-
23 P GND
24
25 Chassis GND
26 Chassis GND
Network (X14)
Pin No. Signal
1TxD+
2TxD-
3RxD+
4RxD-
PSL (X20)
Pin. Signal
D
GND
O
PWR
