Appendix B: Connector / Cable Pinouts
1 Docking Connectors

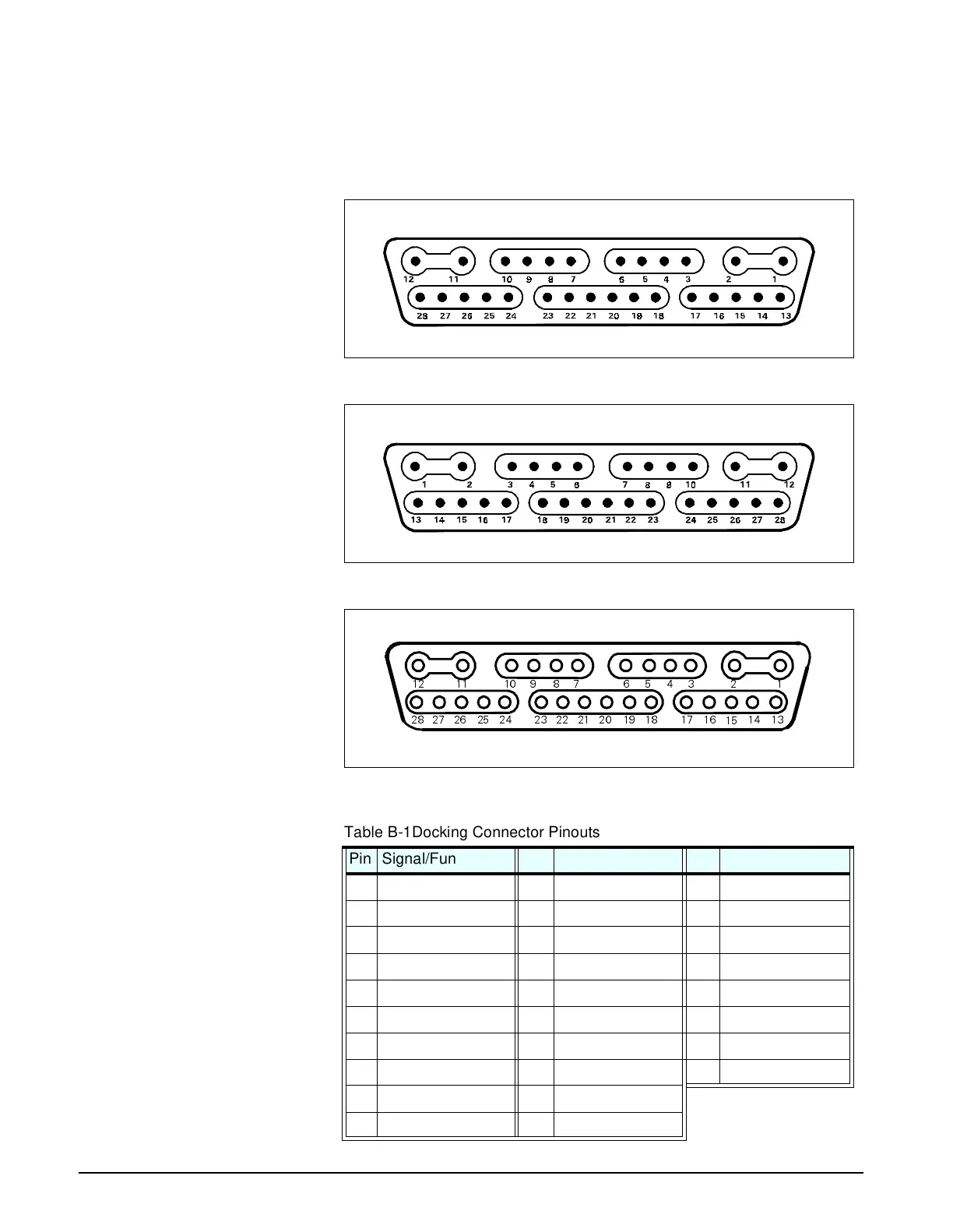

Figure B-1 Monitor Docking Connector (Refer to Table B-1.)
Figure B-2CPS/IDS, Interface Plate Docking Connector (Refer to Table B-1.)
Figure B-3 Docking Station Cable Connector (Refer to Table B-1.)
Table B-1Docking Connector Pinouts
Pin Signal/Function Pin Signal/Function Pin Signal/Function
1 Vbus 11 GND 21 VGND
2 GND 12 V+ 22 V Sync
3 Remote TxD 13 Rec RTS 23 H Sync
4 Remote RxD 14 Rec CTS 24 Rx−
5 Remote Audio Ret 15 Rec TxD 25 Rx+
6 Remote Audio 16 Rec RxD 26 TX−
7 ALARM Out 17 GND 27 TX+
8 PSN Detect 18 Ext RED 28 Power Switch
9 Debug TxD 19 Ext GRN
10 Debug RxD 20 Ext BLU
