Siemens SC 7000 Service Manual

SC 7000 and SC 9000XL Patient Monitors Service Manual
ASK-T898-03-7600 Siemens Medical Systems, EM-PCS Danvers 95
7k9kXLSM.apa.CD_ROM.fm/04-99/kaupp
NOT A CONTROLLED DOCUMENT

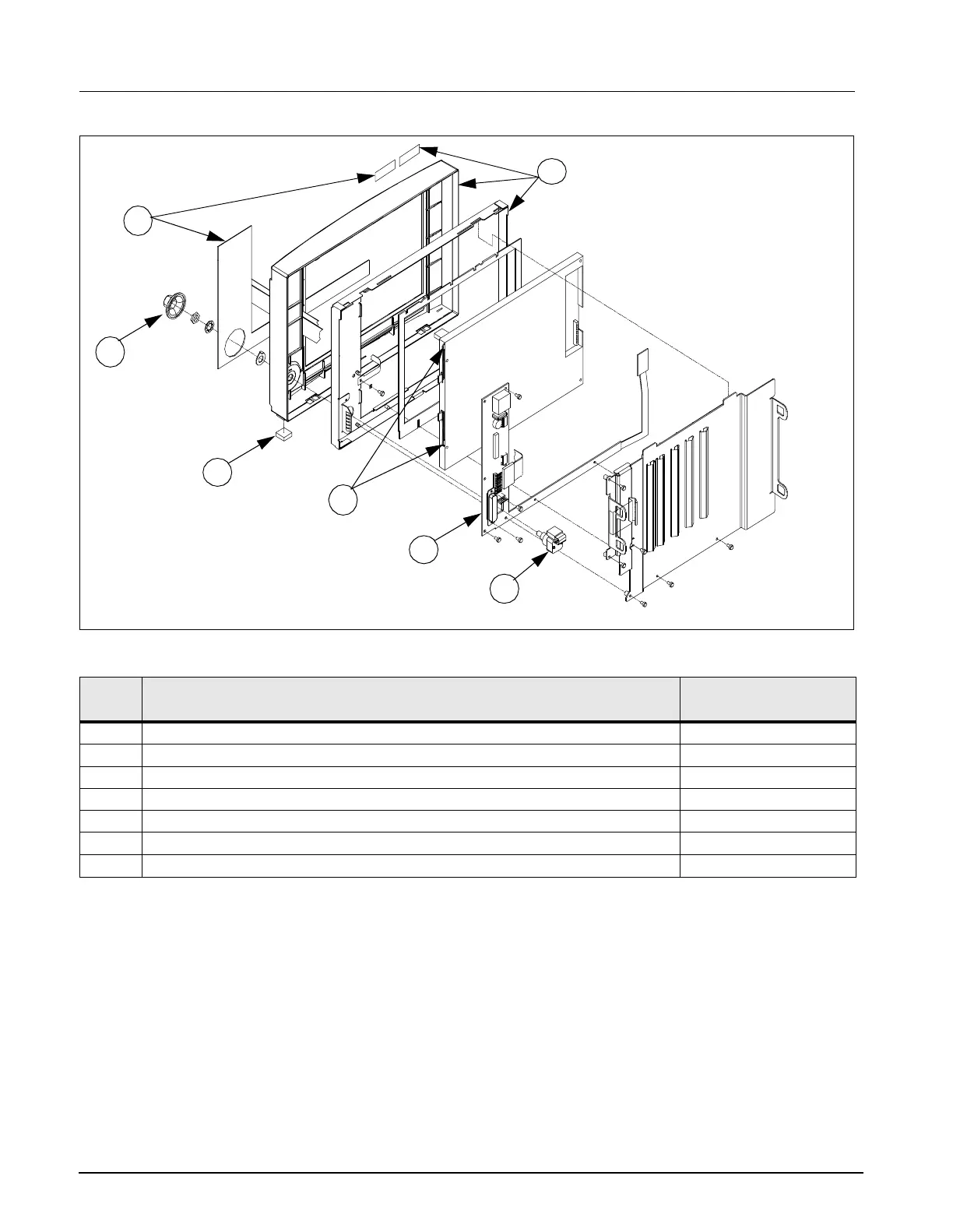

Figure A-2 Front Bezel Subassembly - Replaceable Parts/Subassemblies
Table A-2 Front Bezel Subassembly - Replaceable Parts/Subassemblies
24
22
25
21
26
23
6 PL
27
Item
No.
Description
Siemens Article
Number
21 Optical Encoder SC Series 43 11 622 E533U
22 Rotary Knob SC Series 43 16 662 E533U
23 A200 Front Bezel PC Board SC 7000 55 84 821 E539U
24 Foot .40 SQ X .25 THK (Pkg -12) 43 11 374 E533U
25 Language Label Kit, SC 7000 (incl. SC9000XL Model label) 57 34 699 E539U
26 Front Bezel/Lens Subassembly SC 7000 (incl. installed item 24) 57 34 707 E539U
27 Backlight Fluorescent Lamps 59 44 942 E539U
