SC 7000 and SC 9000XL Patient Monitors Service Manual
ASK-T898-03-7600 Siemens Medical Systems, EM-PCS Danvers 103
7k9kXLSM.apb.CD_ROM.fm/04-99/kaupp
NOT A CONTROLLED DOCUMENT
6 MultiMed Pods
6.1 MultiMed Pod

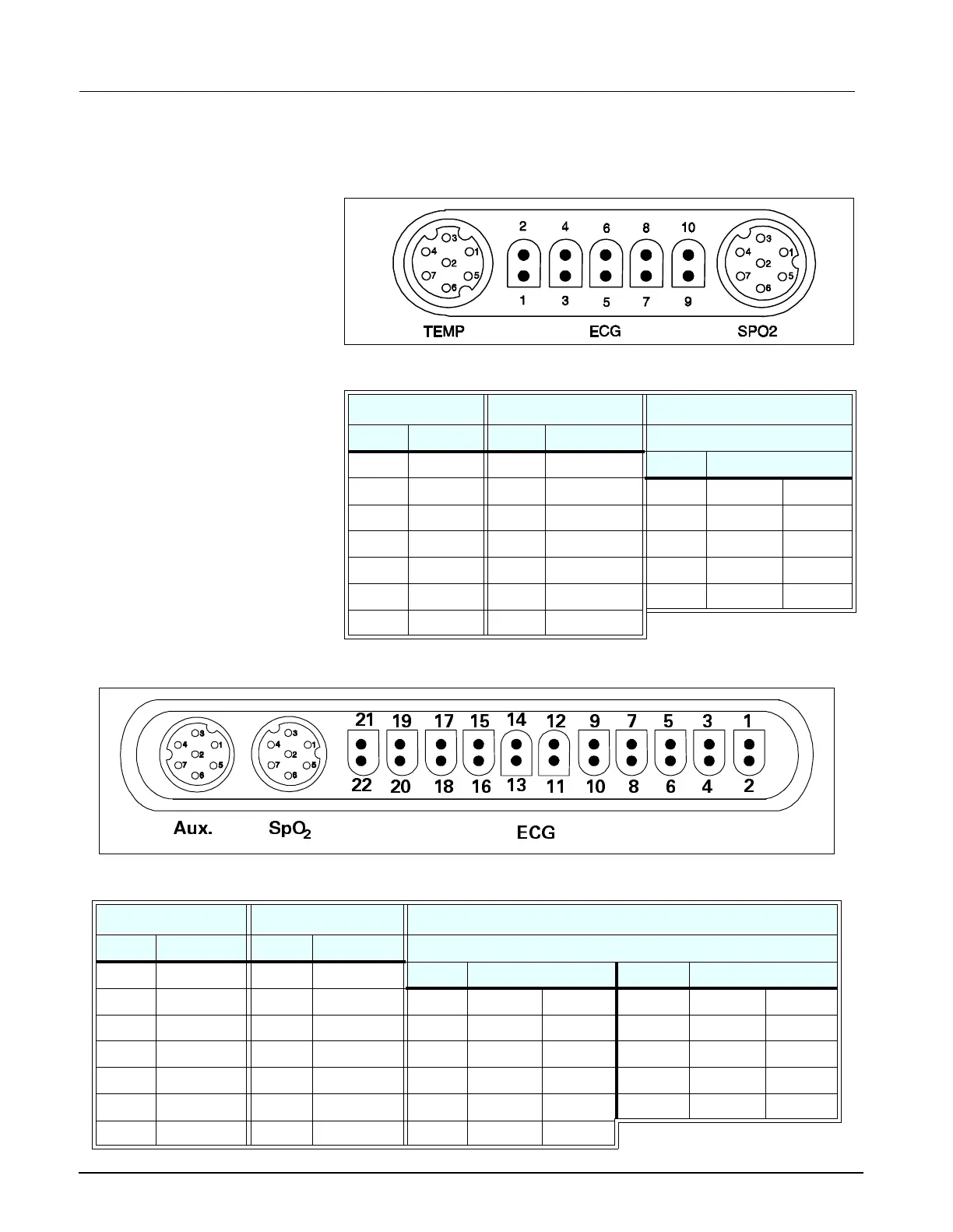

Figure B-8 MultiMed Pod (Refer to Table B-6.)
6.2 MultiMed 12 Pod
Figure B-9MultiMed 12 Pod (Refer to Table B-7.)
Table B-6 MultiMed Pod Connector Pinouts
Temp SPO2 ECG
Pin No. Signal Pin No. Signal Pins 1, 3, 5, 7, 9 = SHGND
1TA 1DETA
Pin No. IEC-1/IEC/2 Signals
2NC 2DETK SH 2L LA
3 TCOM 3 NC 4 F LL
4 NC 4 REDK 6 R RA
5 NC 5 RCALRTN 8 C V
6 NC 6 RCALIB 10 N RL
7NC 7IRK
Table B-7 MultiMed 12 Pod Connector Pinouts
Aux. SPO2 ECG
Pin No. Signal Pin No. Signal Pins 1, 3, 5, 7, 9, 11, 13, 15, 17, 19, 21 = SHGND
11DETA
Pin No. IEC-1/IEC/2 Signals Pin.No. IEC-1/IEC-2 Signals
2 2 DETK SH 2 L LA 14 C6 V6
3 3 NC 4 F LL 16 C5 V5
4 4 REDK 6 R RA 18 C4 V4
5 5 RCALRTN 8 C/C1 VC/V1 20 C3 V3
6 6 RCALIB 10 N RL 22 C2 V2
77IRK12C+V+
