Siemens SC 7000 Service Manual

Service Manual SC 7000 and SC 9000XL Patient Monitors
96 Siemens Medical Systems, EM-PCS, Danvers ASK-T898-03-7600
NOT A CONTROLLED DOCUMENT
7k9kXLSM.apa.CD_ROM.fm/04-99/kaupp

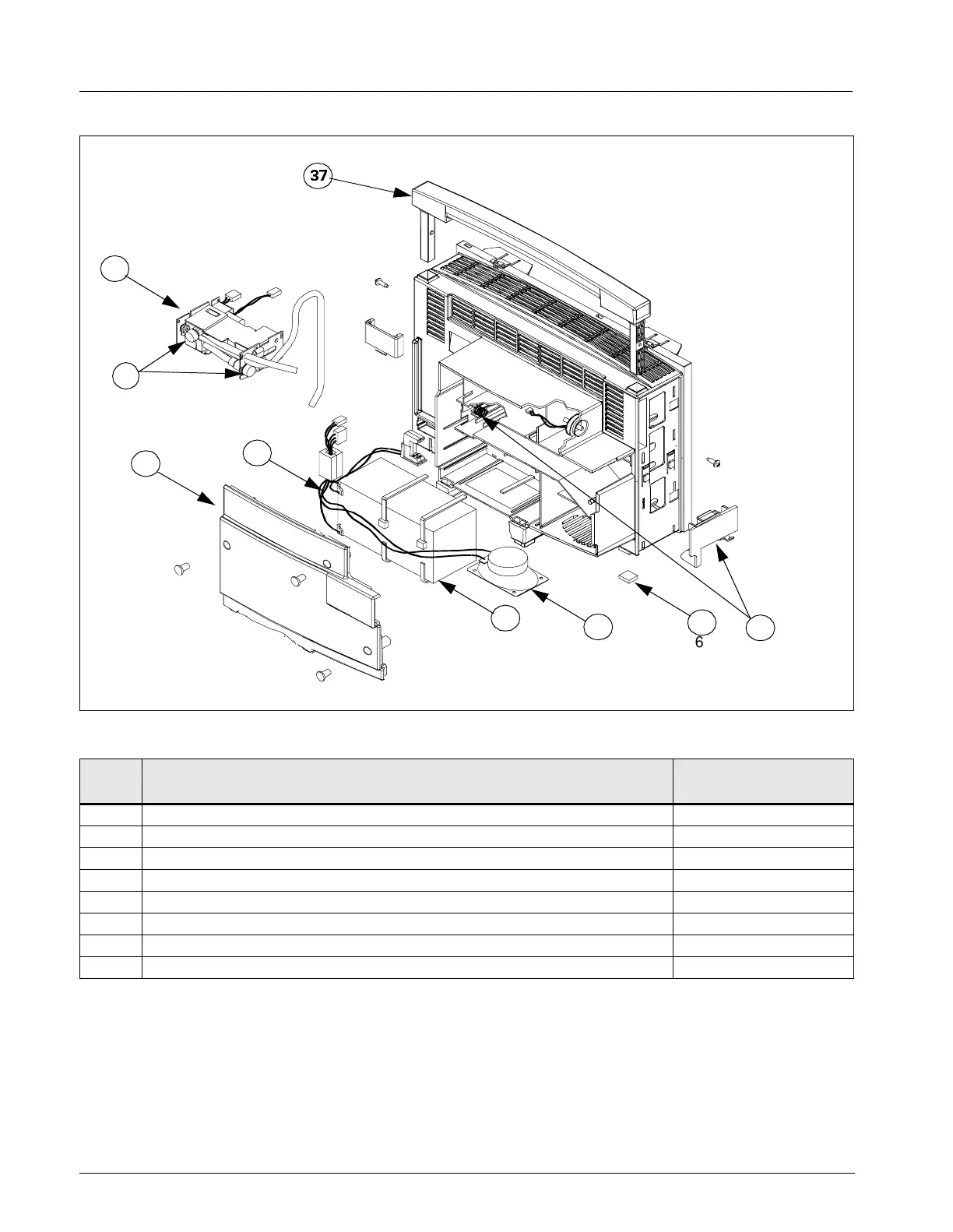

Figure A-3 Rear Housing - Replaceable Parts/Subassemblies
Table A-3 SC 7000 Rear Housing Subassembly - Replaceable Parts/Subassemblies
34
35
33
31
32
36
33

6 PL
38
Item
No.
Description
Siemens Article
Number
31 Main Battery 55 95 785 B2902
32 NBP Pump Subassembly w/ ty-wrap 55 94 499 E539U
33 Power Cable and Speaker Subassembly 55 88 269 E539U
34 Auxiliary Battery Compartment Door w/ Ejection Spring 55 89 648 E539U
35 Foot .40 SQ X .25 THK (Pkg -12) 43 11 374 E533U
36 Rear Cover w/ Screws 57 33 154 E539U
37 Monitor Handle w/ Handle Stops 57 33 030 E539U
38 NP Intake Filters 28 66 726 E516U
