Service Manual SC 7000 and SC 9000XL Patient Monitors
46 Siemens Medical Systems, EM-PCS, Danvers ASK-T898-03-7600
NOT A CONTROLLED DOCUMENT 7k9kXLSM.c3.CD_ROM.fm/04-99/kaupp
Caution
The cover has nubs (see
0
in illustration at left) that grip grooves
in the top and bottom sides of the shaft. Grasping the cover by
the top and bottom sides tends to increase the effectiveness of
the nubs. The increased force required to remove it can pull the
shaft completely out of the ejector mechanism, requiring depot
repair of the monitor.
3) Push ejector shaft back in, and remove PCMCIA card.
5.1.2 Installing Ejection Shaft
Cover
Use the procedure of Section 5.1.1, reversing the action in step 2, to install
PCMCIA card ejector shaft cover.
Note: The button cover is not centered on the shaft, and can be
installed in only one orientation.

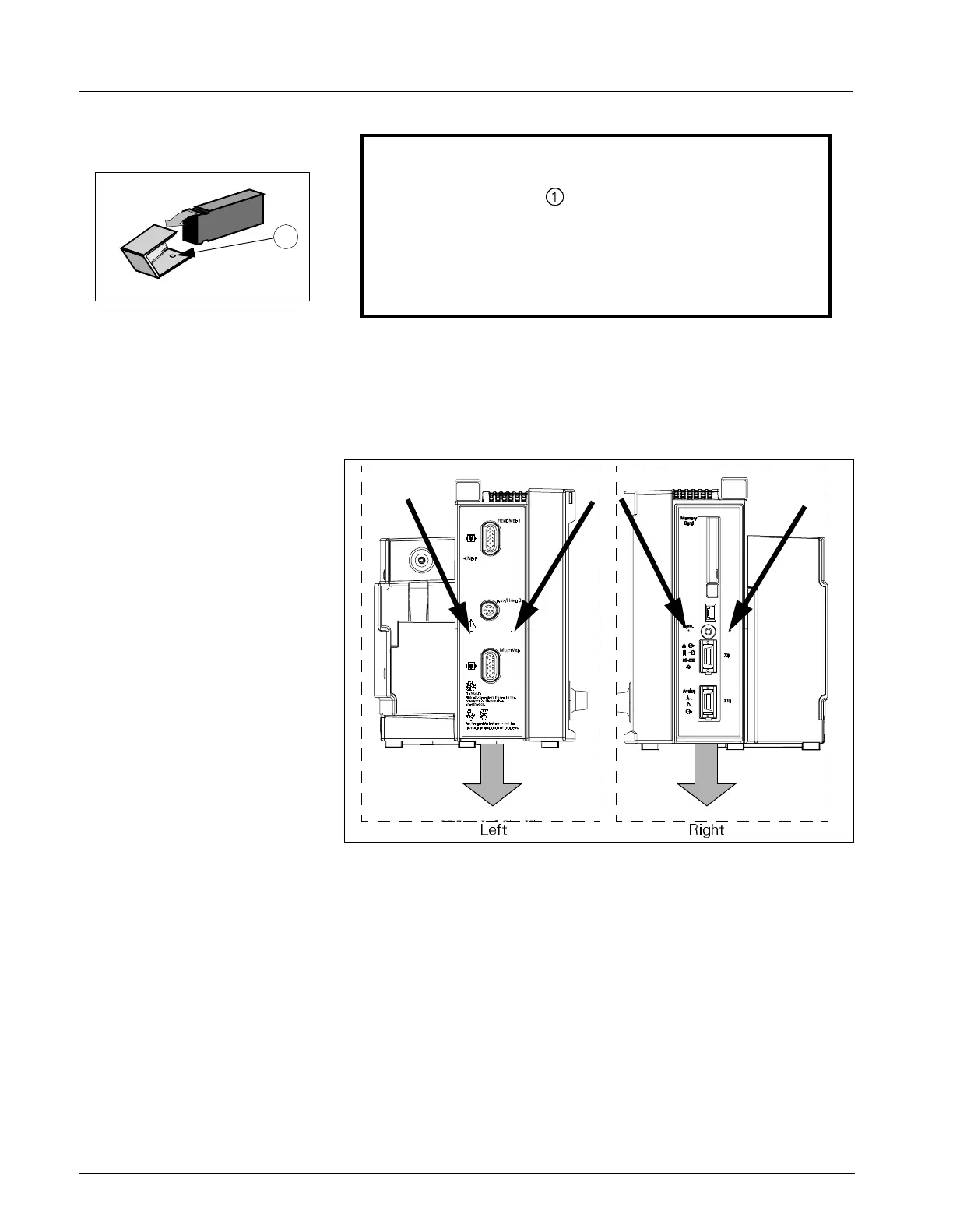

Figure 3-5Removing Left and Right Side Panels (SC 7000 left side panel
shown in illustration)
5.1.3 Removing Right Side Panel 1) Place monitor left side down on a smooth clean surface.
2) With PCMCIA card ejector shaft cover removed, press firmly on dots
below each side of sync output connector (see narrow arrows in Figure
3-5), to release latch.
3) While pressing on dots, slide panel downward (see broad arrows in
Figure 3-5) to release locking tabs, and then lift cover off of monitor.
5.1.4 Installing Right Side Panel 1) With monitor left side down on a smooth clean surface, position side
panel locking tabs into slots in monitor housing, and press inwards and
upwards to lock side panel to monitor.
2) Reinstall PCMCIA card ejector shaft. See Section 5.1.2.
5.1.5 Removing Left Side Panel 1) Place monitor right side down on a smooth clean surface.
/HIW 5LJKW
1
