2) Press firmly on dots just below each side of IBP connector port shown
in Figure 3-5 (SC 7000 side panel used in illustration), to release latch.
3) While pressing on dots, slide panel downward to release locking tabs,
and then lift cover off of monitor.
5.1.6 Installing Left Side Panel With monitor right side down on a smooth clean surface, position side panel
locking tabs into slots in monitor housing, and press inwards and upwards
to lock side panel to monitor.

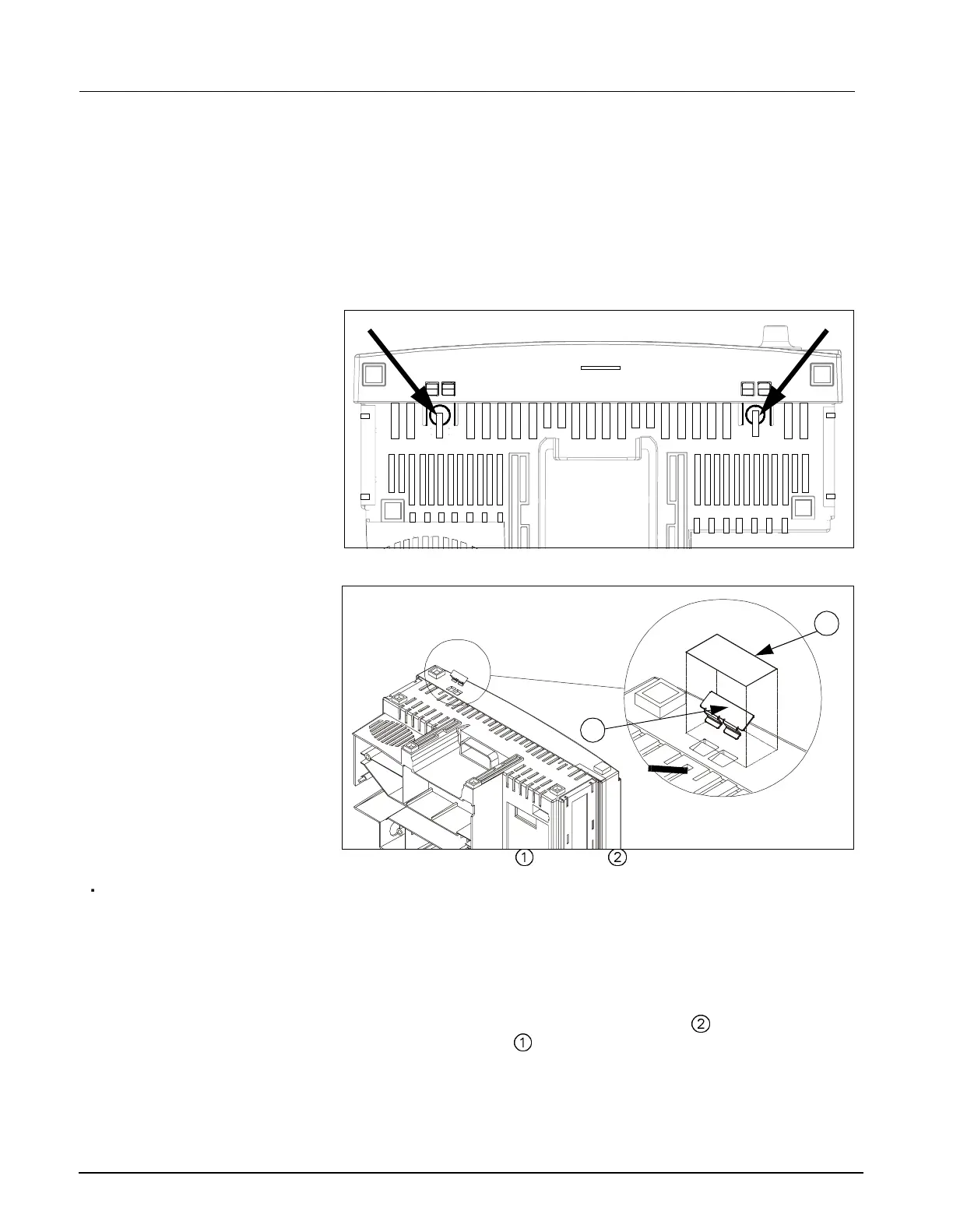

Figure 3-6 Bottom Release Tabs for Front Bezel Subassembly
Figure 3-7 Security Clip
0
and Tape
@
5.2 Separating Front Bezel
Subassembly and
Rear Housing
Subassembly
After left and right side panels have been removed, opening the monitor is
the process of separating the front bezel and rear housing subassemblies,
which are secured to each other by four locking tabs -- two on the top and
two on the bottom of the Front Bezel.
1) Turn the monitor backside down, with bottom of monitor facing you.
2) Remove tape and locking clips, if installed.
Note: On some monitors, peel-and-stick tape (
@
in Figure 3-7)
covers locking clips (
0
in Figure 3-7) that prevent release of bottom
release latches (one for each latch).
3) Press in firmly on thumb depressions on bottom of monitor to release
latches (see Figure 3-6), and slightly separate bottom of front bezel
subassembly from rear housing.
1
2
