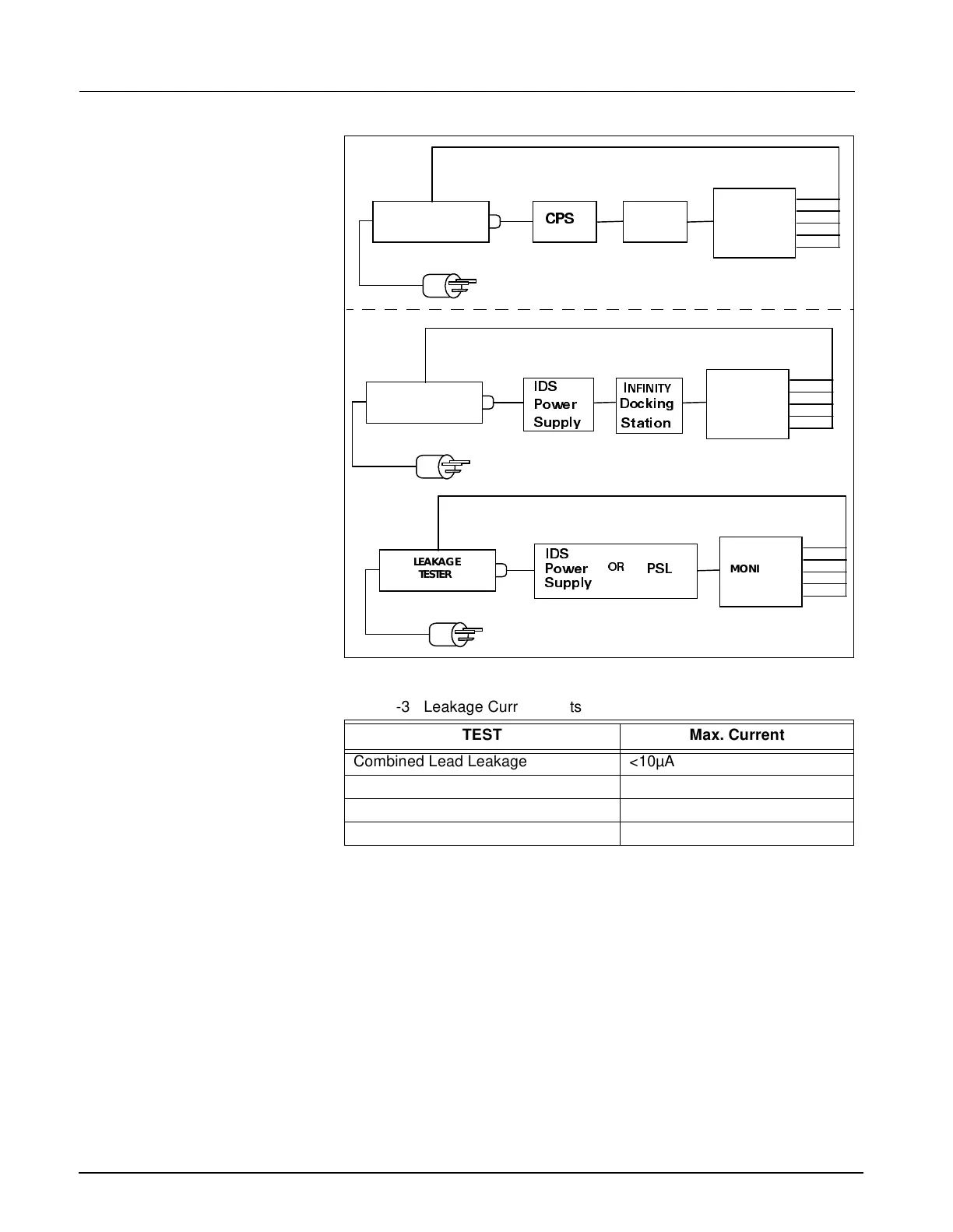

Figure 4-4 Leakage Current Test Setups
17Leakage Current
Tests
SC 7000 and SC 9000XL monitors are battery operated devices,
functionally grounded through CPS or IDS power supply when operated
from a docking station. Leakage current tests assure that under both
normal and fault conditions, any leakage current does not exceed values
given inTable 4-3.
1) Perform leakage current tests with monitor on a docking station, and
CPS, IDS Power Supply, or PSL plugged into leakage tester. See
Figure 4-4.
2) Follow leakage tester manufacturer’s instructions to measure each of
leakage currents given in Table 4-3, for each of following conditions:
• open ground
• reversed polarity
• open ground reversed polarity
LEAKAGE
TESTER
DOCKING
STATION
MONITOR
CPS
LEAKAGE
TESTER
DOCKING
STATION
MONITOR
CPS
,'6
3RZHU
6XSSO\
,'6
3RZHU
6XSSO\
&36
LEAKAGE
TESTER
DOCKING
STATION
MONITOR
CPS
,
1),1,7<
'RFNLQJ
6WDWLRQ
25
36/
6XSSO\
3RZHU
,'6
Table 4-3 Leakage Current Tests
TEST Max. Current
Combined Lead Leakage <10µA
Individual Lead Leakage <10µA
Paired Lead Leakage <10µA
Leakage with Line Voltage on Leads <50µA
