Siemens SC 7000 Service Manual

Service Manual SC 7000 and SC 9000XL Patient Monitors
110 Siemens Medical Systems, EM-PCS, Danvers ASK-T898-03-7600
NOT A CONTROLLED DOCUMENT
7k9kXLSM.apb.CD_ROM.fm/04-99/kaupp
17SC 9015 Remote Display

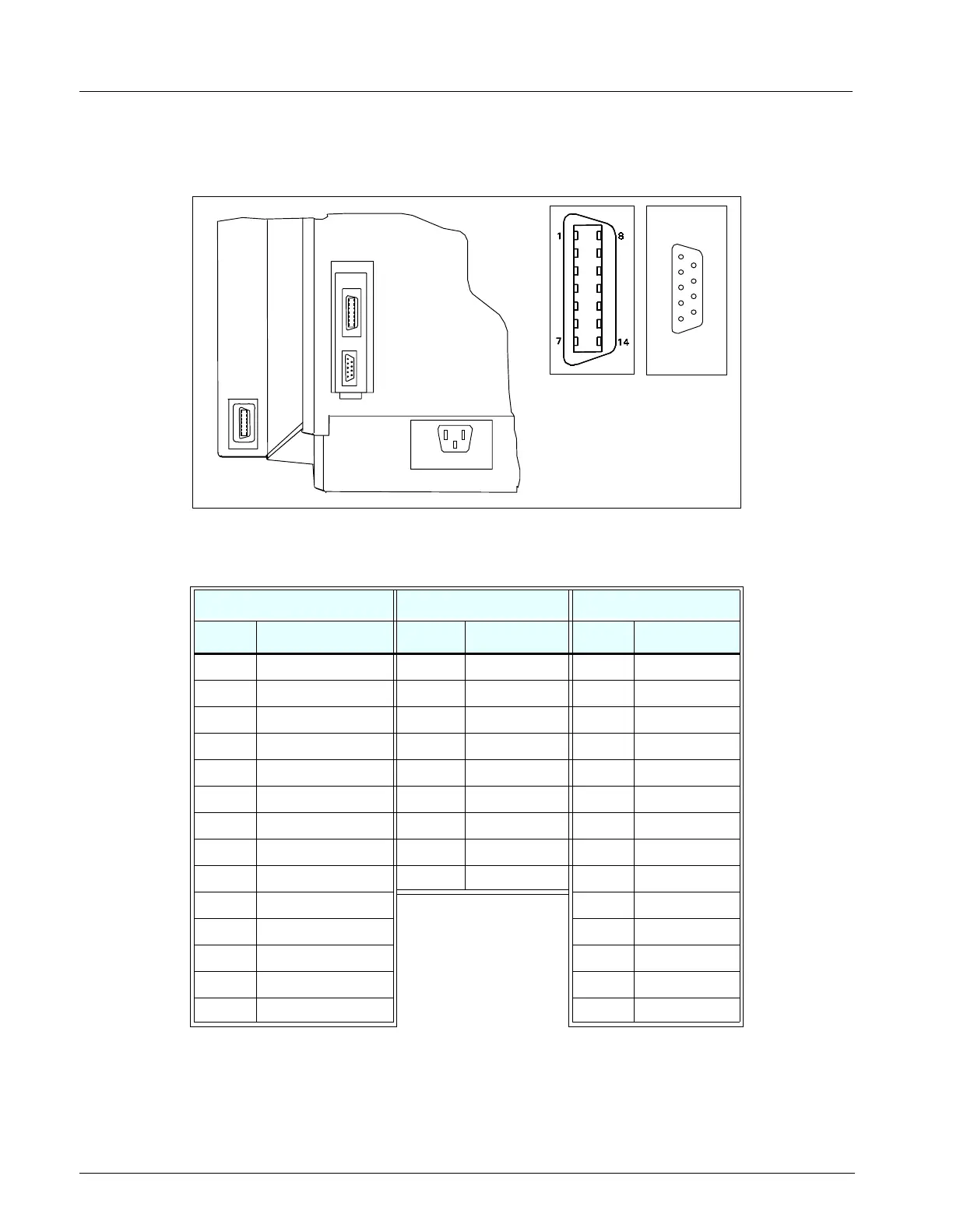

Figure B-20 SC 9015 Remote Display - Rear View (Refer to Table B-17.)
Table B-17 SC9015 Remote Display Connector Pins
Video/Audio/FrontPanel (X4) X-Terminal Video (X5) Remote Keyboard (X6)
Pin No. Signal Pin No. Signal Pin No. Signal
1 Ext Red 1 Ext Red 1 GND
2VGND 2VGND 2TxData COM
3 Ext Grn 3 Ext Grn 3 Rem Kbd Pwr
4VGND 4VGND 4
5 Ext Blu 5 Ext Blu 5
6VGND 6VGND 6
7 GND 7 GND 7
8H-Sync 8 H-Sync 8RxData COM
9V-Sync 9 V-Sync 9
10 Remote TxD 10 GND
11 Remote RxD 11
12 12
13 Remote Audio 13
14 Remote Audio Ret 14 GND
X6
X5
X4
1
5
6
9
X4, X6
(14 pin)
X5 (9 pin)
