8.1.4.3 CALOMAT 7

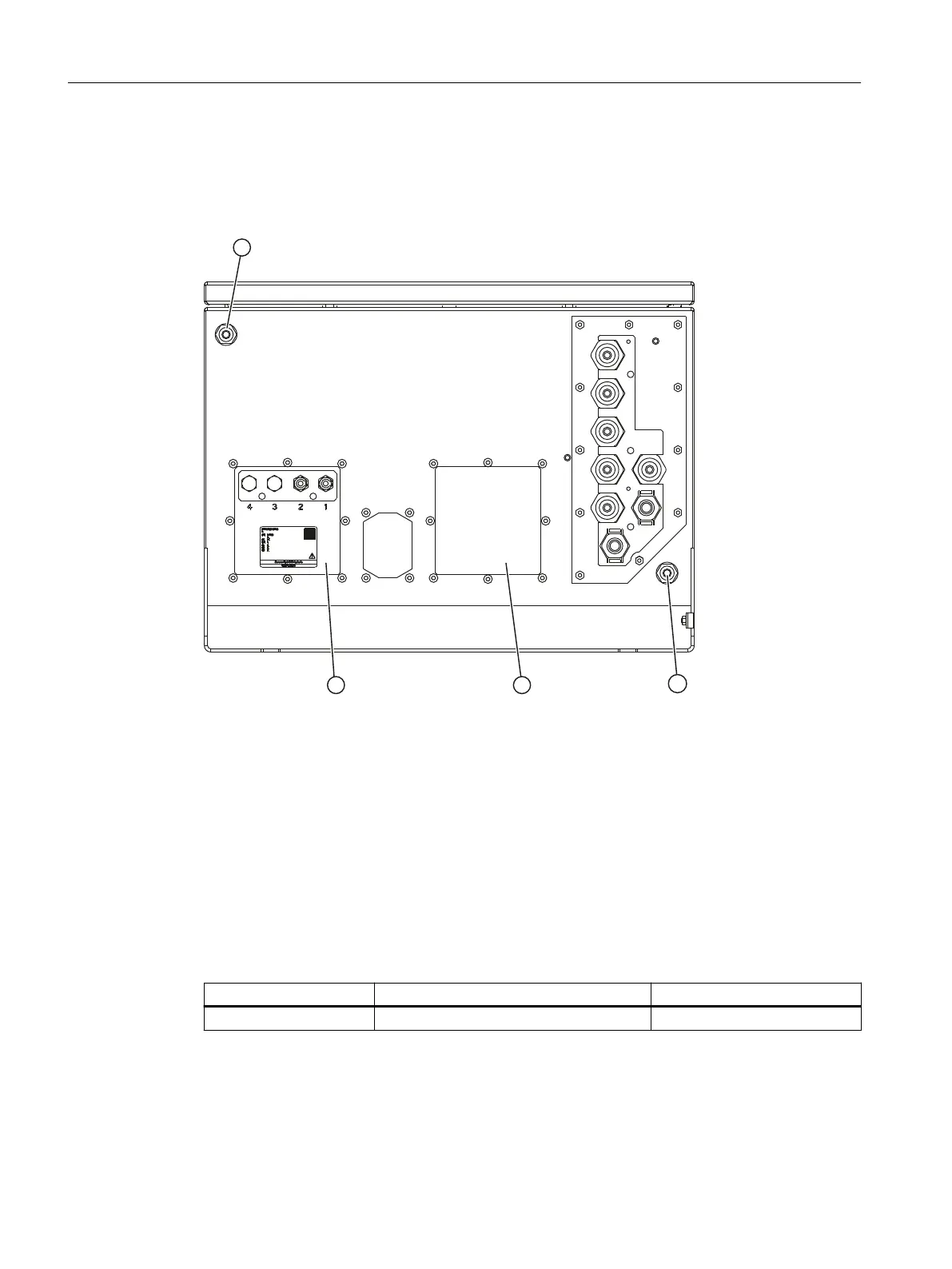

CALOMAT 7: Arrangement of the gas connections
① Purging gas inlet
② Purging gas outlet
③ Slot of analyzer module 2
④ Slot of analyzer module 1: CALOMAT 7
1 Sample gas inlet
2 Sample gas outlet
3 Not assigned
4 Not assigned
Figure8-6 CALOMAT 7 gas connections in the wall-mounted device, lower side
Design of the gas connections in CALOMAT 7
Gas connection Material External nozzle diameter
Sample gas Stainless steel material no. 1.4571 6mm
Connecting the device
8.1Gas connections
Wall-mounted device
100 Operating Instructions, 07/2023, A5E31930403-AB
