Siemens SIPROCESS GA700 Operating Instructions

8.1.5.3 Device with one ULTRAMAT 7 analyzer module, high-temperature version
Overview
Y
X
Z

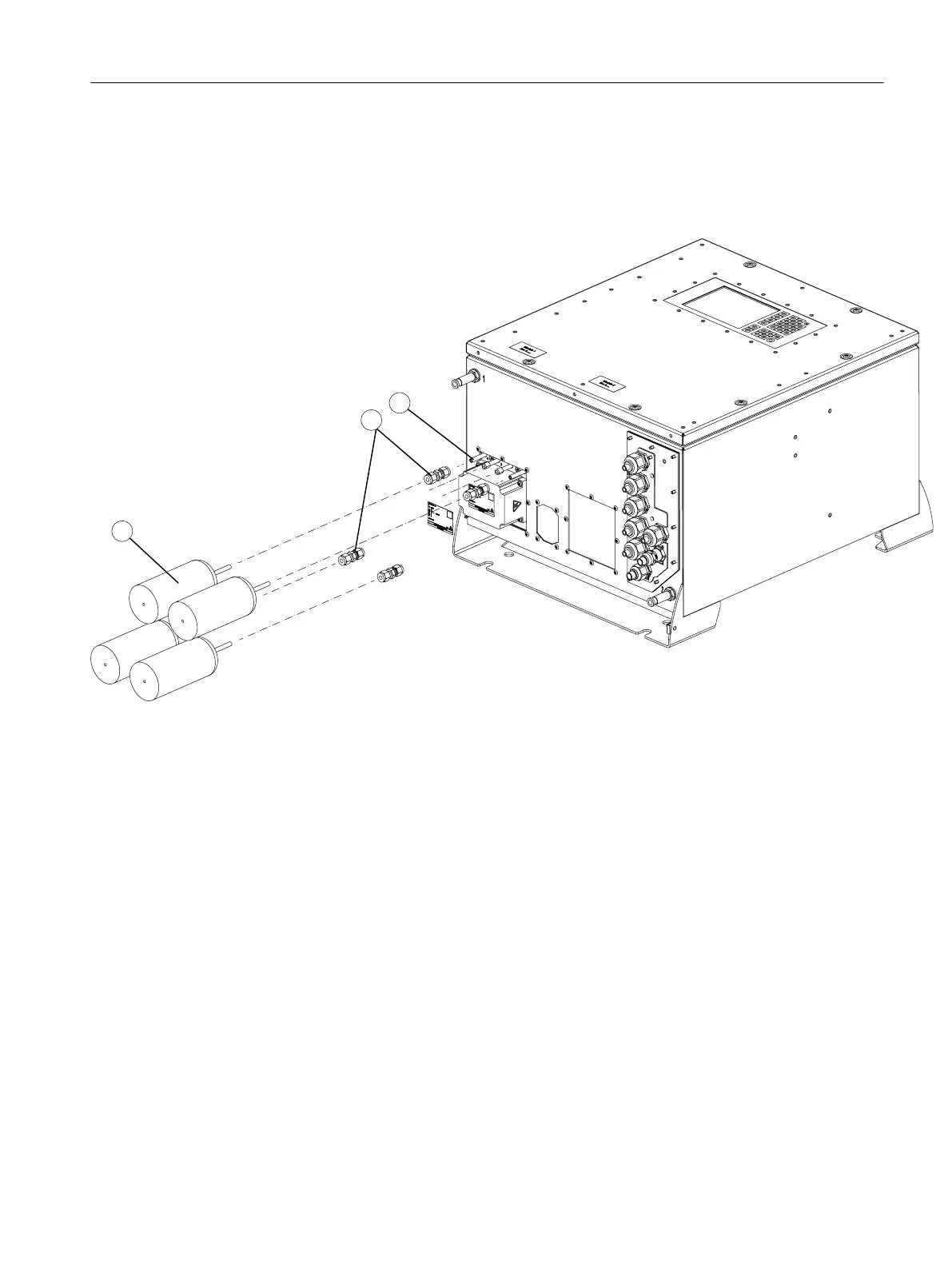

① Gas connections for sample and reference gas
② Cable glands clamping ring connections 6mm (4 units)
③ Heated external sample gas and reference gas lines (not included in scope of delivery)
Figure8-8 ULTRAMAT 7 high-temperature version, connecting gas
Procedure
1. Unscrew the union nuts of the cable glands ② and screw them into the gas inlets and
outlets ①. When tightening the union nuts at the gas connecting 󹪝ttings, ensure that you
counter properly.
2. Connect the heated sample gas and reference gas lines ③ with the associated gas inlets and
outlets. In the process, make sure that you insulate the cables properly.
3. Check whether the glands are connected 󹪝rmly and check the pipe connections for leaks.
Connecting the device
8.1Gas connections
Wall-mounted device
Operating Instructions, 07/2023, A5E31930403-AB 103
