7.5 Installing OXYMAT 7, high-temperature version
Overview







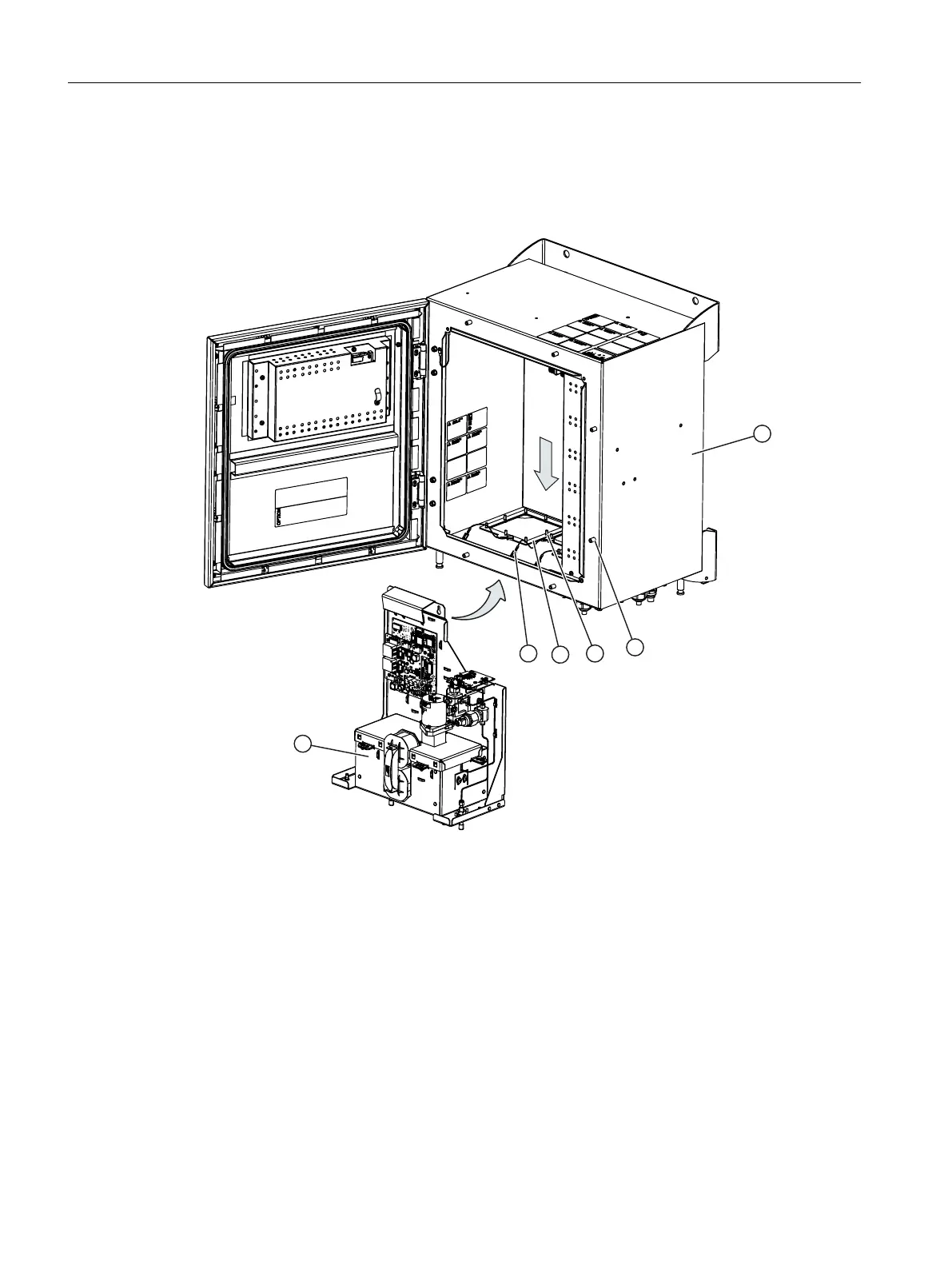

① Wall-mounted device ④ Flat seal
② Screw for door (6 units) ⑤ Equipotential bonding cable
③ Torx screw for housing 󹪞oor (8 units) ⑥ Analyzer module OXYMAT 7, high-temperature ver‐
sion
Figure7-4 Installing OXYMAT 7 high-temperature
Procedure
1. Isolate the wall-mounted device from power.
2. Loosen the six screws ② and open the door.
3. Remove the cables for equipotential bonding ⑤ at the blank plates of the two slots.
Note: The cable for equipotential bonding ⑤ is no longer required after the analyzer
module ⑥ is installed. See section "Installing analyzer modules, standard version (Page 68)".
Installing / removing and connecting analyzer and option modules
7.5Installing OXYMAT 7, high-temperature version
Wall-mounted device
70 Operating Instructions, 07/2023, A5E31930403-AB
