Siemens SIPROCESS GA700 Operating Instructions

To connect the reference gas supply and return lines use only such gas-contacted connecting
parts that are suitable for the connection and the reference gas.
The 󹪞ow rate of the reference gas can range from 0.1l/min to 1.5l/min. We recommend a
󹪞ow rate of approx. 0.5l/min.
For devices without 󹪞ow-type reference compartment, the reference cuvette is 󹪝lled with
nitrogen and hermitically sealed.
4.6 CALOMAT 7
4.6.1 Module design







① Sample gas inlet ⑤ Power supply connection
② Sample gas outlet ⑥ Connection for optional module 2.x
(OM2.x)
③ Not assigned ⑦ Connection for internal bus communication
(CAN)
④ Not assigned  

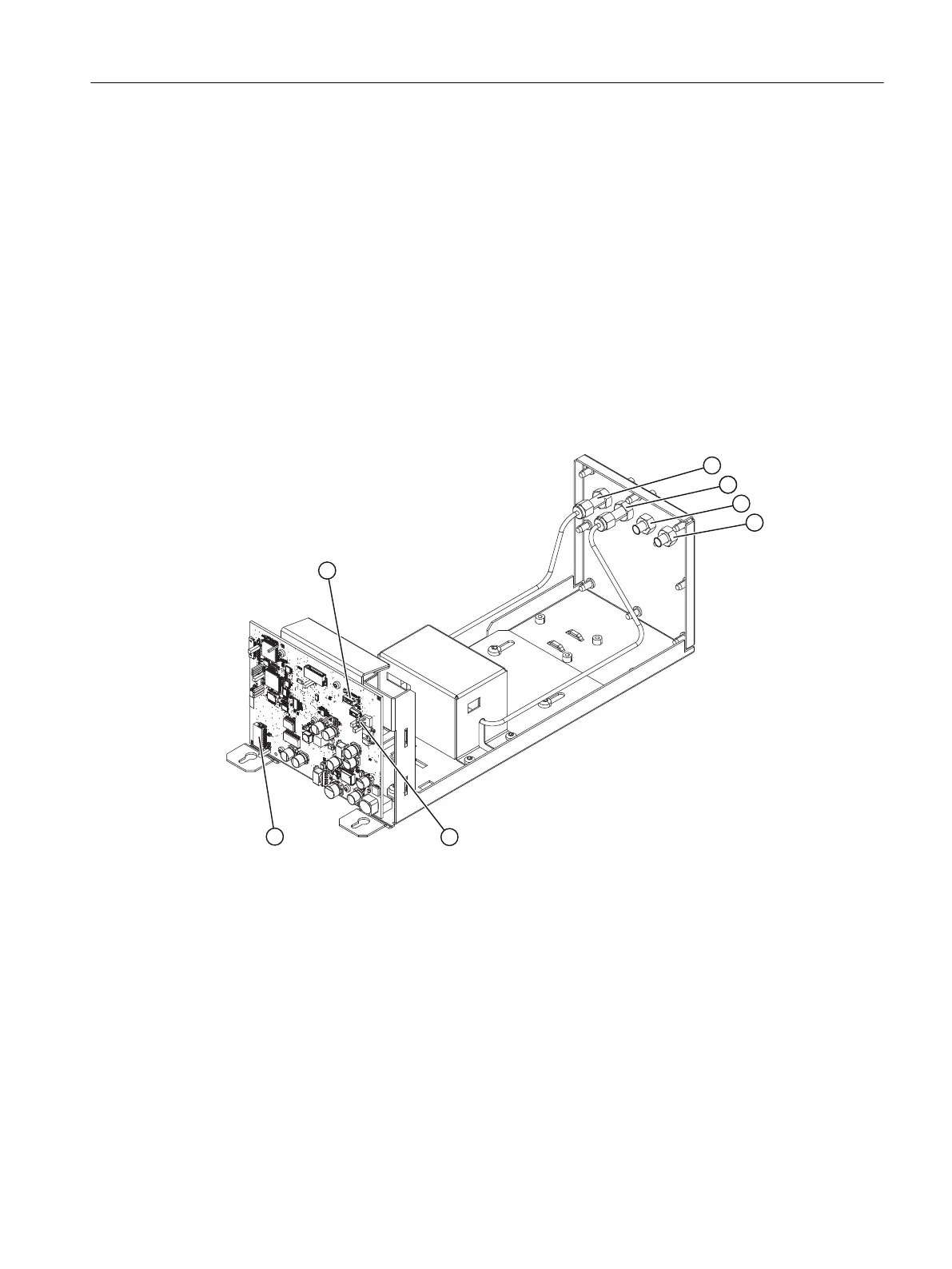

Figure4-12 Design of CALOMAT 7, sample gas path with pipes
Description
4.6CALOMAT 7
Wall-mounted device
Operating Instructions, 07/2023, A5E31930403-AB 37
