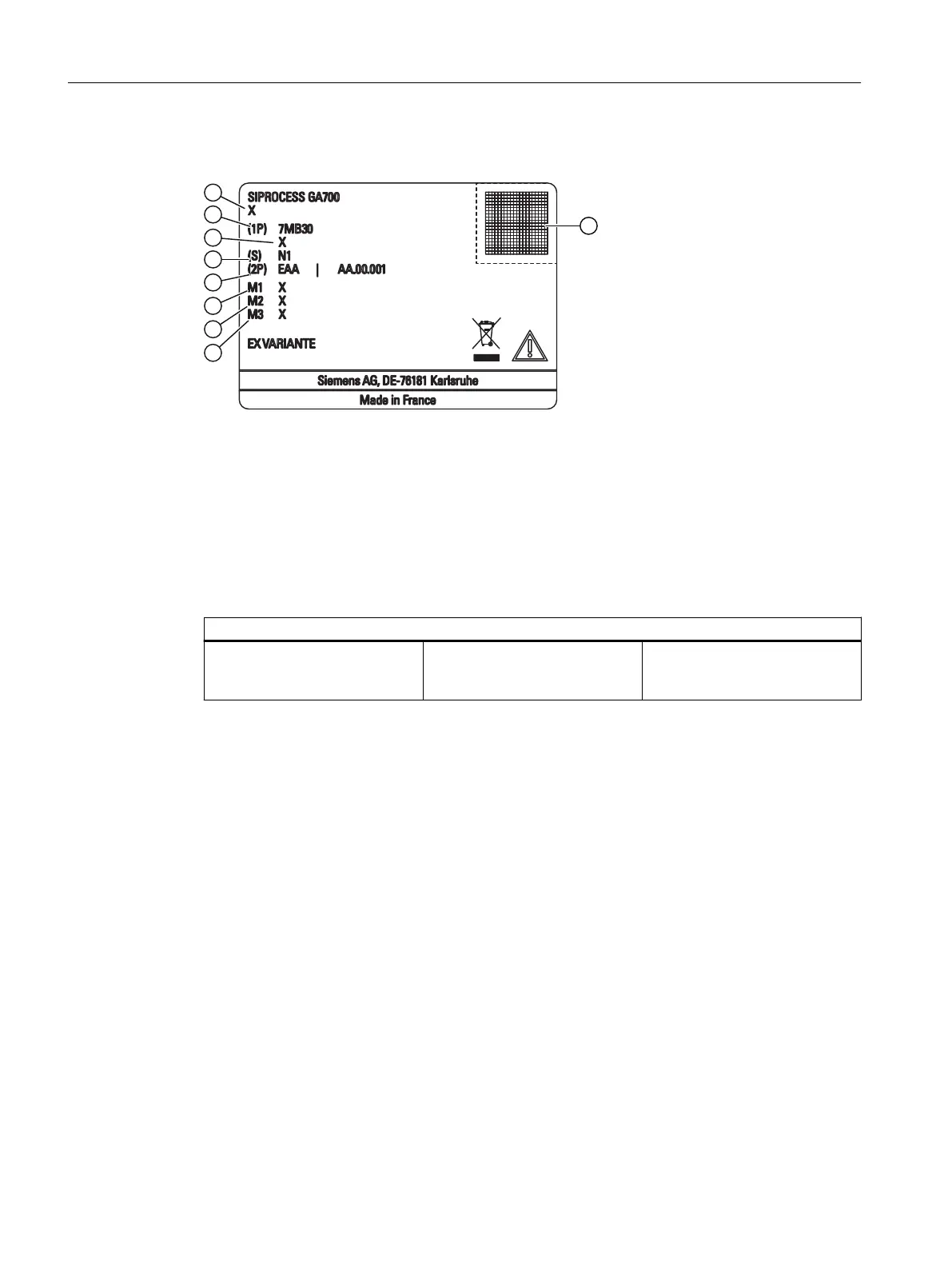

4.3.2 Design of module nameplate
① Module version ⑥ Measured component 1
② Article number ⑦ Measured component 2 optional (ULTRAMAT only)
③ Article number sux ⑧ Measured component 3 optional
④ Serial number ⑨ DataMatrix Code ECC 200
⑤ Revision status
Figure4-3 Module nameplate
The module nameplate with the article number and other important information is located
below the gas connections on the module exterior.
Measured component examples
M1 CO
2
0-500/5000 vpm M1 CO
2
0-500/5000 vpm
M2 CO
2
0-500/5000 vpm
M1 CO
2
0-500/5000 vpm
M2 ‑ ‑ ‑
M3 - - -
4.3.3 Date of manufacture
Year of manufacture
The date of manufacture is included as coded information in the serial number (see rating plate).
Details on the coding can be found in the following table.
Production year Code
1)
Month Code
1)
1950, 1970, 1990, 2010 A January 1
1951, 1971, 1991, 2011 B February 2
1952, 1972, 1992, 2012 C March 3
1953, 1973, 1993, 2013 D April 4
1954, 1974, 1994, 2014 E May 5
1955, 1975, 1995, 2015 F June 6
1956, 1976, 1996, 2016 H July 7
1957, 1977, 1997, 2017 J August 8
1958, 1978, 1998, 2018 K September 9
Description
4.3Device/module identication
Wall-mounted device
24 Operating Instructions, 07/2023, A5E31930403-AB
