7.8 Removing analyzer modules, standard version
Overview

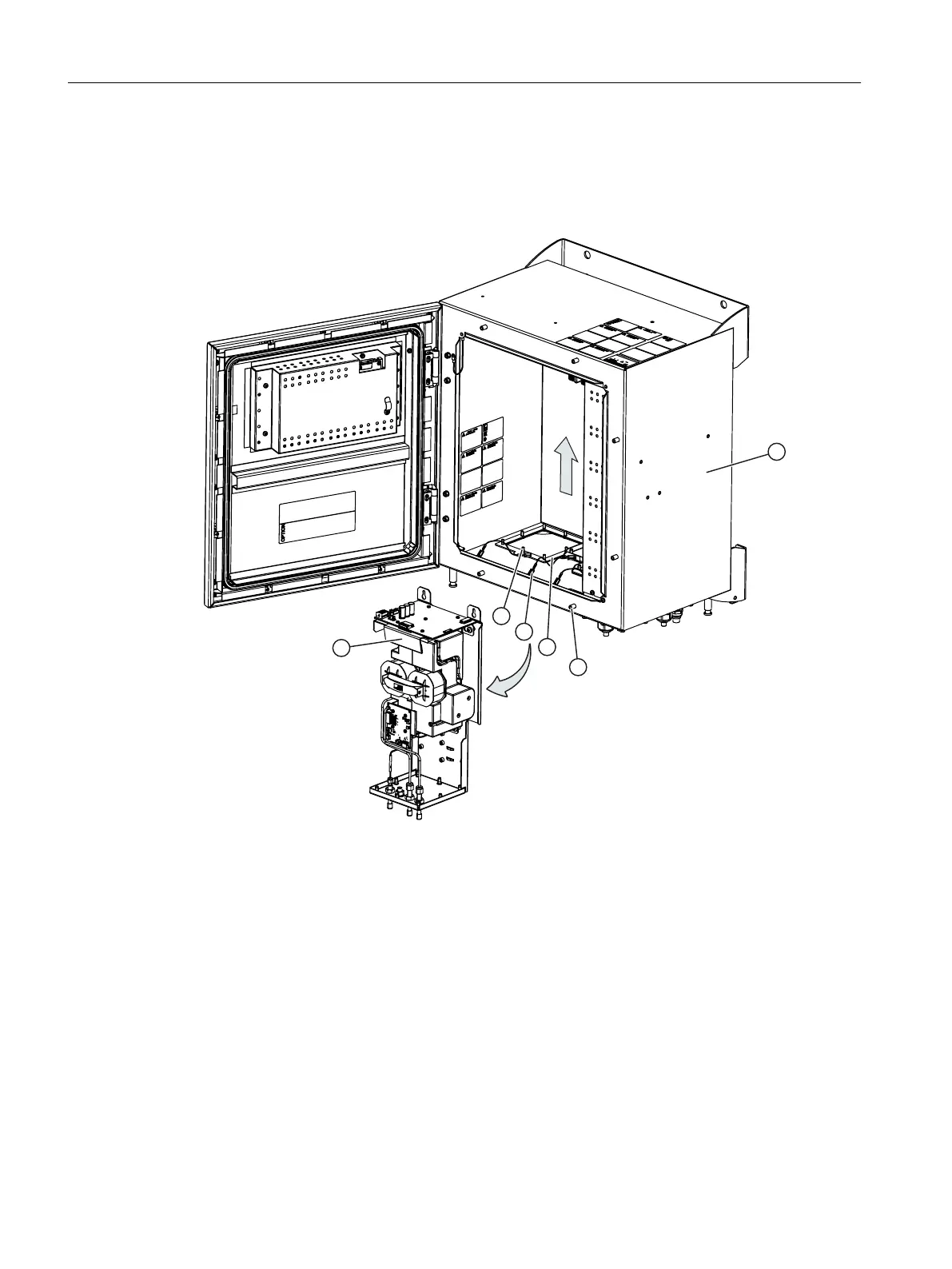

① Wall-mounted device ④ Equipotential bonding cable
② Screw for door (6 units) ⑤ Torx screw for housing oor (8 units)
③ Flat seal ⑥ OXYMAT 7 analyzer module
Figure7-9 Removing an analyzer module, example OXYMAT 7
Procedure
1. Isolate the wall-mounted device from power.
2. Loosen the six screws ② and open the door.
Installing / removing and connecting analyzer and option modules
7.8Removing analyzer modules, standard version
Wall-mounted device
76 Operating Instructions, 07/2023, A5E31930403-AB
