7. Fasten the signal cable in the cable gland ③. To do this, tighten the union nut with a torque
of 3Nm.
8. Insert the shielding plate ② in the wall-mounted device again and fasten it with screws.
9. Close the door of the wall-mounted device and tighten the six screws ① again with a torque
of 2Nm.

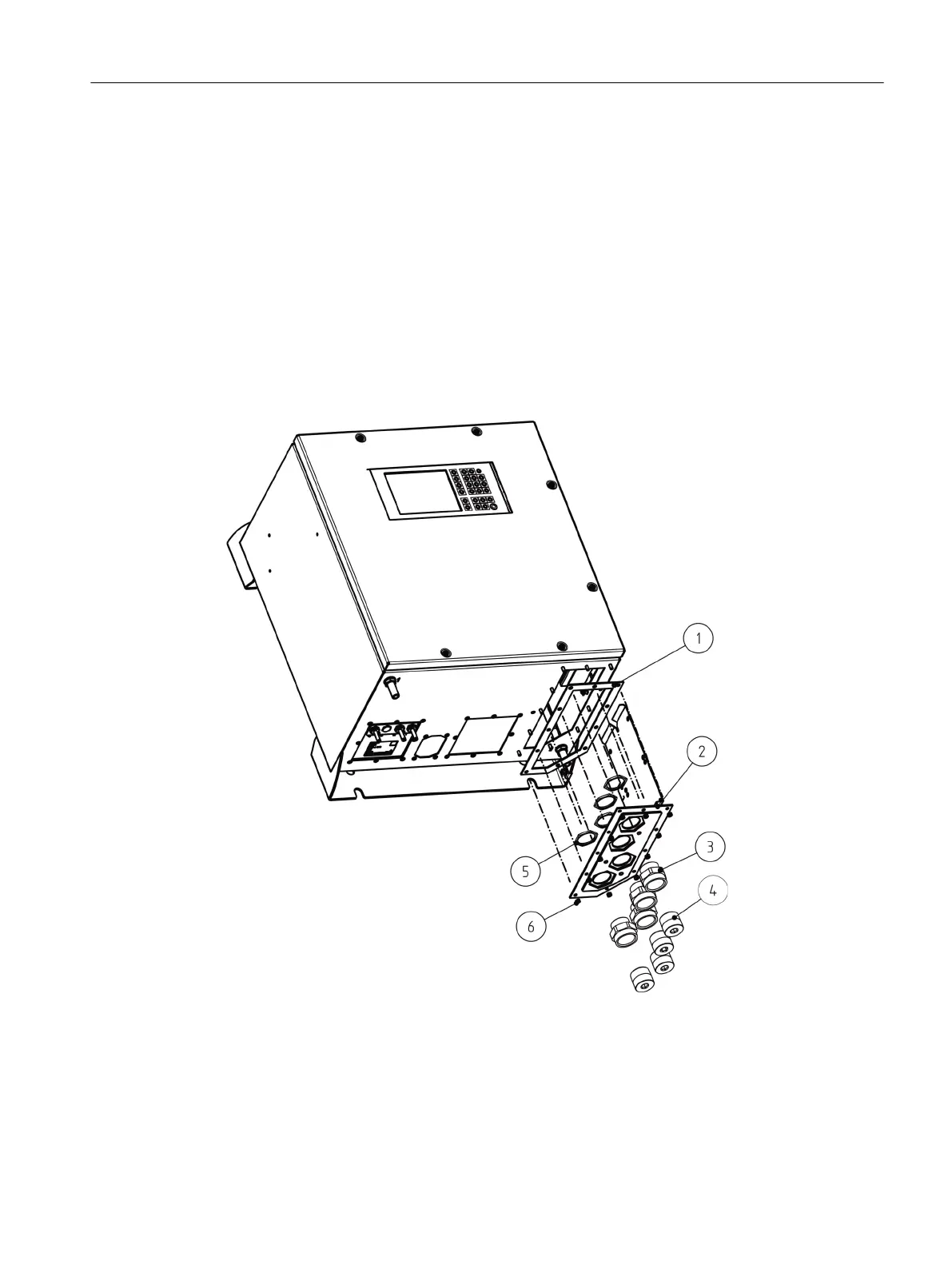

8.2.4.1 Overview conduit connectors
Overview conduit connectors
① Flat Gasket
② Clamp Connection Conduit
③ Adapter M32x1-NPT1
④ Blind Plug NPT1
⑤ Locknut M32
⑥ Hex Nut ISO 4032-M4 A2K
Connecting the device
8.2Electrical connections
Wall-mounted device
Operating Instructions, 07/2023, A5E31930403-AB 109
