Siemens SIPROCESS GA700 Operating Instructions

Combined operation
5
5.1 Slots for analyzer modules

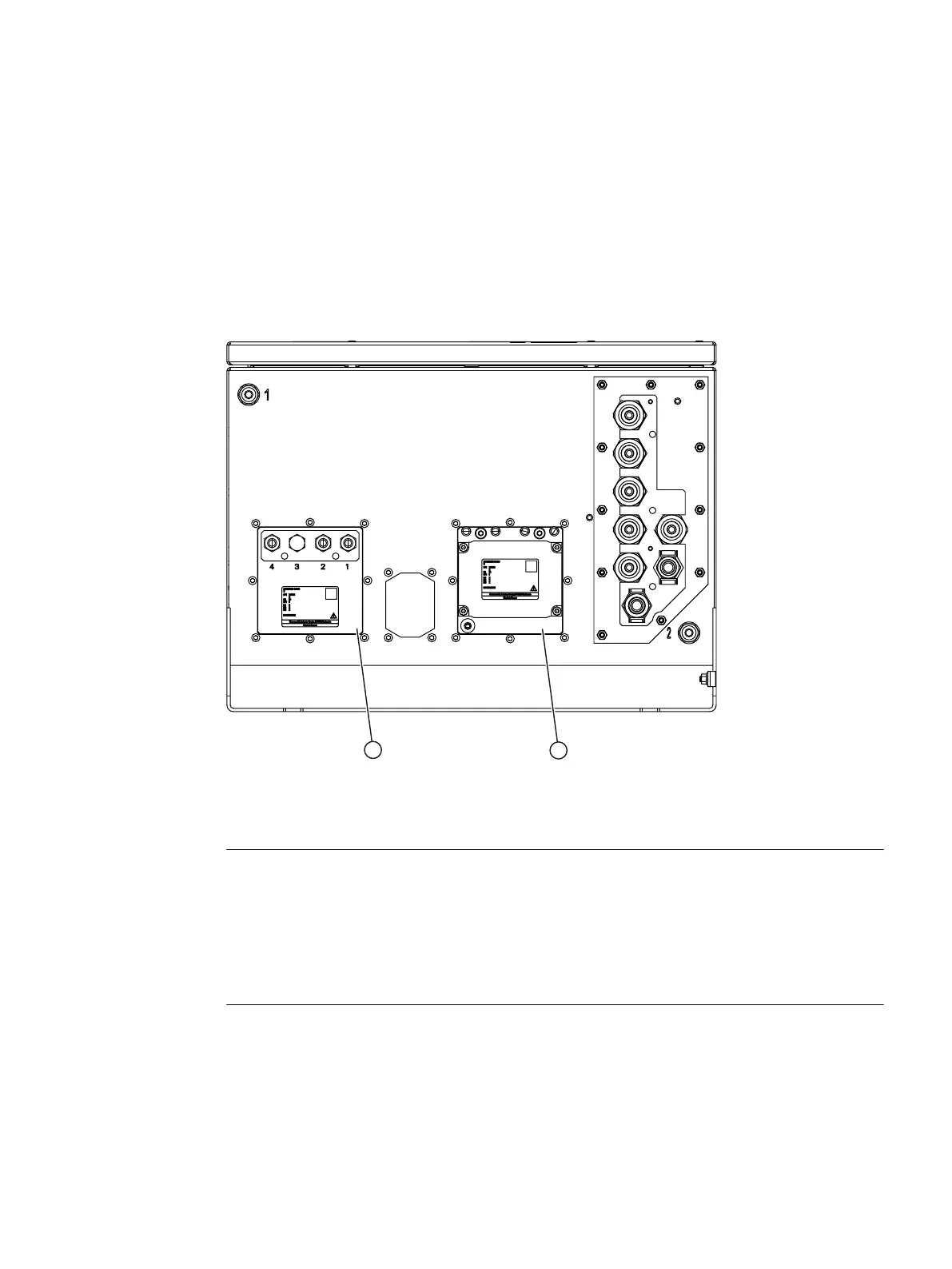

The following 󹪝gure shows the bottom of the wall-mounted device with two slots for the
analyzer modules.



3
① Slot1 (AM1), example OXYMAT 7
② Slot2 (AM2), example ULTRAMAT 7
Figure5-1 Slots for analyzer modules, bottom of wall-mounted device
Note
High temperature analyzer modules
The high-temperature analyzer modules OXYMAT 7 and ULTRAMAT 7 are designed solely for
wall-mounted devices and due to their size can only be mounted singly. A high-temperature
analyzer module covers both slots (AM1 and AM2). The layout of the gas connections for high-
temperature device versions is described in the section "Gas connections at the device
(Page95)".
Wall-mounted device
Operating Instructions, 07/2023, A5E31930403-AB 41
