Triumph Street Cup User Manual

Maintenance And Adjustment
100

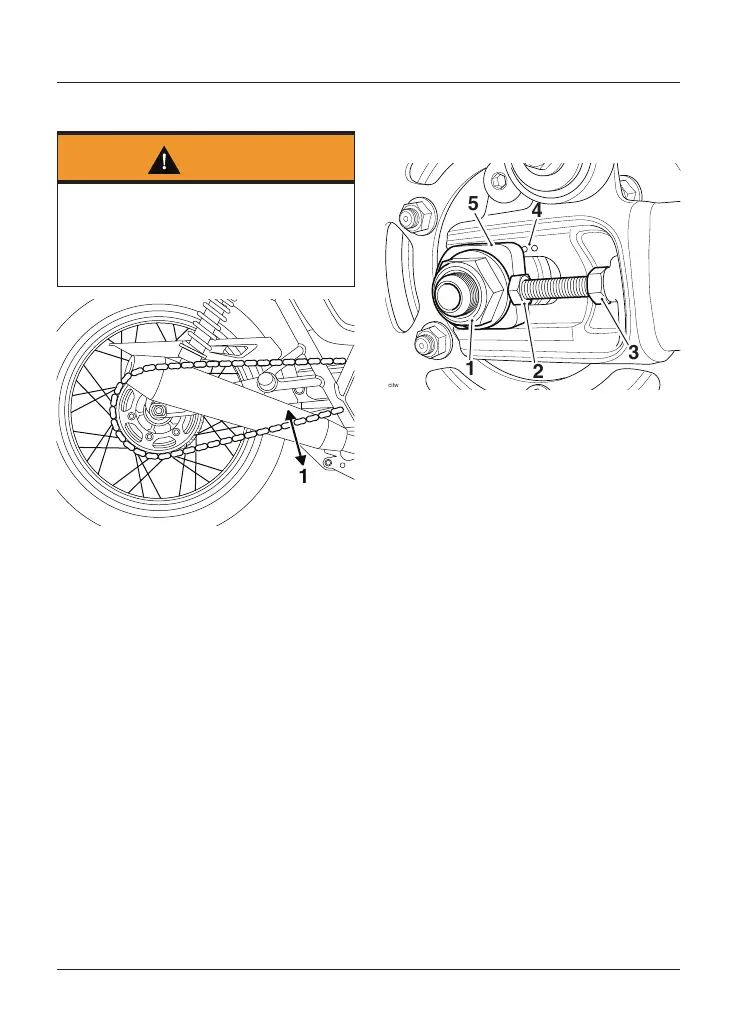

Chain Free Movement Inspection
Warning
Before starting work, make sure the
motorcycle is stabilised and adequately
supported. This will help prevent injury
to the operator or damage to the
motorcycle.
1
1. Maximum movement position
Place the motorcycle on a level surface
and hold it in an upright position with
no weight on it.
Rotate the rear wheel by pushing the
motorcycle to find the position where
the chain is tightest, and measure the
vertical movement of the chain midway
between the sprockets.
Chain Free Movement Adjustment
The vertical movement of the drive
chain must be in the range 20 ‑ 30 mm.
citw
4
1
2
3
5
1. Rear wheel spindle nut
2. Adjuster bolt
3. Adjuster bolt lock nut
4. Adjuster markings
5. Spindle adjuster
If the chain free movement
measurement is incorrect, adjustments
must be made as follows:
Loosen the wheel spindle nut.
Loosen the lock nuts on both the left
hand and right hand chain adjuster
bolts.
Move both adjusters by an equal
amount using the adjuster markings as
a guideline.
Turn the adjuster bolts clockwise to
increase chain free movement and
anticlockwise to reduce chain free
movement.
When the correct amount of chain free
movement has been set, push the wheel
into firm contact with the adjusters.
Make sure the same adjuster marking is
aligned with the spindle adjuster on
both sides of the swinging arm.

Triumph Street Cup Specifications

General

Engine Capacity	900 cc
Max Torque	80 Nm @ 3, 230 rpm
Fuel System	Multipoint sequential electronic fuel injection
Transmission	5-speed
Frame	Tubular steel cradle
Rear Suspension	KYB twin shocks with adjustable preload, 120 mm rear wheel travel
Front Brakes	Single 310 mm disc, Nissin 2-piston floating caliper, ABS
Dry Weight	200 kg
Bore x Stroke	84.6 x 80 mm
Compression Ratio	10.55:1
Final Drive	Chain
Clutch	Wet, multi-plate assist clutch
Front Tyre	100/90-18
Engine Type	Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel twin
Max Power	55 PS (54 hp) @ 5, 900 rpm
Exhaust	Brushed stainless steel twin silencers
Front Suspension	41mm forks
Rear Brakes	Single 255 mm disc, Nissin 2-piston floating caliper, ABS
Seat Height	780 mm
Fuel Tank Capacity	12 L
Swingarm	Twin-sided, tubular steel
Front Wheel	18 x 2.75 in
Rear Wheel	17 x 4.25 in
Instrument Display and Functions	Analogue speedometer, fuel gauge and gear position indicator
Width (Handlebars)	740 mm
Rake	25.5°
