Triumph Street Cup User Manual

Maintenance And Adjustment
105
Warning
If the ABS is not functioning, the brake
system will continue to function as a
standard non‑ABS braking system. In
this situation, braking too hard will
cause the wheels to lock resulting in
loss of control and an accident.
Reduce speed and do not continue to
ride for longer than is necessary with
the indicator light illuminated. Contact
an authorised Triumph dealer as soon
as possible to have the fault checked
and rectified.
Inspect the level of brake fluid in both
reservoirs and change the brake fluid in
accordance with scheduled maintenance
requirements. Use only DOT 4 fluid as
recommended in the Specification
section. The brake fluid must also be
changed if it becomes, or is suspected
of having become contaminated with
moisture or any other contaminants.
Note:
• A special tool is required to bleed
the ABS braking system. Contact
your authorised Triumph dealer
when the brake fluid needs
renewing or the hydraulic system
requires maintenance.
Front Brake Fluid Level Inspection
and Adjustment
Inspect and adjust the brake fluid level
as described below.
Street Cup, Street Twin and
Street Scrambler
c
j
t
t
2
1
3

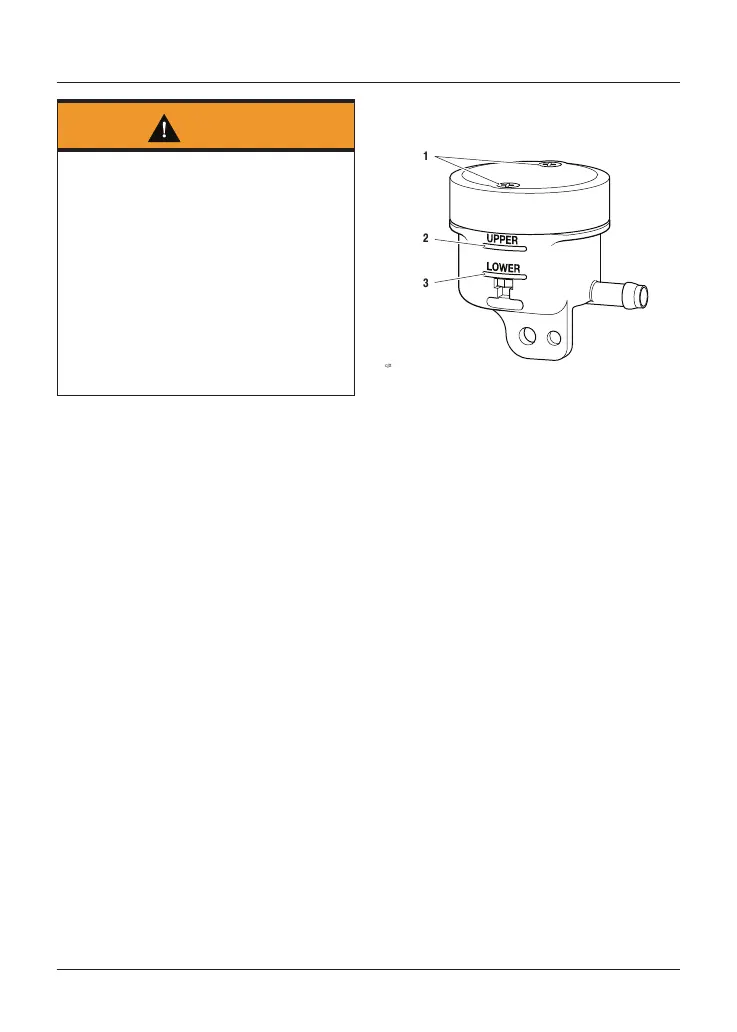

1. Cap screws
2. Upper level line, front brake
3. Lower level line, front brake
The brake fluid level in the reservoirs
must be kept between the upper and
lower level lines (reservoir held
horizontal).
To adjust the brake fluid level, release
the cap screws and remove the
reservoir cap and the diaphragm seal.
Fill the reservoir to the upper level line
using new DOT 4 from a sealed
container.
Refit the reservoir cap making sure that
the diaphragm seal is correctly
positioned between the cap and the
reservoir body.
Tighten the cap retaining screws to
1 Nm.

Triumph Street Cup Specifications

General

Engine Capacity	900 cc
Max Torque	80 Nm @ 3, 230 rpm
Fuel System	Multipoint sequential electronic fuel injection
Transmission	5-speed
Frame	Tubular steel cradle
Rear Suspension	KYB twin shocks with adjustable preload, 120 mm rear wheel travel
Front Brakes	Single 310 mm disc, Nissin 2-piston floating caliper, ABS
Dry Weight	200 kg
Bore x Stroke	84.6 x 80 mm
Compression Ratio	10.55:1
Final Drive	Chain
Clutch	Wet, multi-plate assist clutch
Front Tyre	100/90-18
Engine Type	Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel twin
Max Power	55 PS (54 hp) @ 5, 900 rpm
Exhaust	Brushed stainless steel twin silencers
Front Suspension	41mm forks
Rear Brakes	Single 255 mm disc, Nissin 2-piston floating caliper, ABS
Seat Height	780 mm
Fuel Tank Capacity	12 L
Swingarm	Twin-sided, tubular steel
Front Wheel	18 x 2.75 in
Rear Wheel	17 x 4.25 in
Instrument Display and Functions	Analogue speedometer, fuel gauge and gear position indicator
Width (Handlebars)	740 mm
Rake	25.5°
