Triumph Street Cup User Manual

Maintenance And Adjustment
130

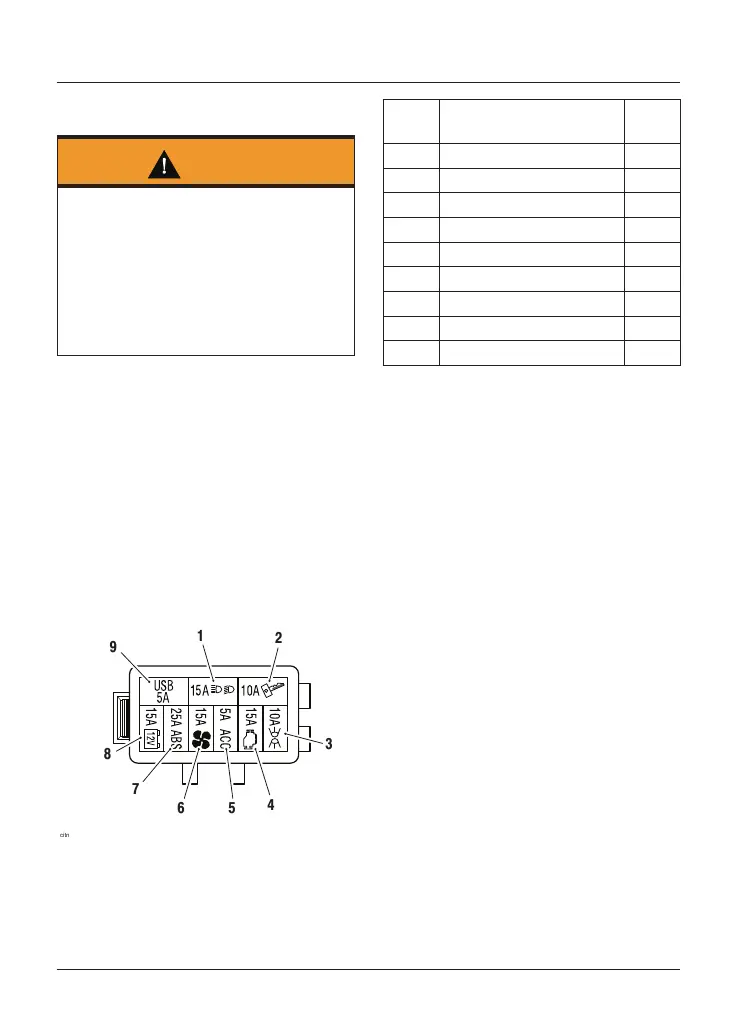

Fuse Box
Warning
Always replace blown fuses with new
ones of the correct rating (as specified
on the fuse box cover) and never use a
fuse of higher rating.
Use of an incorrect fuse could lead to
an electrical problem, resulting in
motorcycle damage, loss of motorcycle
control and an accident.
Note:
• A blown fuse is indicated when all
of the systems protected by that
fuse become inoperative. When
checking for a blown fuse, use the
table to establish which fuse has
blown.
The fuse box is located underneath the
seat.
To allow access to the fuse box, the seat
must be removed (see page 62).
c
i
t
n
9
1
2
3
4
5
6
7
8
Fuse Box
Position Circuit Protected Rating
(Amps)
1 Dip and high headlight beams 15
2 Ignition switch, starter circuit 10
3 Auxiliary lights 10
4 Engine management system 15
5 Accessory socket 5
6 Cooling fan 15
7 ABS 25
8 Instruments and alarm 15
9 USB port socket 5

Triumph Street Cup Specifications

General

Engine Capacity	900 cc
Max Torque	80 Nm @ 3, 230 rpm
Fuel System	Multipoint sequential electronic fuel injection
Transmission	5-speed
Frame	Tubular steel cradle
Rear Suspension	KYB twin shocks with adjustable preload, 120 mm rear wheel travel
Front Brakes	Single 310 mm disc, Nissin 2-piston floating caliper, ABS
Dry Weight	200 kg
Bore x Stroke	84.6 x 80 mm
Compression Ratio	10.55:1
Final Drive	Chain
Clutch	Wet, multi-plate assist clutch
Front Tyre	100/90-18
Engine Type	Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel twin
Max Power	55 PS (54 hp) @ 5, 900 rpm
Exhaust	Brushed stainless steel twin silencers
Front Suspension	41mm forks
Rear Brakes	Single 255 mm disc, Nissin 2-piston floating caliper, ABS
Seat Height	780 mm
Fuel Tank Capacity	12 L
Swingarm	Twin-sided, tubular steel
Front Wheel	18 x 2.75 in
Rear Wheel	17 x 4.25 in
Instrument Display and Functions	Analogue speedometer, fuel gauge and gear position indicator
Width (Handlebars)	740 mm
Rake	25.5°
