Triumph Street Cup User Manual

General Information
52
Low Battery Warning
If heated grips are fitted and are on
with the engine not running, over a
period of time, the battery voltage may
drop below 11.8 Volts and ‘LoBAtt’ is
then shown in the display screen for
three seconds.
If the heated grips are on and ‘LoBAtt’ is
shown, then the heated grips are
automatically switched off to prevent
further discharge of the battery. It is
not possible to resume heated grip
operation until the engine has been
running and the battery voltage has
increased above 11.8 Volts.
In the event of a fault, ‘HgrOFF’ is
shown in the display screen and the
heated grips are automatically switched
off. The heated grips can be switched
back on by:
• waiting 25 seconds then switch on
the heated grip, or
• turning the ignition switch to the
OFF position then back to the ON
position.
If ‘HgrOFF’ remains shown in the display
screen, then contact an authorised
Triumph dealer to have the fault
checked and rectified.

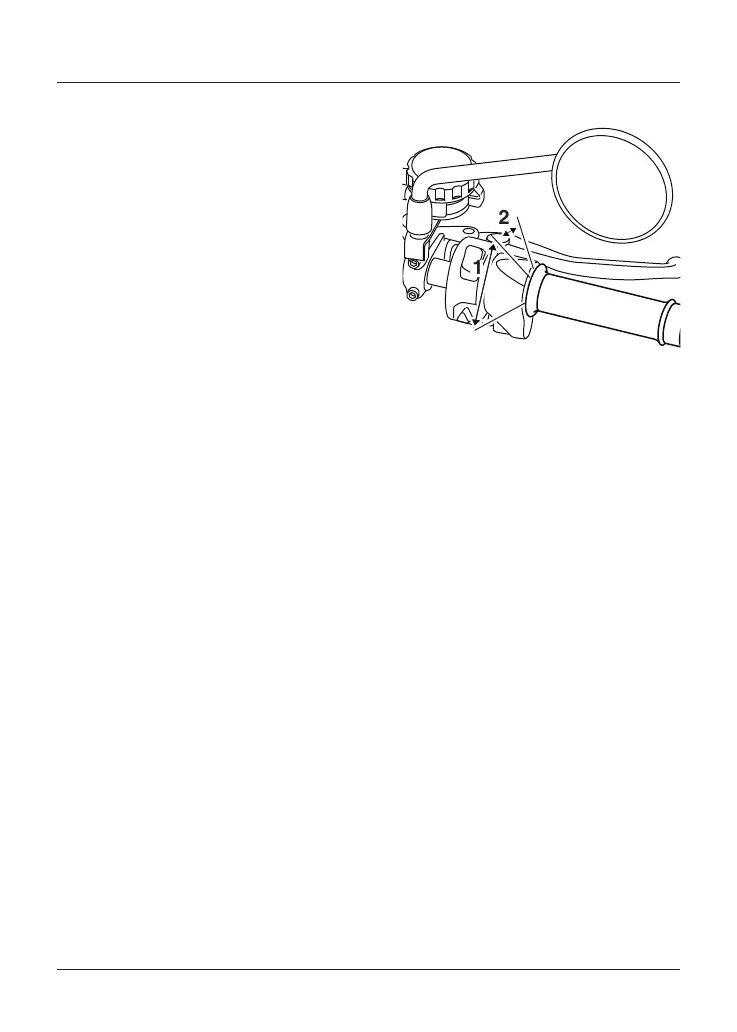

Throttle Control
2
1
1. Throttle open position
2. Throttle closed position
All models have an electronic throttle
twist grip to open and close the
throttles via the engine control unit.
There are no direct‑acting cables in the
system.
The throttle grip has a resistive feel to it
as it is rolled rearwards to open the
throttles. When the grip is released it
will return to the throttle closed position
by its internal return spring and the
throttles will close.

Triumph Street Cup Specifications

General

Engine Capacity	900 cc
Max Torque	80 Nm @ 3, 230 rpm
Fuel System	Multipoint sequential electronic fuel injection
Transmission	5-speed
Frame	Tubular steel cradle
Rear Suspension	KYB twin shocks with adjustable preload, 120 mm rear wheel travel
Front Brakes	Single 310 mm disc, Nissin 2-piston floating caliper, ABS
Dry Weight	200 kg
Bore x Stroke	84.6 x 80 mm
Compression Ratio	10.55:1
Final Drive	Chain
Clutch	Wet, multi-plate assist clutch
Front Tyre	100/90-18
Engine Type	Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel twin
Max Power	55 PS (54 hp) @ 5, 900 rpm
Exhaust	Brushed stainless steel twin silencers
Front Suspension	41mm forks
Rear Brakes	Single 255 mm disc, Nissin 2-piston floating caliper, ABS
Seat Height	780 mm
Fuel Tank Capacity	12 L
Swingarm	Twin-sided, tubular steel
Front Wheel	18 x 2.75 in
Rear Wheel	17 x 4.25 in
Instrument Display and Functions	Analogue speedometer, fuel gauge and gear position indicator
Width (Handlebars)	740 mm
Rake	25.5°
